CANopen Objects Table

4 CANopen Objects Table
The CANopen Objects Table allows you to access and modify the values of the
CAN objects.

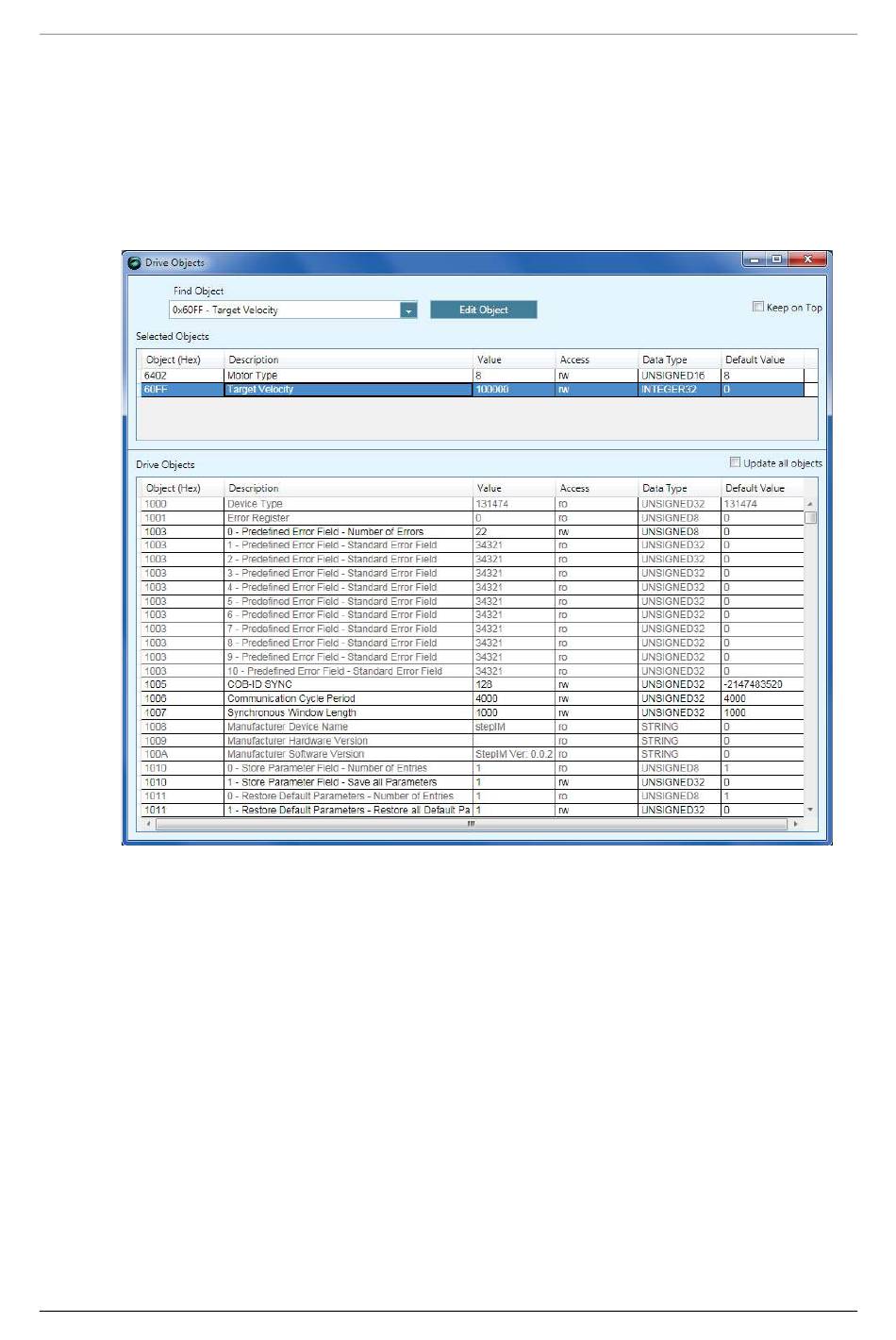

Figure 4-1.
The table is a floating screen. It remains open and accessible even when other
task screens are in use.
Note: The Objects Table screen closes automatically if the active drive is
switched to another drive.
To access an object, start typing in the Find Object field. As you begin typing
an object number or name, a list of possible matches appear.
Click on the object you want to modify and click Edit Object. The object is
copied to the Selected Objects table.
Click on the object's Value field to modify the value. An object in gray (text/cell)
is read only and cannot be manipulated.
Right-click on the Selected Objects table allows you to delete a row, or the
entire table.
You can also scroll through the entire list of Drive Objects and manipulate
values directly within that table.
