Inversion Inverts the polarity of a digital input. Select the option to invert
9.2

Digital Outputs

The Digital Outputs pane in the I/Os screen allows you to configure
functionality and polarity of the digital outputs, and to monitor the state of the
digital outputs.
State A graphic element that toggles between green and red to reflect the
on or off state of the actual output.
Name Identifies the specific output.

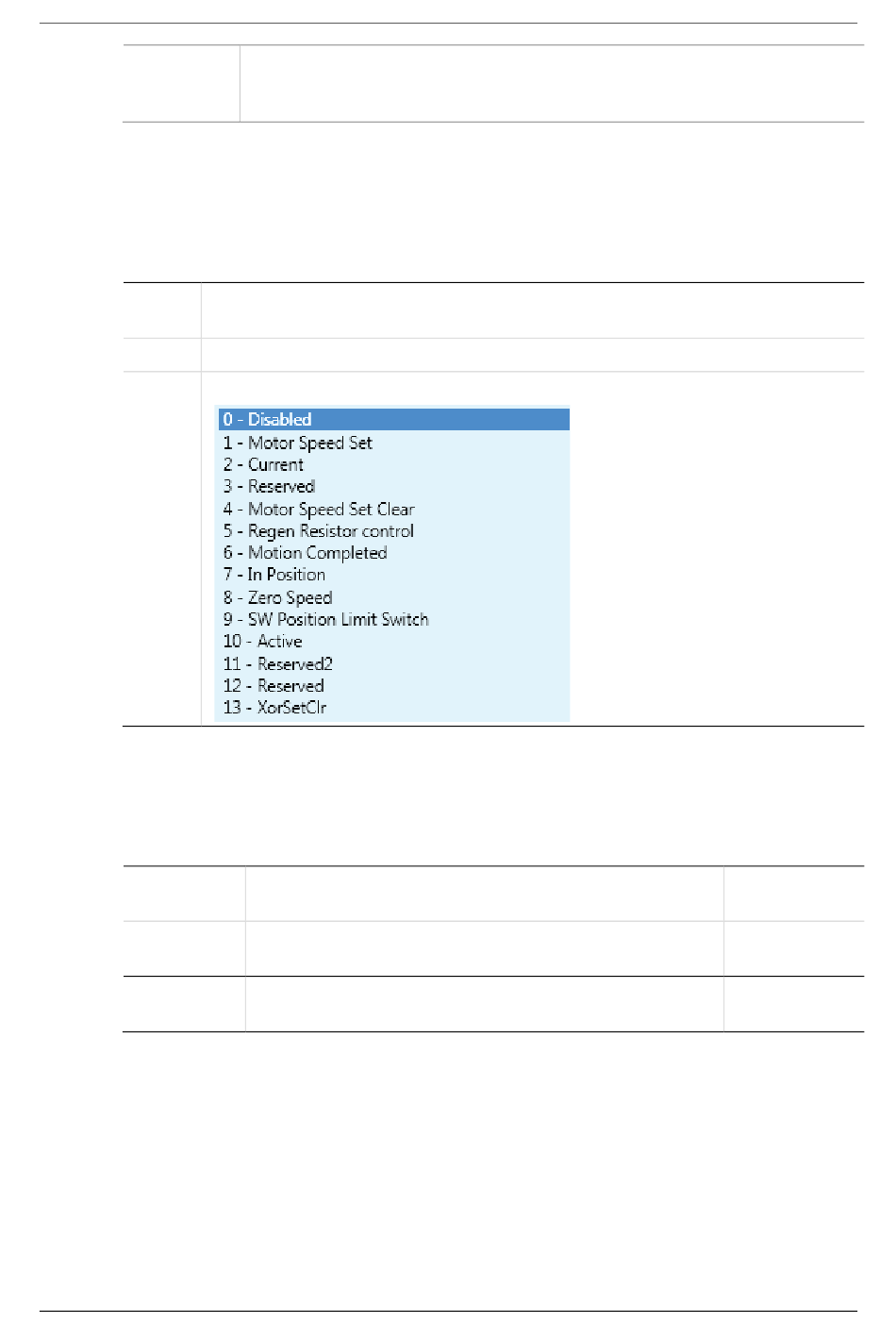

Mode Defines the condition that will activate a specified digital output.
9.3

Analog Input

The Analog Input 1 pane in the I/Os screen allows you to set the analog input
properties and to monitor the input state.
Analog
Offset
Analog
Input
Set to
Zero
ServoStudio Reference Manual
the polarity. As a result of inversion, the LED graphic in the
software immediately changes color.
The DC voltage offset on the analog input.
The voltage at the analog input. Read only.
Causes the value of the analog input signal to
become 0 by modifying the analog offset value.
Inputs/Outputs
Object 20F6h
Object 20F2h
23
