Schematics
ServoStudio uses schematic diagrams in many of the configuration and tuning
screens to help you visualize and correctly set values for required parameters.
Hover over a parameter field to view its description and CANopen object name.

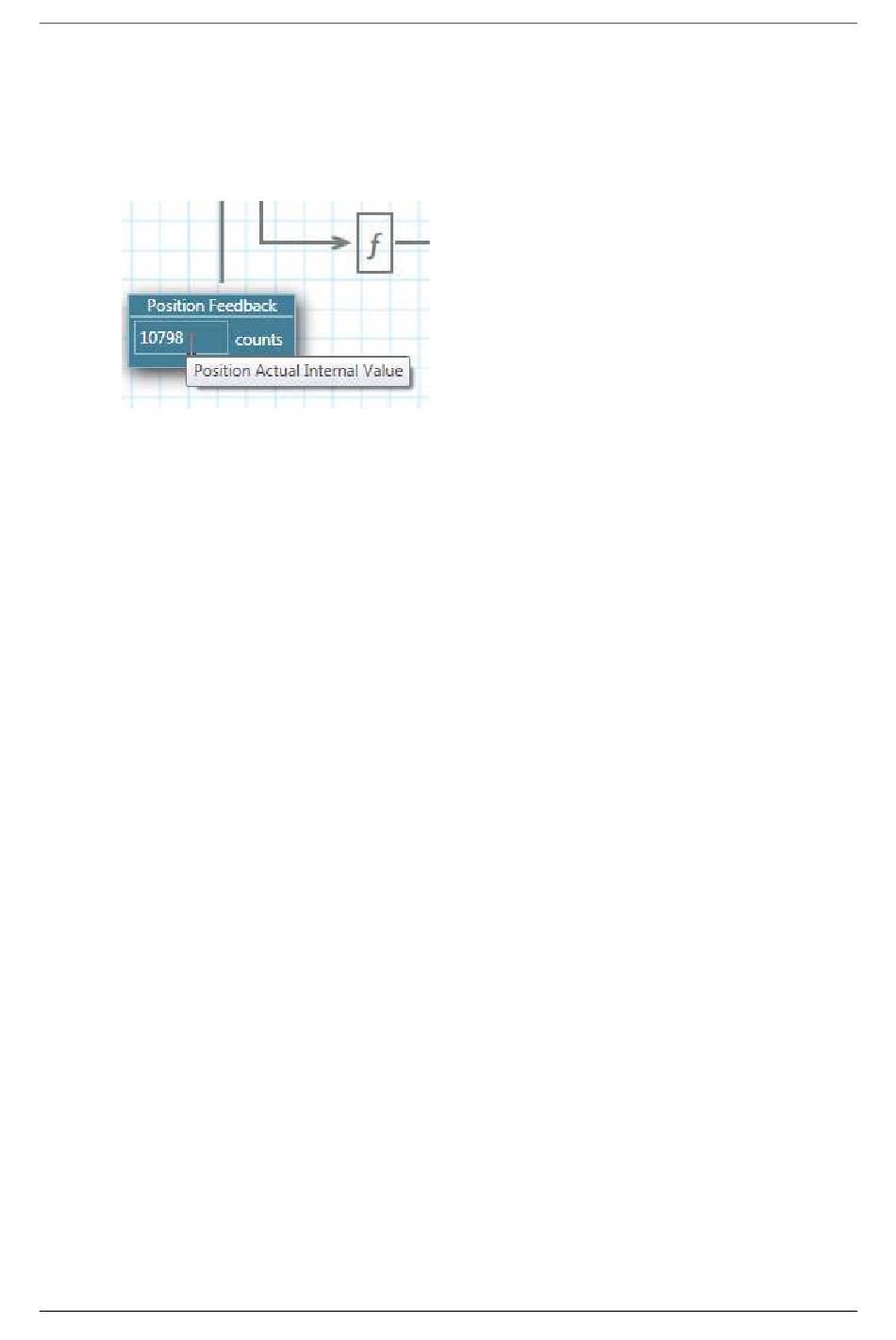

Figure 3-3.
Some of the fields in these screens are read-only. Their values are entered
automatically according to the motor defined in the Motor screen and/or settings
defined elsewhere in the software.
Other fields in these schematic screens are configurable (read/write).
After entering or modifying a value, press Enter to send the value to the drive
RAM.
ServoStudio Reference Manual
Schematic Tooltip
Software Interface Elements
13
