Install Individual Fans

To obtain a replacement fan, contact customer support.
Replacing the fan is the reverse process as removing it.

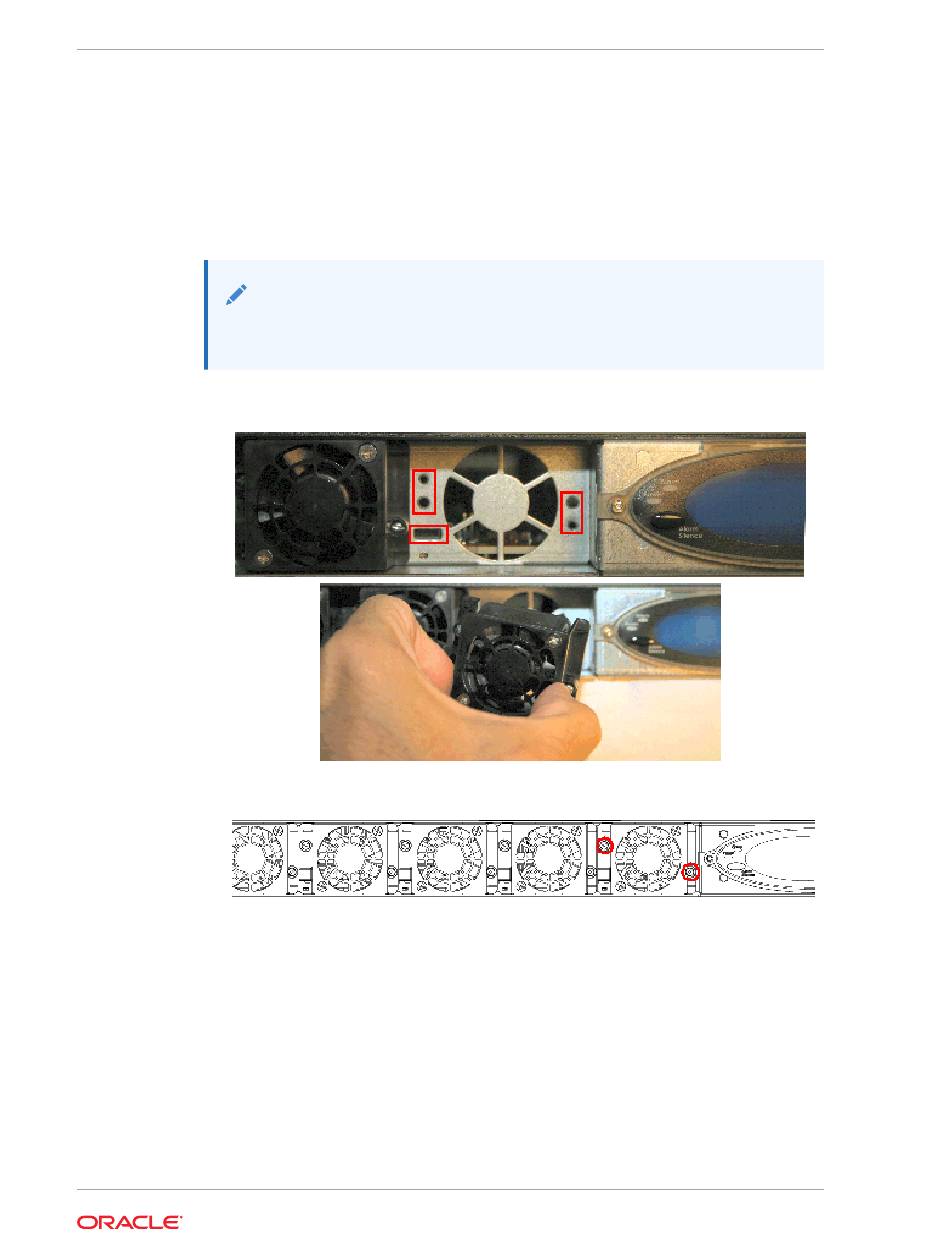

To install a fan:
Note:
The power connector should be on the lower side of the module when
inserted into the Acme Packet 4600 chassis.
Carefully align the pins on the back of the fan with the holes in the chassis
1.
midplane and install the fan into the slot.
Using a small bladed screwdriver, tighten the two captive screws to hold the fan
2.
into place.
Install the front bezel onto the Acme Packet 4600 by hooking the
3.
right side of the bezel onto the chassis and then pivoting the bezel
to the left until the magnet catches the chassis. You may need to
