• Place the chassis on a workbench.

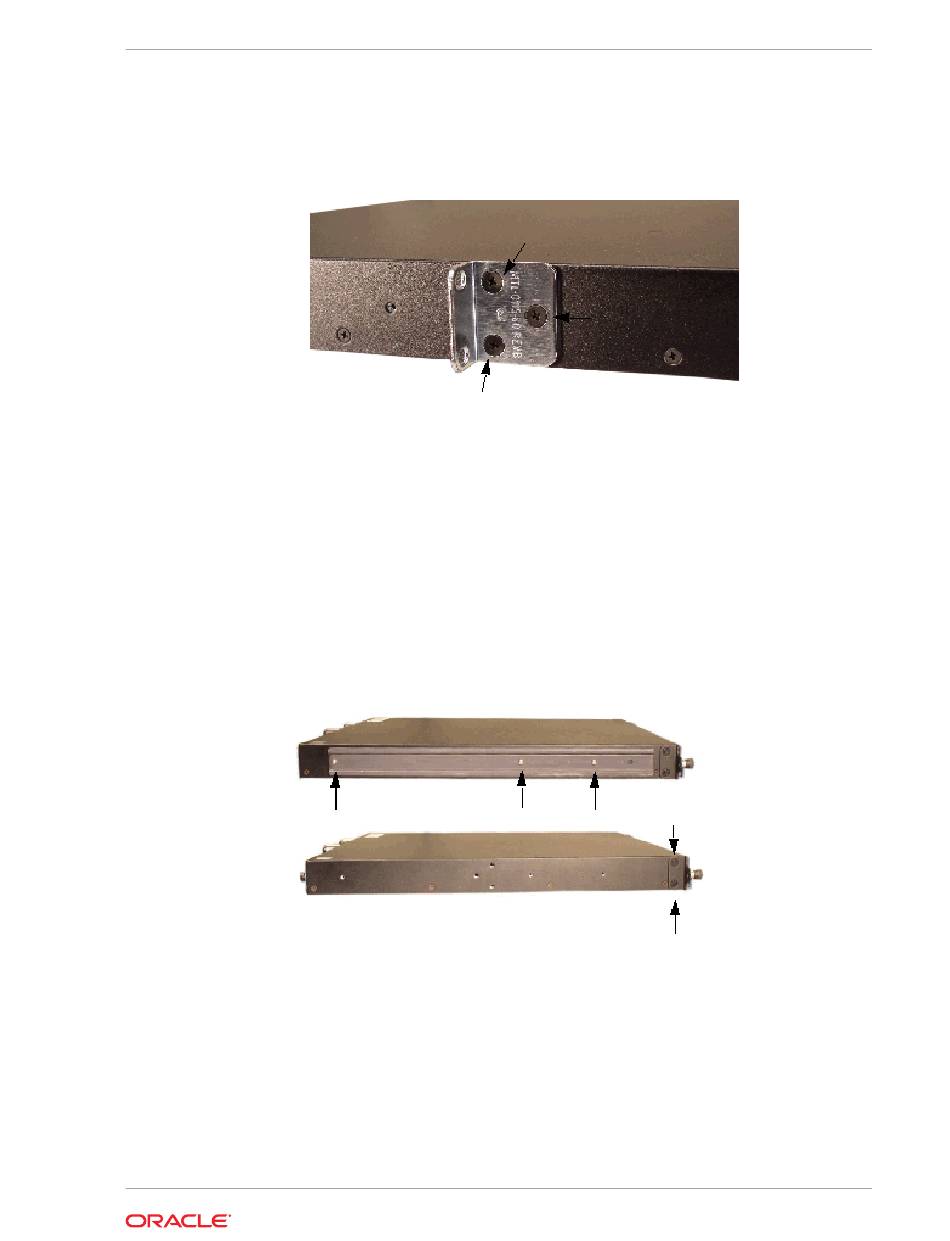

Removing Hardware in Center-Mount Configurations

The rack ears must be removed before you can open the
chassis.
To remove center-mount equipment rack hardware:
Remove the left rack ear by using a #1 Phillips-head screwdriver.
1.
Remove the right rack ear by unscrewing the three screws.
2.
Set the rack ears and screws aside.
3.

Removing Hardware in Front-Mount Configurations

The chassis slides and rack ears must be removed before you can open the chassis.
To remove front-mount equipment rack hardware:
Remove the left chassis slide by using a #2 Phillips-head screwdriver.
1.
Remove the left rack ear by unscrewing the three screws.
2.
Remove the the two countersunk screws on the left rear side by using a #1
3.
Phillips-head screwdriver.
Repeat steps 1 - 3 on the right side of the Acme Packet 4600.
4.
Set the rack ears and screws aside
5.

Opening the Chassis

The chassis lid is secured to the chassis by 15 screws. Remove the screws and lift the
chassis lid off the chassis.
Upgrading or Replacing a Solid State Drive
Chapter 6
6-21
