• The slide rails that are bolted to either side of the chassis or equipment rack
are reversible and can be used on either side of the Acme Packet 4600.

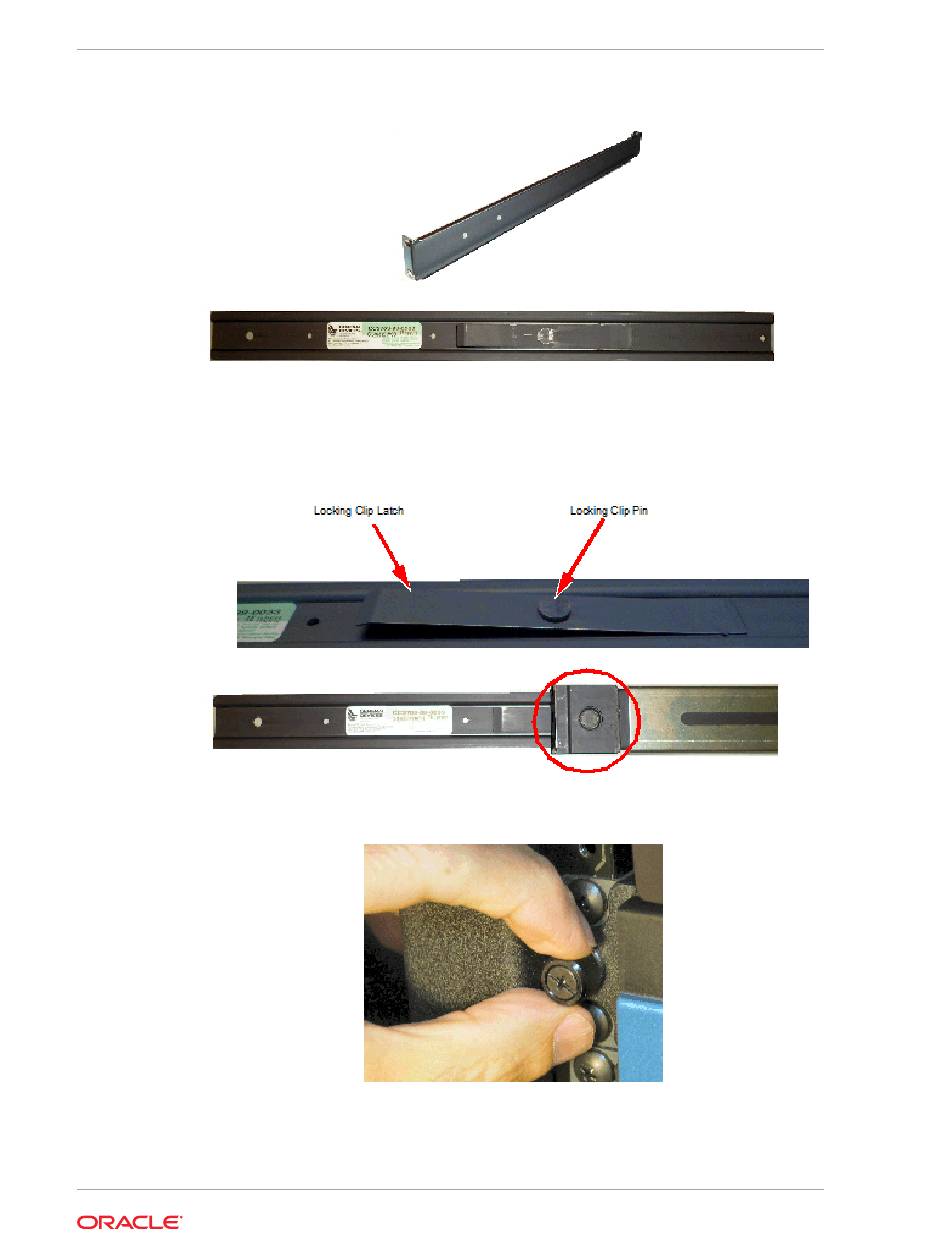

• Once the slide rails are installed on the chassis and on the equipment rack, the
chassis can be installed in the rack by inserting the chassis slide rails into the
tracks of the slide rails already mounted on the equipment rack. When the locking
clip pin on the chassis slide rail meets the hole in the rack slide rail, the rails lock
together. Push the locking clip pin in to continue to slide the chassis into the rack
rails.
Once the chassis has been fully inserted into the rack, turning the
captive thumbscrews clockwise will lock the chassis securely into the rack.
