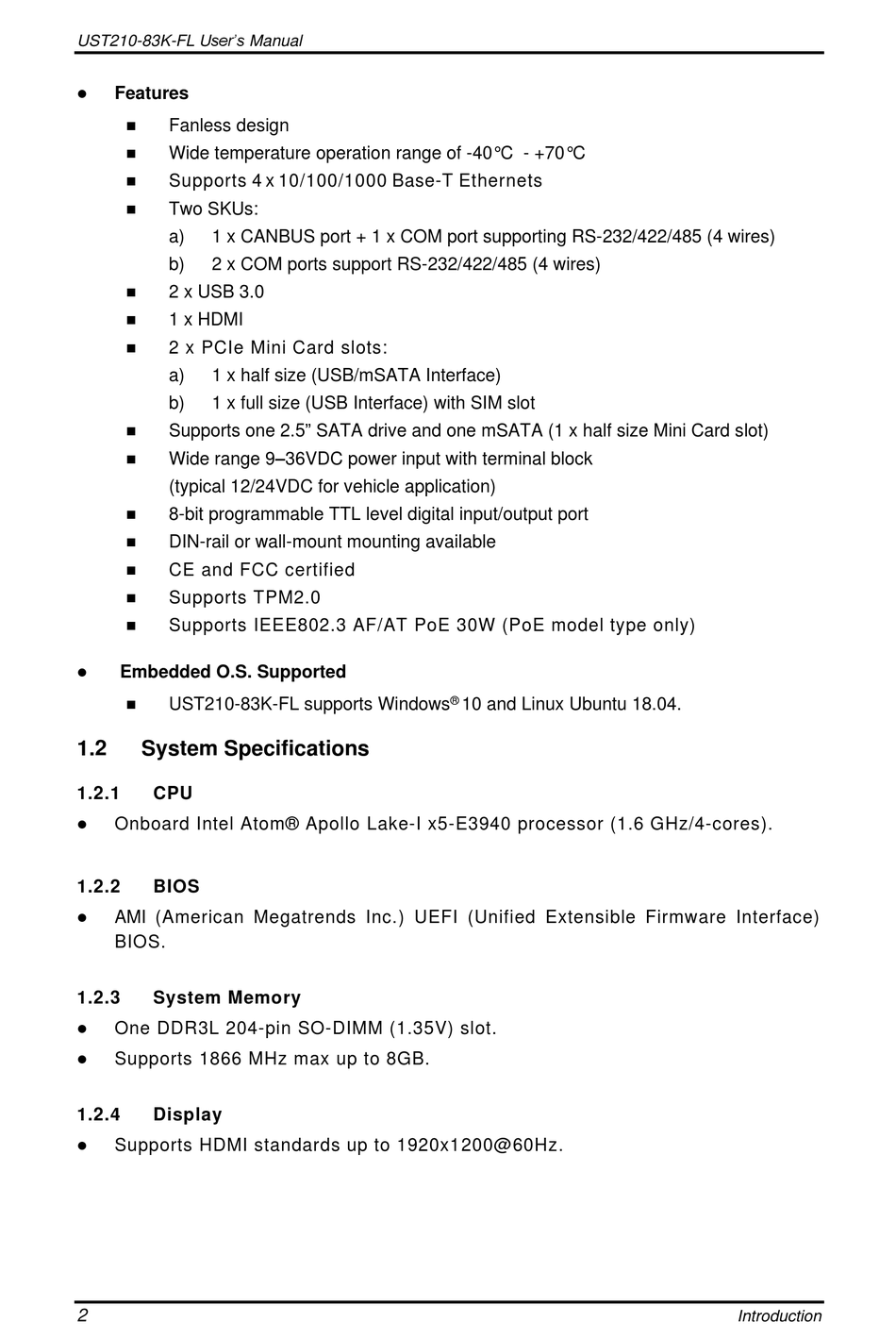

UST210-83K-FL User's Manual
⚫ Features
◼ Fanless design
◼ Wide temperature operation range of -40°C - +70°C
◼ Supports 4 x 10/100/1000 Base-T Ethernets
◼ Two SKUs:
a) 1 x CANBUS port + 1 x COM port supporting RS-232/422/485 (4 wires)
b) 2 x COM ports support RS-232/422/485 (4 wires)
◼ 2 x USB 3.0
◼ 1 x HDMI
◼ 2 x PCIe Mini Card slots:
a) 1 x half size (USB/mSATA Interface)
b) 1 x full size (USB Interface) with SIM slot
◼ Supports one 2.5" SATA drive and one mSATA (1 x half size Mini Card slot)
◼ Wide range 9–36VDC power input with terminal block
(typical 12/24VDC for vehicle application)
◼ 8-bit programmable TTL level digital input/output port
◼ DIN-rail or wall-mount mounting available
◼ CE and FCC certified
◼ Supports TPM2.0
◼ Supports IEEE802.3 AF/AT PoE 30W (PoE model type only)
⚫ Embedded O.S. Supported
◼ UST210-83K-FL supports Windows
1.2

System Specifications

1.2.1

CPU

⚫ Onboard Intel Atom® Apollo Lake-I x5-E3940 processor (1.6 GHz/4-cores).
1.2.2

BIOS

⚫ AMI (American Megatrends Inc.) UEFI (Unified Extensible Firmware Interface)
BIOS.
1.2.3

System Memory

⚫ One DDR3L 204-pin SO-DIMM (1.35V) slot.
⚫ Supports 1866 MHz max up to 8GB.
1.2.4

Display

⚫ Supports HDMI standards up to 1920x1200@60Hz.
2
®
10 and Linux Ubuntu 18.04.
Introduction
