UST210-83K-FL User's Manual

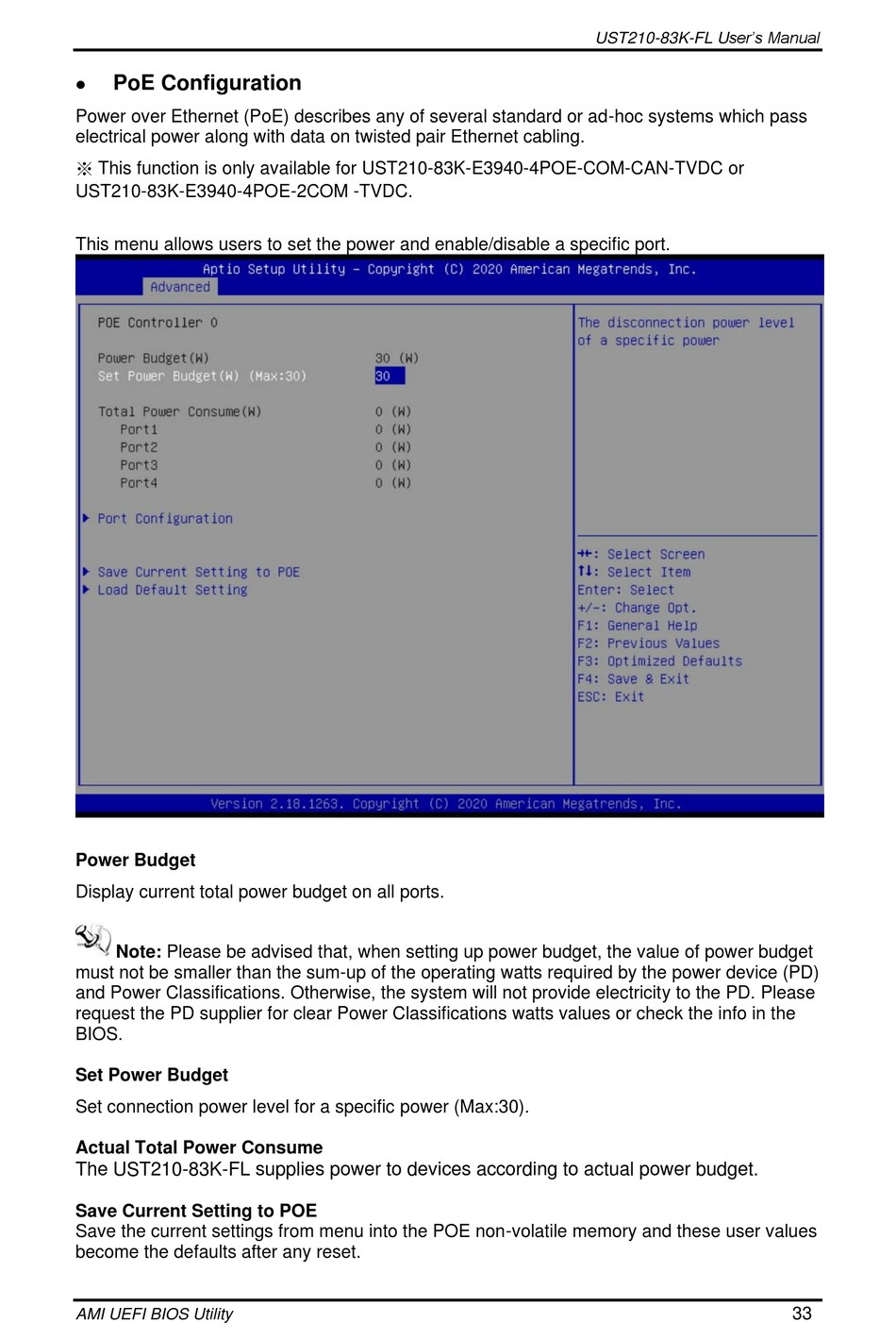

PoE Configuration
⚫
Power over Ethernet (PoE) describes any of several standard or ad-hoc systems which pass
electrical power along with data on twisted pair Ethernet cabling.
※ This function is only available for UST210-83K-E3940-4POE-COM-CAN-TVDC or
UST210-83K-E3940-4POE-2COM -TVDC.
This menu allows users to set the power and enable/disable a specific port.
Power Budget
Display current total power budget on all ports.
Note: Please be advised that, when setting up power budget, the value of power budget
must not be smaller than the sum-up of the operating watts required by the power device (PD)
and Power Classifications. Otherwise, the system will not provide electricity to the PD. Please
request the PD supplier for clear Power Classifications watts values or check the info in the
BIOS.
Set Power Budget
Set connection power level for a specific power (Max:30).
Actual Total Power Consume
The UST210-83K-FL supplies power to devices according to actual power budget.
Save Current Setting to POE
Save the current settings from menu into the POE non-volatile memory and these user values
become the defaults after any reset.
33
AMI UEFI BIOS Utility
