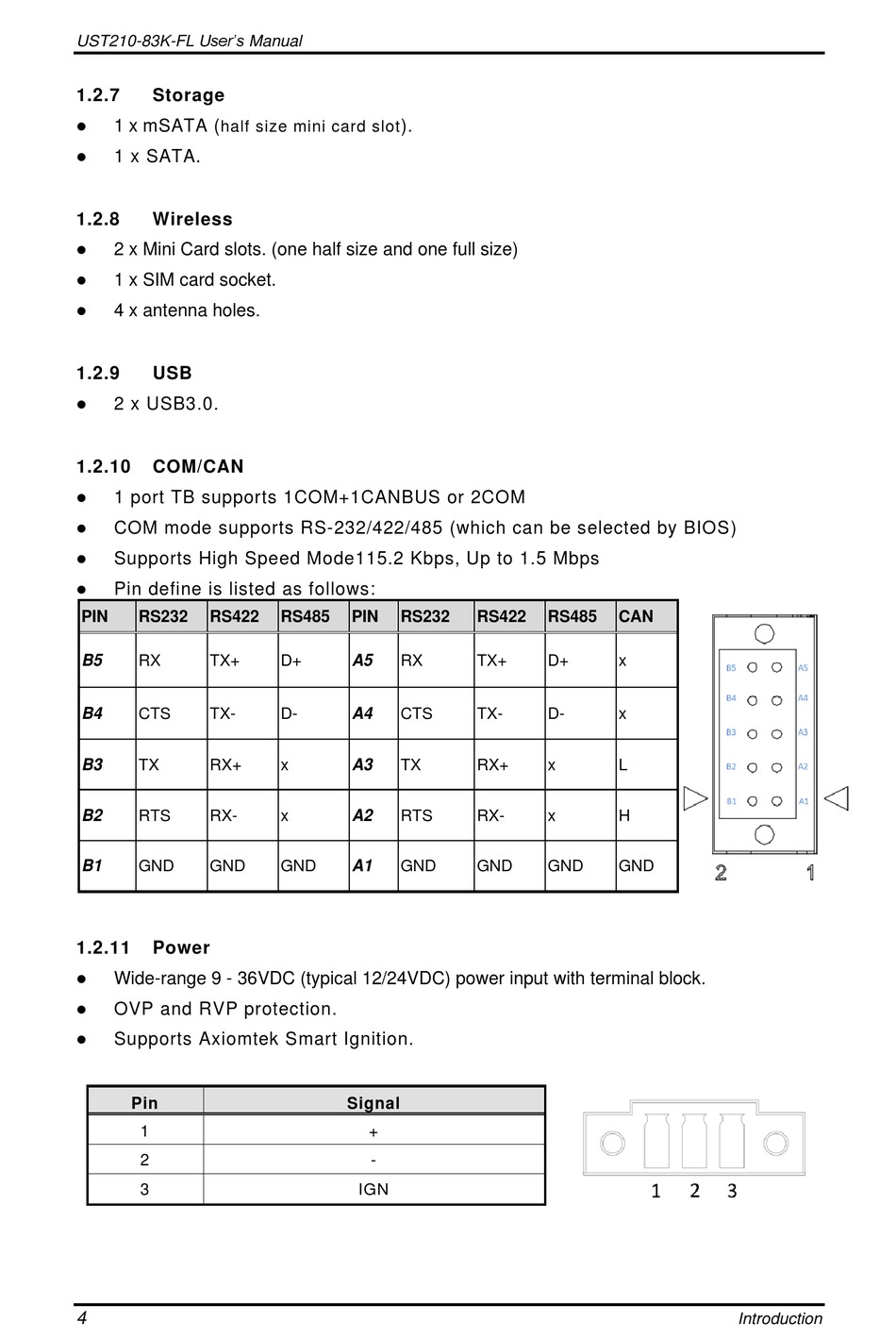

UST210-83K-FL User's Manual
1.2.7

Storage

⚫ 1 x mSATA (
half size mini card slot
⚫ 1 x SATA.
1.2.8

Wireless

⚫ 2 x Mini Card slots. (one half size and one full size)
⚫ 1 x SIM card socket.
⚫ 4 x antenna holes.
1.2.9

USB

⚫ 2 x USB3.0.
1.2.10

COM/CAN

⚫ 1 port TB supports 1COM+1CANBUS or 2COM
⚫ COM mode supports RS-232/422/485 (which can be selected by BIOS)
⚫ Supports High Speed Mode115.2 Kbps, Up to 1.5 Mbps
⚫
Pin define is listed as follows:
PIN RS232 RS422
B5 RX TX+
B4 CTS TX-
B3 TX RX+
B2 RTS RX-
B1 GND GND
1.2.11

Power

⚫ Wide-range 9 - 36VDC (typical 12/24VDC) power input with terminal block.
⚫ OVP and RVP protection.
⚫ Supports Axiomtek Smart Ignition.
Pin
1
2
3
4
).
RS485 PIN RS232
D+ A5 RX
D- A4 CTS
x A3 TX
x A2 RTS
GND A1 GND
Signal
+
-
IGN
RS422 RS485 CAN
TX+ D+ x
TX- D- x
RX+ x L
RX- x H
GND GND GND
Introduction
