M10/M12 Countersunk Barrel Nut with
Threaded Rod. Recomended for Chemical
Anchor systems or where non standard
thread length are required.
4x M10 x 20 CSK Screw
316 Stainless Steel
Included with Umbrella
M10 / M12 Barrel Nut
CSK Hex Socket 316 Stainless Steel
Not Included
NB: It is the responsibility of the installer to ensure that any fixings used in the installation of the umbrella surface plate are suitable for the application

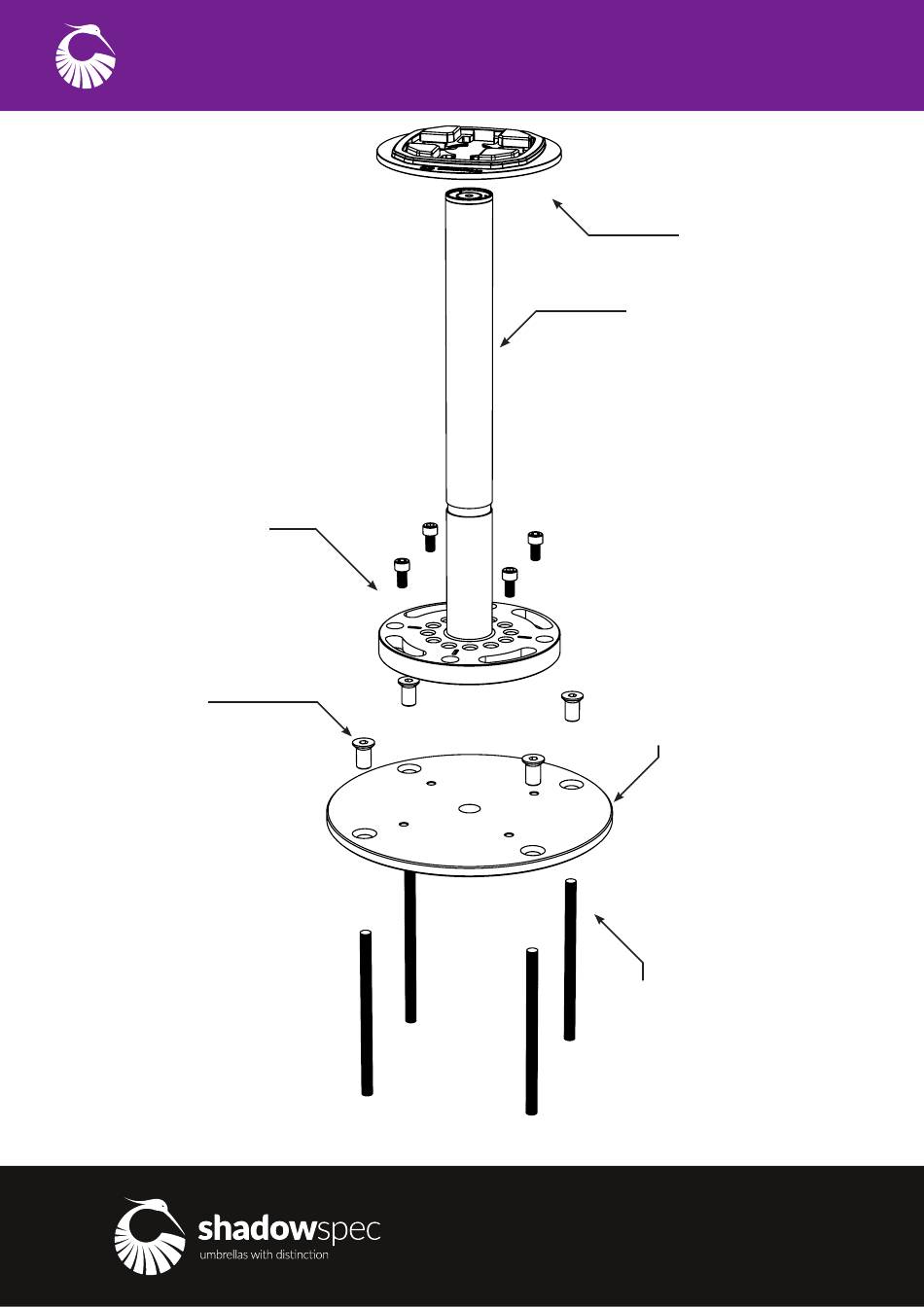

Mounting Option - Surface Plate - Chemical Anchor
Shadowspec Unity
UM-110312
Unity Rotation plate
UM - 110068
Unity Spigot
UM - 110114
UM - 110312
Surface plate - 316 Stainless Steel
10mm/12mm | 2/5''/ 1/2'' Threaded Rod
316 Stainless Steel
Use Chemical Anchor or
Matching Nut and Washer.
Trim Length to suit application.
Not Included
