Shadowspec UNITY Square Uno Manual page 11

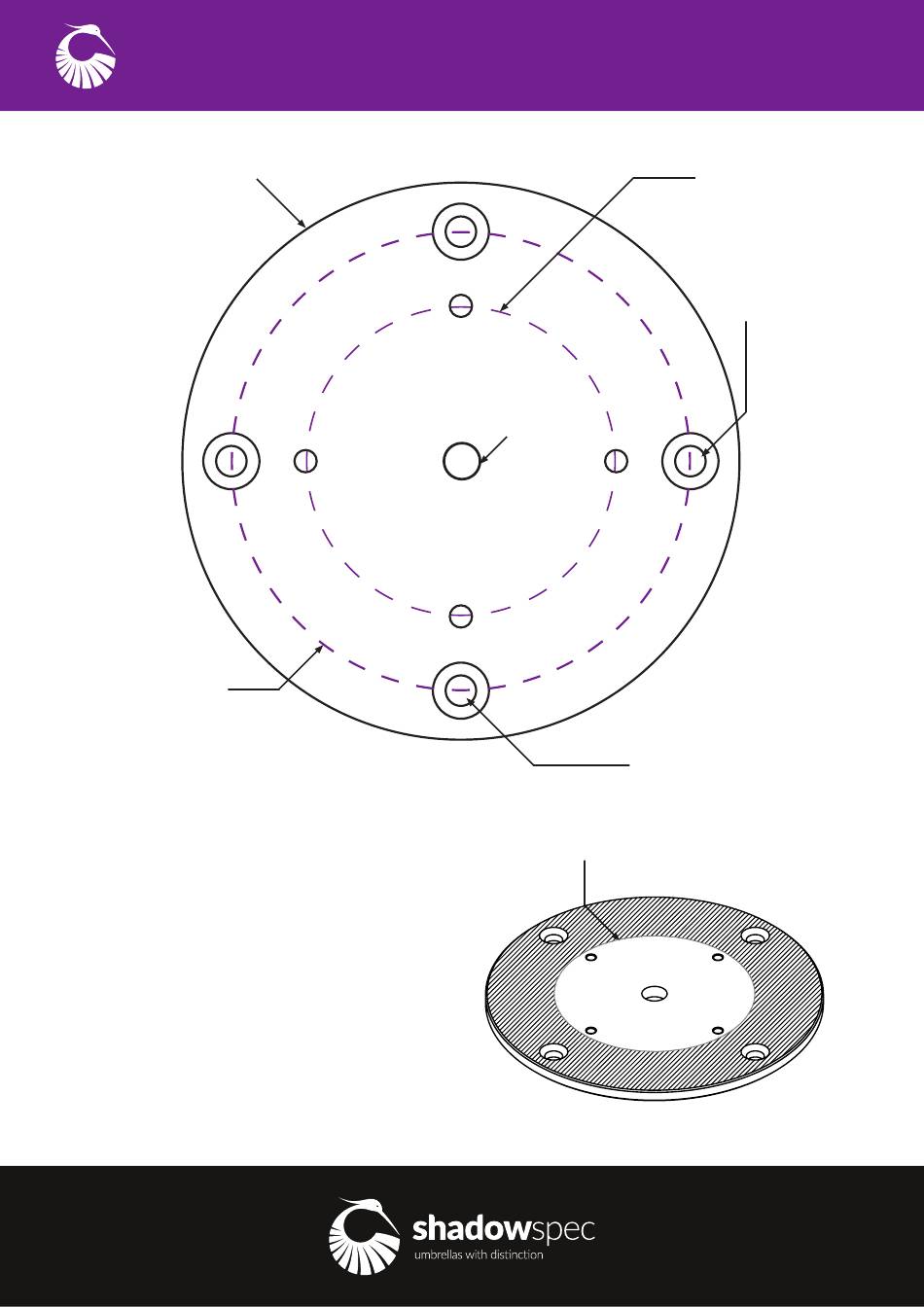

Ø 320mm |1' 3/5''
Ø 270mm | 11''
- For mounting to existing concrete patio or decking
- Affixed with 4x M10 | 3/8''bolts (not included)
- Only use 316 stainless steel or galvanised fasteners
- 7mm | 7/10'' bolt holes
- 320mm | 8'' radius
- 270mm | 7'' PCD
- 12mm | 1/2'' plate thickness
- 316 Stainless Steel
- Pre-threaded holes
- 6.9kg | 15lb 3oz weight
- Allows 360o umbrella rotation
- Ships in one box
- Suits Shadowspec Serenity™ & Unity™ models
- Full instruction and install guide provided
Mounting Option - Surface Plate
Ø 20mm | 4/5''
Highly polished to
190mm |7''
All sizings are +/- 2.5mm | 3/32'' and subject to change without notice.
Shadowspec Unity
UM-110311
Ø 170mm | 7''
Ø 17mm | 7/10''
Countersunk
Turn plate over for
non-countersunk fixings
™
