STAGE 2 NAMING AND CHECKING YOUR UMBRELLA PARTS
When unpacking your Unity umbrella please check you have all the correct parts pictured below before beginning the
assembly. If any parts are missing please contact support@shadowspec.com to create a ticket to resolve.
You will need to refer back to this page so why not earmark it for quick reference whilst you're assembling your umbrella.

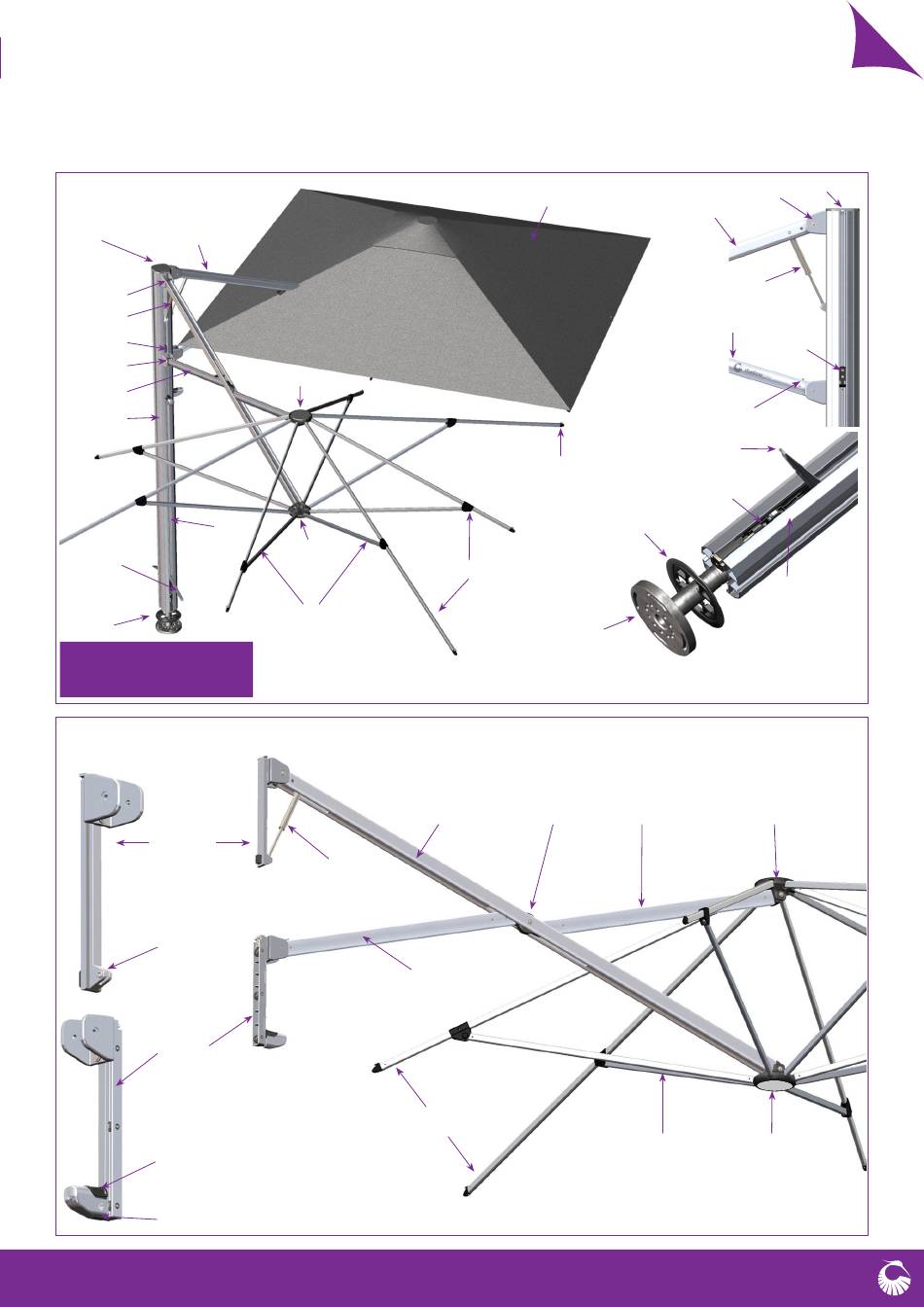

Figure 2 - Unity Umbrella Parts
Top Cap Main-Spar
Top Pivot Block
Gas Spring
Top Catch
Carriage
Through-Spar
Unity Mast
Bottom Catch
Rotation Lock Levers
Unity Spigot
Also Included with Umbrella:
• Hex Key Set
• No. 17 Ring Spanner
Figure 3 - Additional Frame Parts
Top Pivot Block
Spring Pivot
Carriage
Shadowglide Button
Shadowglide Handle
Upper Hub Assembly
Lower Hub with
LED Light
Rib Support (Long / Short)
Main-Spar
Gas
Spring
Through-Spar
Upper Rib
(Long / Short)
Fabric Canopy
Rib Tip with Canopy screws
Rotation Plate
Upper Rib (Long / Short)
Unity Spigot
S-Bend Pivot Through-Spar
Rib Support (Long /
Top Pivot Block Top Cap
Main-Spar
Gas Spring
Through-Spar
Top Catch
Securing
Point
Rotation Lock Lever
Security Lock Screw
Mast
Channel
Upper Hub
Assembly
Lower Hub with
Short) LED Light
