Shadowspec UNITY Square Uno Manual page 27

Step 15
With care, lower the Mast down onto the Spigot and push it into the correct grooves of the Rotation Plate.
Step 16 Lift the Rotation Lock Lever and tighten the security screw all the way. You now should not be able to lift the
Umbrella off the Spigot.
Note: You'll need to do this on both Rotation Lock Levers on the umbrella.
Tip: Ensure the Mast can still rotate once the screw is tight - See Figure 5 (on page 8) If not, loosen the
screw slightly. Rotate the Mast until the index pin locates into the desired position hole. The lever will
fall down into place -
Step 17 With the Mast now in the upright position, with the help of an assistant and a ladder, lift the Additional Frame
to line up with the Top Pivot Block on the mast.- See

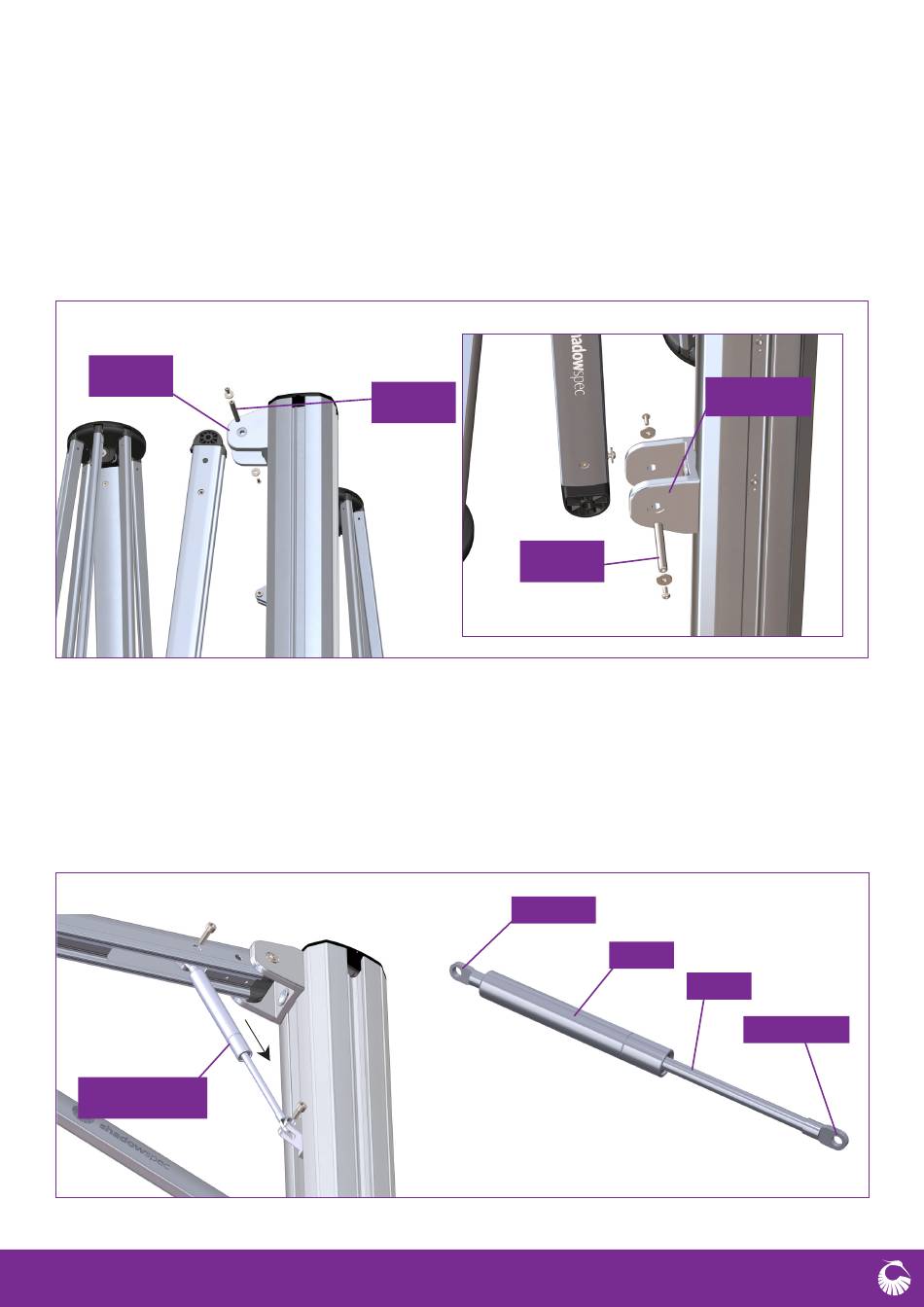

Figure 16 - Mounting Additional Frame(s)
Top Pivot
Block
Step 18 Insert the Axle Pin that you kept safe at
Step 19 With the additional frame now hanging secure from the Top Pivot Block, secure the other end of the
Additional Frame to the Shadowglide Carriage. Ensure both Axle Pins are tightened.
Tip:
We recommend using a thread locking compound to ensure the screws do not loosen over time.
Step 20 Unscrew the Top Catch and secure it in the upper-most position as illustrated in Figure 15. This is a temporary
position to allow the installation of the Gas Spring (note only one screw will be used). Please remember
Figure 17 - Shadowlift - Gas Spring Installation
Note orientation
of Gas Spring
DO NOT force the lever down.
Figure 16.
Axle Pin
with screws
Step 9 and tighten it from both sides.
NOTE: Please note the orientation of the Gas
Spring. The thinner shaft must always point
downwards.
Axle Pin
with screws
Top Eyelet
Body
Bottom Pivot
Block
Shaft
Bottom Eyelet
15
