OPTION 4 - WALL BASE BRACKET
For installation you will require:
• 4 X M16 Bolts and Washers.
• Hex Key Set - Included in your umbrella box
• Additional Spanner / Socket wrench required for M16 Bolts.
• Wall Base Bracket.
(Follow the indications on
Step 1 Choose your site carefully.
Step 2 Please ensure the wall you're mounting to is sound, strong and appropriate - seek appropriate advice if you
have any reservations.
Step 3
Affix the Spigot to the Wall Base Bracket using the supplied bolts.
Step 4 Position the Wall Base Bracket against the wall but on the ground so that the weight of your umbrella is
partially supported by the ground. Ensure a stable and solid support is provided by the ground -
Step 5
Mark hole locations on the wall and drill pilot holes.
Step 6 Drill holes ensuring that they are parallel to each other and secure the Wall Mount bracket to the wall.
Step 7 Slide your Rotation Plate over the Spigot and move on to Stage 4.

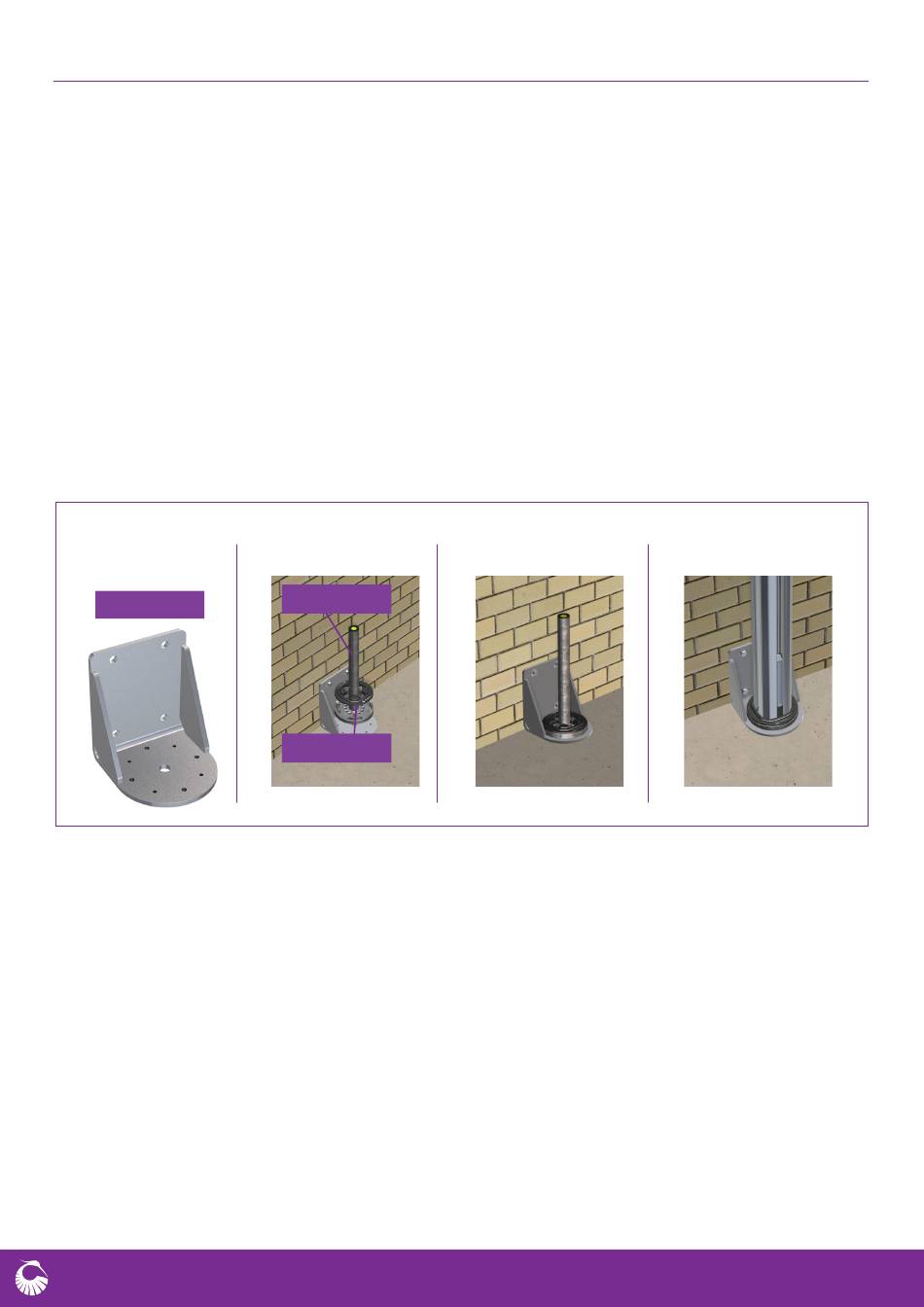

Figure 12 - Wall Base Bracket
1.
Wall Mount
12
Figure 12
to install the necessary parts)
2.
Unity Spigot
Rotation Plate
3.
NOTE: Refer to Spigot orientation diagram -
See Figure 12.
4.
Figure 8
