STAGE 4 ASSEMBLING AND MOUNTING YOUR UMBRELLA(S)
4A) ASSEMBLING YOUR UMBRELLA:
Shadowspec Unity comes partially assembled which is great! If you have a Duo, Trio or Quattro you'll need to attach
a few things to the Mast to add your additional Frames. Remove the pre-assembled Unity umbrella from your box
packaging and make sure you place it somewhere where the surface of your umbrella parts won't get scuffed or
scratched. The other smaller box will contain the extra parts you need for the additional Canopy Frames. Remove the
parts and lay them out.
You will require:
• A two person team
• Step Ladder
• Hex Key Set - Included in your umbrella box
• Your umbrella (large box)
• The additional umbrella Frame(s) - smaller box(s)
• The assembly parts kit (supplied with each additional umbrella Frame)
• Your umbrella Fabric Canopies
NOTE: Remember to install the Spigot on your chosen mounting option before proceeding.

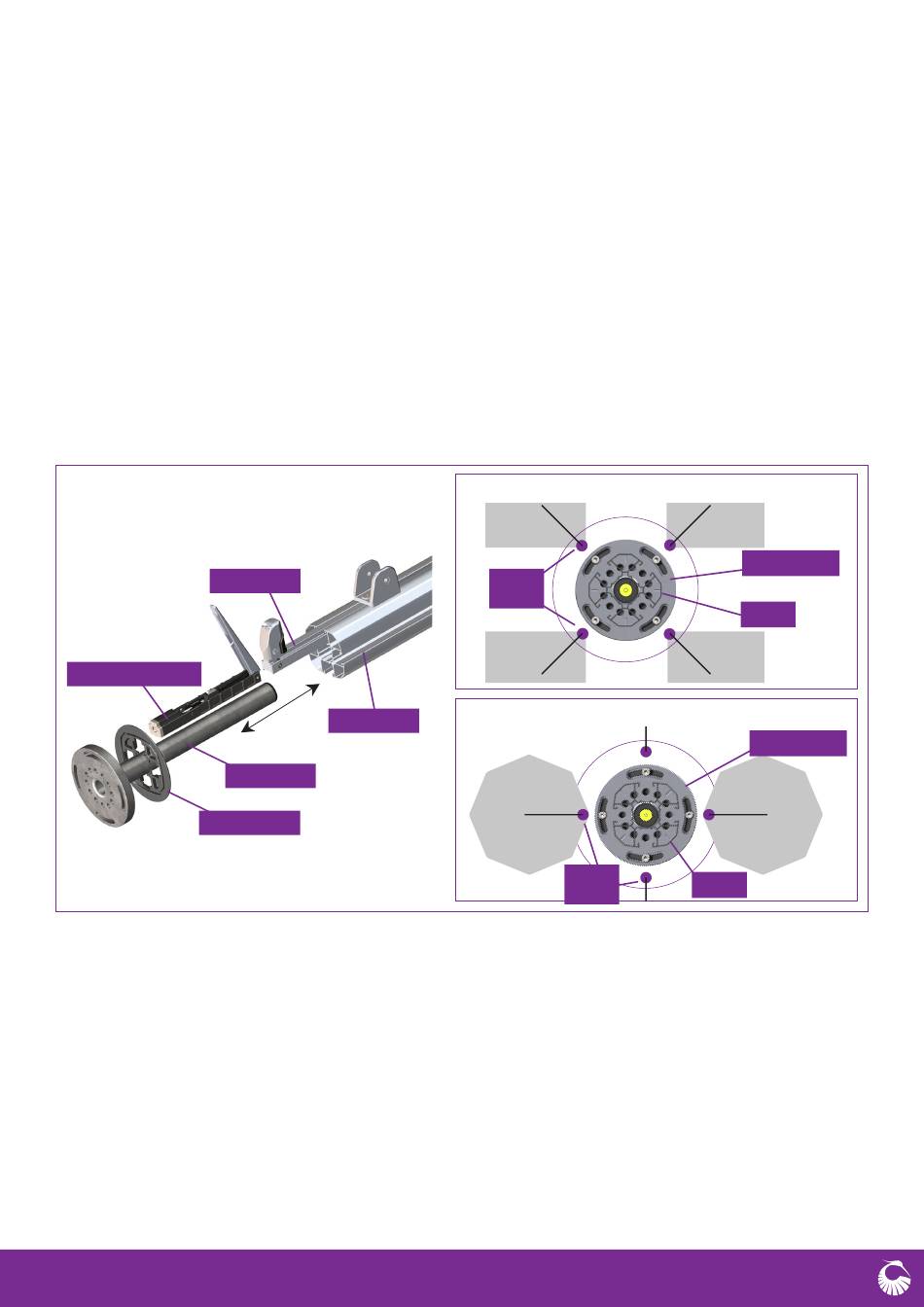

Figure 13 - Carriage and Rotation Lock Lever Assembly
Carriage
Rotation Lock Lever
Rotation Plate
Step 1 Turn the Mast so the Mast Channel you wish to install the additional Frame on is facing skyward.
- see Figure 13.
Note: For correct Frame orientation please refer
Step 2 Using your Hex Key, unscrew the Security Lock Screw from your Rotation Lock Lever and remove it from the
Mast Channel.
Step 3 Insert the Carriage into the Mast from the bottom with the correct side facing upwards, sliding it up the Mast
until it locks into the Top Catch bracket.
Step 4 Insert the Rotation Lock Lever into the same Mast Channel and finger tighten the screw until it just catches.
Note:
Don't over-tighten this screw or you won't get the Mast on the Spigot
Step 5 Remove the Top Cap from the top of the Mast. See Figure 14 on page 14.
Step 6
Remove Gas Spring from the Top Pivot Block.
Note: Keep the parts safe, you'll need them soon.
Unity Mast
Unity Spigot
1. Mast Orientation for Square Canopies
Canopy
Bolt
Holes
Canopy
2. Mast Orientation for Octagon Canopies
Canopy
Bolt
Holes
to Figure 4 on page 8.
Canopy
Unity Spigot
Mast
Canopy
Unity Spigot
Canopy
Mast
13
