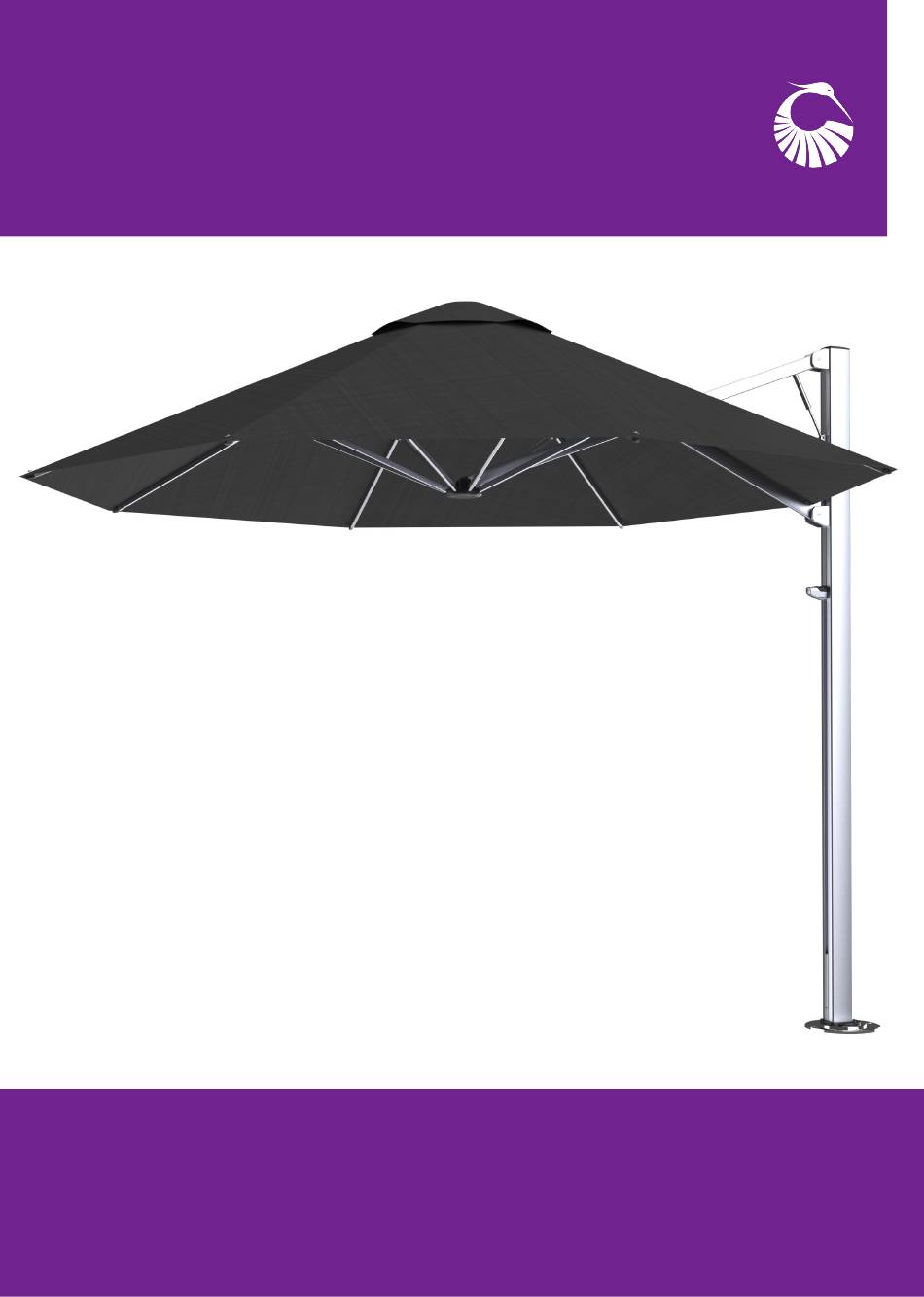

- Page 1 SHADOWSPEC SERENITY ™ ROTATING CANTILEVER UMBRELLA P01/23 OWNERS MANUAL Installation, Operation, Care and Warranty www.shadowspec.com...
- Page 2 Shadowspec Umbrella. Help extend the life of your umbrella investment by reading and following these care instructions on a regular basis. Thank you for your purchase, we appreciate it. Enjoy the shade, courtesy of Shadowspec.
-
Page 3: Table Of Contents
Contents Page Warranty Information Product Registration and Warranty Validation Stage 1 - Key Dimensions of Your Shadowspec Serenity Shadowspec Serenity™ Part Naming Umbrella Location Installation Spacing - Multiple Umbrellas Installation - Umbrella Orientation STAGE 2 Installation of Your Umbrella Mount... -
Page 4: Warranty Information
Shadowspec shall not otherwise be liable or responsible for any direct, indirect, incidental or consequential damage, costs or losses of any kind arising out of or in connection with your umbrella or components or for any delay by Shadowspec or the component manufacturer in undertaking repairs or replacement under this warranty. - Page 5 Shadowspec Fabric Canopies are manufactured from the most durable marine fabrics, threads and designs available. Shadowspec Fabric Canopies should be cleaned on a regular basis so dirt isn’t allowed to build-up and become embedded in the fabric. You can clean your Fabric Canopy without removing it from the Frame if you prefer, or it’s as easy to remove as it was to put on.
-
Page 6: Stage 1 - Key Dimensions Of Your Shadowspec Serenity
Stage 1 - Key Dimensions of Your Shadowspec Serenity™ As the Shadowspec Serenity is available to you in a variety of configurations, care must be taken to check the sizing of your chosen umbrella in the following table. Key Measurement Notes: Free-Standing Base installations will add 165mm | 6’’... -
Page 7: Shadowspec Serenity™ Part Naming
When unpacking your Serenity umbrella please check you have all the correct parts pictured below before beginning assembly. If any parts are missing please contact support@shadowspec.com to resolve. You will need to refer back to this page so why not earmark it for quick reference whilst you’re assembling your umbrella. -
Page 8: Umbrella Location
3. Take care to double, or even, triple check your measurements. 4. Check measurements for the Rotation Lock Lever and its clearance when placing close to a wall. Detailed and up-to-date measurements and spec-sheets are available online at: shadowspec.com/cad www.shadowspec.com... -
Page 9: Installation Spacing - Multiple Umbrellas
The following diagrams will show you how far apart to set the Spigots of your Shadowspec Serenity when matching it with another Shadowspec Serenity or Shadowspec Unity. -
Page 10: Installation - Umbrella Orientation
Double check your measurements and orientation before affixing your umbrella. (Diagram Surface Plate Alignment In-Ground Anchor Alignment Bolt-hole Orientation Diagram I Diagram II Diagram III Mount Parallel to Structure Opening Direction Diagram IV Diagram V Square Umbrella Octagon Umbrella www.shadowspec.com... -
Page 11: Stage 2 Installation Of Your Umbrella Mount
Affix the Spigot to your mounting option of choice (Options 1 - 4). Figure D - Location of Security Lock Screw Security Lock Screw Please don’t use the Rotation Lock Lever to lift the Shadowspec Serenity Umbrella - it could break and not be covered by warranty. Serenity Spigot 1. Free-standing Base 2. -
Page 12: Option 1 - Free-Standing Base
Figure E - Free-Standing Base Parts iii. Free-Standing Base Serenity Spigot Rotation Plate Threaded Feet Nuts Unity Screws Serenity Screws *Both Serenity and Unity Screws are included in box. Only use the set required for your Serenity and the Unity Screws will be surplus. www.shadowspec.com... - Page 13 This will provide the weight required for normal operation. Not having 12 pavers in your Free-Standing base will void your warranty. Note: The Pavers are not included or supplied by Shadowspec. Size required: Metric: 400mm x 400mm x 40mm Imperial: 1’3” x 1’3” x 1.5”...
-
Page 14: Option 2 - In-Ground Anchor
Step 9 Slide your Rotation Plate over the Spigot and move on to Stage 4 - Page 24. Figure G - In-Ground Anchor Parts iii. NOTE: Do not cover Serenity Spigot the Spigot Screws In-ground Anchor Rotation Plate Ground Level www.shadowspec.com... - Page 15 Figure H - In-Ground Anchor Installation, Mast Orientation and Suggested Specifications Installation Orientation Serenity Umbrella Frame will face in this direction Serenity Spigot Ground level Flare Out 500mm / 1’8’’ ft...
-
Page 16: Option 3 - Surface Plate
Use your bolts to secure the Surface Plate and Spigot to the chosen spot. Step 8 Slide your Rotation Plate over the Spigot and move on to Stage 4 - Page 24. Figure I - Surface Plate Surface Plate Serenity Spigot Rotation Plate Surface Plate Bolts www.shadowspec.com... - Page 17 Figure J - Securing Surface Plate to Concrete Slab Serenity Spigot Use a Dyna-Bolt or Concrete Screw at least 100mm / 4’’ long to suit the four 12mm / 1/2’’ holes in the Surface Plate. Surface Plate Minimum 150mm / 6” Edge of slab CONCRETE SLAB Recommended minimum depth of reinforced concrete slab 100mm / 4”.
- Page 18 Additional 100mm x 100mm / 4’’ x 4’’ 200mm x 50mm / 8’’ x 2’’ timber joist inserted between deck timber deck joists bearers to provide a substantial anchor point for bolts to fasten through Spigot and Surface Plate www.shadowspec.com...
- Page 20 Equipotential Bonding MUST be performed by a licensed electrical person prior to the product being used. This is a mandatory requirement. As the purchaser of this product, you are responsible for ensuring compliance with this requirement at your own expense. * Please verify the minimum distance required as stipulated by your specific regional regulations outside NZ/AU/USA www.shadowspec.com...
-
Page 21: Option 4 - Wall Base Bracket
Option 4 - Wall Base Bracket For installation you will require: • 4 X M16 Bolts and Washers. • Hex Key Set - Included with umbrella. • Additional Spanner/Socket wrench required for M16 Bolts. • Wall Mount Bracket. (Follow the indications on to install the necessary parts) Figure L Step 1... -
Page 22: Mounting Option - Spec-Sheets & Sizes
10mm | 2/5’’ Ø 198mm | 8’’ Ø 170mm | 7’’ 500mm | 1’8’’ Free-standing Base - Spec Sizes 936mm | 3’1’’ 45mm | 2’’ 417.5mm | 1’4’’ 170mm | 7’’ 152mm | 6’’ 120mm | 5’’ 50mm | 2’’ Adjustable www.shadowspec.com... - Page 23 Surface Plate - Spec Sizes Surface Plate - Spec Sizes Ø 170mm | 7’’ Ø 320mm |1’ 3/5’’ Ø 17mm | 7/10’’ Ø 20mm | 4/5’’ Ø 270mm | 11’’ Countersunk Turn plate over for non-countersunk fixings 191mm | 8’’ Wall Base Bracket - Spec Sizes 260mm | 10’’...
-
Page 24: Assembling Your Umbrella
Stage 3 - Assembling your Shadowspec Serenity™ ASSEMBLING YOUR UMBRELLA The Shadowspec Serenity comes assembled which is great! Remove the Serenity Umbrella from your box packaging and make sure you place it somewhere where the surface of your umbrella parts won’t get scuffed or scratched. - Page 25 Figure M - Carriage and Rotation Lock Lever Assembly Carriage Serenity Umbrella Frame will face in this direction Rotation Lock Lever Serenity Mast Serenity Spigot Installation Orientation Figure N - Top Catch Permanent Operational Position Upper Position (Tighten Fabric Canopy) Middle Position (Default) Top Catch...
-
Page 26: Stage 5 Operating Your Shadowspec Serenity
Stage 4 - Operating your Shadowspec Serenity™ Your Shadowspec Serenity is engineered to be easy to use. Squeeze the Shadowglide Button to release the Carriage from its closed position and push it up the Mast until it locks in place. Contact us if you would like to purchase a Protection Cover. - Page 27 Figure P - Operating Your Umbrella Click! Click! Shadowglide Button Shadowglide Handle...
-
Page 28: Led Lights
Accessories - LED Lights LED LIGHTS All Shadowspec Serenity Umbrellas are supplied with an LED Light built into the into the lower hub of each Frame - See Figure Q. You’ve got two options to power your LED light. The LED Light can be powered by the optional Shadowspec Smart Battery. - Page 29 Notes...
- Page 30 Contact our in-house shade and outdoor specialists for more information and advice. AUSTRALIA NEW ZEALAND UNITED STATES Australian Nest Heron Base North American Nest Houston, Texas Laverton North, Victoria Whangarei, Northland 844 888 5577 1800 144 155 0800 144 155 www.shadowspec.com www.shadowspec.com.au www.shadowspec.co.nz...
