to move this back to the operational position as illustrated in
Step 21 Lift and slide the carriage up until it clicks into the fully open position. Please take care to ensure the ribs clear
all objects and persons. This action will require a bit of effort as the Gas Spring is not installed yet.
Tip: The Top Catch must be in the Temporary Installation position - See Figure 16.
Step 22 Unscrew and remove the Gas Spring bolt from the Main-Spar and reinsert it through the Top Eyelet of the Gas
Spring.
Note: Ensure the Gas Spring is the right way round, the larger body should be at the top and the thin shaft at
the bottom.
Step 23 Swing the Gas Spring into place and secure the Bottom Eyelet to the pivot point on the Mast.
Step 24 Reposition the Top Catch into the permanent operational position. –
Note: There are three adjustable positions. We recommend starting with the middle position.
Step 25 Open and close the Frame a few times to ensure smooth operation.
Step 26 Repeat for Frames 3 and 4 for a Trio and Quattro Umbrella.

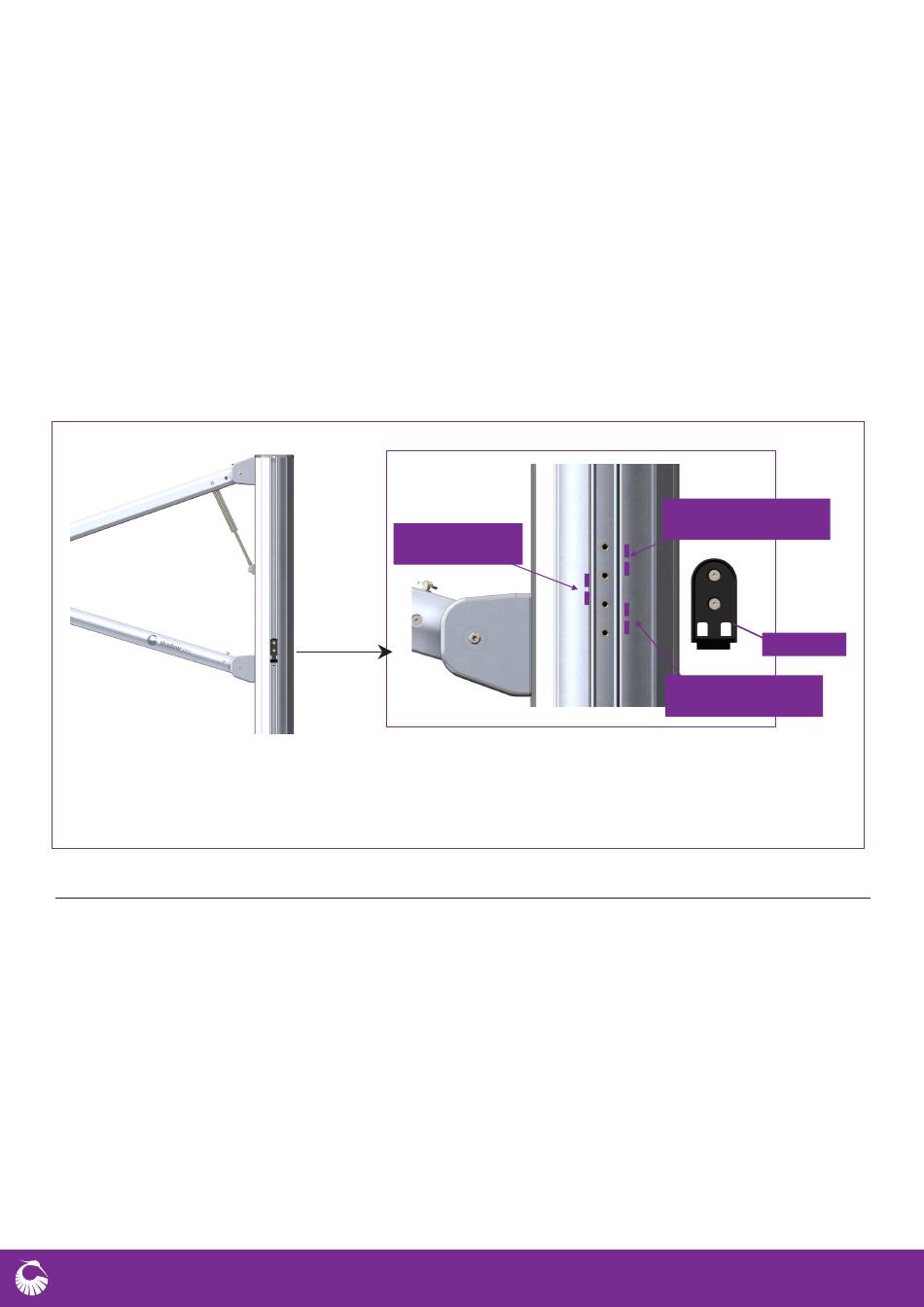

Figure 18 - Top Catch Permanent Operational Position
Note: Please move the Top Catch into the final operational position. The Middle Position is the factory default
position. The Upper Position will tighten the Fabric Canopy whilst the lowest fixing position will remove
some of the tension in the Fabric Canopy. Fabric Canopies tend to stretch slightly over time.
Tip: When new, the Fabric Canopies might require a bit more force to open. Moving the Top Catch to its
lowest setting will ease this operation until the Fabric Canopy has stretched into position.
4C) FABRIC CANOPY INSTALLATION:
Step 1
Click the Shadowglide Button to release the Frame and lower it to the middle of the Mast to make it
easier to attach the Fabric Canopy.
Step 2
Using a step ladder, (carefully) place the Fabric Canopy onto the Frame.
Step 3
Align the eyelets on the Fabric Canopy with it's correct Rib Tip and using your Hex Key, fix the Fabric Canopy
in place.
Note: Ensure they're tight to prevent them coming loose over time.
Step 4 Align the split in the canopy with the Through-Spar and apply the Fabric Canopy velcro to the Through-Spar,
securing the canopy.
Step 5 Align the final Fabric Canopy eyelets at the base of the Through-Spar and secure the final screw to the
Securing Point using your Hex Key as per
Step 6 Lift the Shadowglide Carriage to the top, slowly, to test the tension of the Fabric Canopy. See
tension adjustability options for the Fabric Canopy.
Step 7 Repeat for each Additional Frame (2-4).
TIP: Reposition the bottom velcro strip if needed so it is perfectly symmetrical onto the Through-Spar.
16
Figure 18
Middle Position
(Default)
Step 3.
after the completion of installation.
See Figure 18.
Upper Position
(Tighten Fabric Canopy)
Bottom Position
(Loosen Fabric Canopy)
Figure 18
www.shadowspec.com
Top Catch
