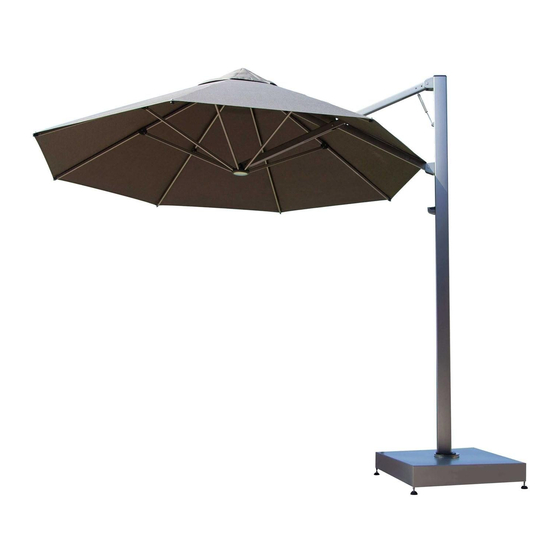

- Page 1 SHADOWSPEC SERENITY ™ PRECISION ENGINEERED AMBIENCE BEST-IN-CLASS WARRANTY Trusted for Fabric Frame Hand built in Marine 10 YEAR 6 YEAR Warranty Warranty over 25 years New Zealand Grade *Conditions apply. 3 year warranty for commercial applications.
- Page 2 SHADOWSPEC SERENITY™ PRECISION ENGINEERED AMBIENCE PATENT-PENDING TECHNOLOGY SHADOWGLIDE™ SHADOWLIFT™ Gas-assisted deployment for an easy lift. Engineered to open or close in 3 seconds. SHADOWHUB™ SHADOWLOCK™ LED light technology built-in and App controlled. Integrated security and wind-protection. Featuring Marine-Grade 316 Stainless Steel Spigot.
- Page 3 Canopy Features Stock Colours Trend Colours - Summer 20/21* (Non-stock) • 100% Sunbrella™ Marine solution-dyed fabric • All fabrics can be cleaned, washed and are replaceable • UV & fade resistant • 10 year Sunbrella™ warranty Oyster Cadet Grey Natural Charcoal Grey Rust Silver...
- Page 4 Umbrella Dimensions 2.5m | 8’2’’ 3.0m | 9’10’’ 3.5m | 11’6’’ 4.0m | 13’2’’ Diagram Legend 2.5m 8'2'' 3.0m 9'10'' 3.5m 11'6'' 4.0m 13'2'' Ground to central frame hub when closed* 860mm 2'10'' 620mm 2'1'' 1079mm 3'7'' 866mm 2'10'' Total height to top of canopy* 2900mm 9’6’’...
- Page 5 - 20kg | 44 lb 1.5 oz weight - Allows 360o umbrella rotation - Ships in one box - Suits Shadowspec Serenity™ & Unity™ models - Full instruction and install guide provided - Adjustable Feet to level the base up to 50mm | 2’’...
- Page 6 Shadowspec Serenity ™ Mounting Option - Surface Plate - Concrete Install UM-110312 12mm/16mm Expansion Bolts. Recomended for suitable Concrete Surfaces Serenity Rotation plate UM - 110068 Serenity Spigot UM - 110114 4x M10 x 20 CSK Screw 316 Stainless Steel...
- Page 7 Shadowspec Serenity ™ Mounting Option - Surface Plate - Chemical Anchor UM-110312 M10/M12 Countersunk Barrel Nut with Serenity Rotation plate Threaded Rod. Recomended for Chemical UM - 110068 Anchor systems or where non-standard thread length are required. Serenity Spigot UM - 110114...
- Page 8 - 7kg | 15lb 7oz weight - Allows 360o umbrella rotation - Ships in one box - Suits Shadowspec Serenity™ & Unity™ models - Full instruction and install guide provided All sizings are +/- 2.5mm | 3/32’’ and subject to change without notice.
- Page 9 Resources for Architects, Designers & Specifiers These resources include 2D & 3D files, CAD Resources and Spec Sheets for all the product range. https://www.shadowspec.com/cad...
- Page 10 SHADOWSPEC SERENITY ™ ROTATING CANTILEVER UMBRELLA P02/20 OWNERS MANUAL Installation, Operation, Care and Warranty SHADOWLIFT™ SHADOWGLIDE™ SHADOWLOCK™ SHADOWHUB www.shadowspec.com...
- Page 11 Read your manual in full before assembling your umbrella. To extend the life of your umbrella investment please read and follow the care instructions on a regular basis. Thank you for your purchase, we appreciate it. Enjoy the shade, courtesy of Shadowspec.
-
Page 12: Table Of Contents
CONTENTS Page SECTION 1 - WARRANTY Product Registration and Warranty Validation SECTION 2 - UMBRELLA CARE AND MAINTENANCE SECTION 3 - ASSEMBLY, INSTALLATION AND OPERATION STAGE 1 Umbrella Location - Planning Your Umbrella Location STAGE 2 Naming and Checking Your Umbrella Parts STAGE 3 Installation of Your Umbrella Mount Option 1 - Freestanding Base Option 2 - In-Ground Anchor... -
Page 13: Section 1 - Warranty
Except as expressly provided herein, all other warranties, representations, conditions, undertakings, rights, duties or liabilities, whether arising by implication of law or otherwise, are hereby expressly excluded. If you need to enquire about a warranty claim, please either contact Shadowspec direct or the sales agent you purchased your Serenity from. -
Page 14: Product Registration And Warranty Validation
Shadowspec Fabric Canopies are manufactured from the most durable marine fabrics, thread and designs available. Shadowspec Fabric Canopies should be cleaned on a regular basis so dirt isn’t allowed to build-up and become embedded in the fabric. You can clean your Fabric Canopy wvithout removing it from the Frame if you prefer, or it’s as easy to remove as it was to put on. -
Page 15: Section 3 - Assembly, Installation And Operation
7'0'' 2071mm 6'10'' 2226mm 7'4'' 2149mm 7'0'' *Freestanding Base installations will add 165mm to these measurements. Adding Freestanding Base wheels also will add a further 45-80mm/2-3’’. All sizings are +/- 2.5mm / 3/32’’ and subject to change without notice. www.shadowspec.com... -
Page 16: Stage 2 Naming And Checking Your Umbrella Parts
When unpacking your Serenity umbrella please check you have all the correct parts pictured below before beginning the assembly. If any parts are missing please contact support@shadowspec.com to create a ticket to resolve. You will need to refer back to this page so why not earmark it for quick reference whilst you’re assembling your umbrella. -
Page 17: Stage 3 Installation Of Your Umbrella Mount
First, unscrew the Security Lock Screw under the Rotating Lock Lever - See Step 2 Remove Spigot from your umbrella Mast. Step 3 Affix the Spigot to your mounting option of choice (Options 1 - 4). Figure 4 - Square and Octagonal Frame Orientation Square Umbrella Octagon Umbrella Umbrella Mount Umbrella Mount Figure 5 - Location of Security Lock Screw Security Lock Screw Serenity Spigot www.shadowspec.com... -
Page 18: Option 1 - Freestanding Base
OPTION 1 - FREESTANDING BASE For installation you will require: • An adjustable spanner (there is a No. 17 Ring Spanner included with umbrella box) • Hex Key Set - Included in your umbrella box • The complete Freestanding Base kit. See Figure 6 of included components •... -
Page 19: Option 2 - In-Ground Anchor
Allow at least 24-hours for the concrete to cure - your chosen product will have a recommended time on the packaging so double check this. Step 9 Slide your Rotation Plate over the Spigot and move on to Stage 4. Figure 7 - In-Ground Anchor In-Ground Anchor Serenity Spigot Ground level Rotation Plate Screws NOTE: Do not cover the Spigot www.shadowspec.com... - Page 20 Figure 8 - In-Ground Anchor Installation, Mast Orientation and Suggested Specifications Installation Orientation Serenity Umbrella Frame to face direction of arrow Serenity Spigot Ground level Flare out 500mm / 1’8’’ ft...
-
Page 21: Option 3 - Surface Plate
Use your bolts to secure the Surface Plate and Spigot to the chosen spot. Slide your Rotation Plate over the Spigot and move on to Stage 4. Step 8 Figure 9 - Surface Plate Serenity Spigot Surface Plate Rotation Plate Surface Plate Bolts www.shadowspec.com... - Page 22 Figure 10 - Securing Surface Plate to Wooden Deck (suggestion only) Serenity Spigot 12mm / 1/2” CSK bolts running right through and fastened with a washer and Surface Plate locknut NOTE: Washer between Standard 20mm / 0.8” Surface Plate and decking timber decking Additional 100mm x 100mm / 4” x 4” 200mm x 50mm / 8”...
-
Page 23: Option 4 - Wall Mount
Drill holes ensuring that they are parallel to each other and secure the Wall Mount bracket to the wall. Step 7 Slide your Rotation Plate over the Spigot and move on to Stage 4. Figure 12 - Wall Mount Serenity Spigot Wall Mount Serenity Spigot NOTE: Refer to Spigot orientation diagram - Figure 4 www.shadowspec.com... -
Page 24: Stage 4 Assembling And Mounting Your Umbrella
ASSEMBLING AND MOUNTING YOUR UMBRELLA 4A) ASSEMBLING YOUR UMBRELLA: The Shadowspec Serenity comes fully assembled which is great! Remove the Serenity Umbrella from your box packaging and make sure you place it somewhere where the surface of your umbrella parts won’t get scuffed or scratched. -
Page 25: Stage 4C - Fabric Canopy Installation
Lift the Shadowglide Carriage to the top, slowly, to test the tension of the Fabric Canopy. See Figure 14 for Step 6 tension adjustability options for the Fabric Canopy. Step 7 Enjoy! Figure 15 - Fabric Canopy Installation - Before and After Serenity Frame and Fabric Serenity Frame Canopy fully installed www.shadowspec.com... -
Page 26: Stage 5 Operating Your Umbrella
STAGE 5 OPERATING YOUR UMBRELLA Your Shadowspec Serenity is engineered to be easy to use. Squeeze the Shadowglide Button to release the Carriage from its closed position and push it up the Mast until it locks in place. Step 1 To open your umbrella, push down onto the Shadowglide Button located in the Shadowglide Handle and assist the opening by pushing the Carriage with the with the palm of your hand upwards until it locks into place. -
Page 27: Section 4 - Accessories
SECTION 4 – ACCESSORIES 4A) LED LIGHTS All Shadowspec Serenity Umbrellas are supplied with an LED Light built into the into the lower hub of each Frame - See Figure 17. The LED Light can be powered by our optional Shadowspec SS-1 Bluetooth® Smart Battery. This battery makes for easy installation without the need for electrical wiring to be installed to your umbrella. -
Page 28: Ss-1 Bluetooth® Smart Battery And Charger
RECHARGEABLE SMART BATTERY CARE AND RULES FOR USE • Only use the Shadowspec Charging Adapter to charge the Shadowspec SS-1 Bluetooth LED Smart Battery. • Please charge your SS-1 Smart Battery completely before the very first time it is used. - Page 29 Contact our in-house shade and outdoor specialists for more information and advice. AUSTRALIA NEW ZEALAND UNITED STATES Australian Nest Heron Base North American Nest Atlanta, Georgia Laverton North, Victoria Whangarei, Northland 844 888 5577 1800 144 155 0800 144 155 www.shadowspec.com www.shadowspec.com.au www.shadowspec.co.nz...
