Shadowspec SU4 Owner's Manual

Cantilever umbrella
Hide thumbs Also See for SU4:

Advertisement

Quick Links

SU4
Cantilever Umbrella
(with 360° Rotation & Tilting functions)
OWNERS MANUAL
Installation, Operation,
Care & Guarantee
www.shadowspec.com
www.shadowspec.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SU4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Shadowspec SU4

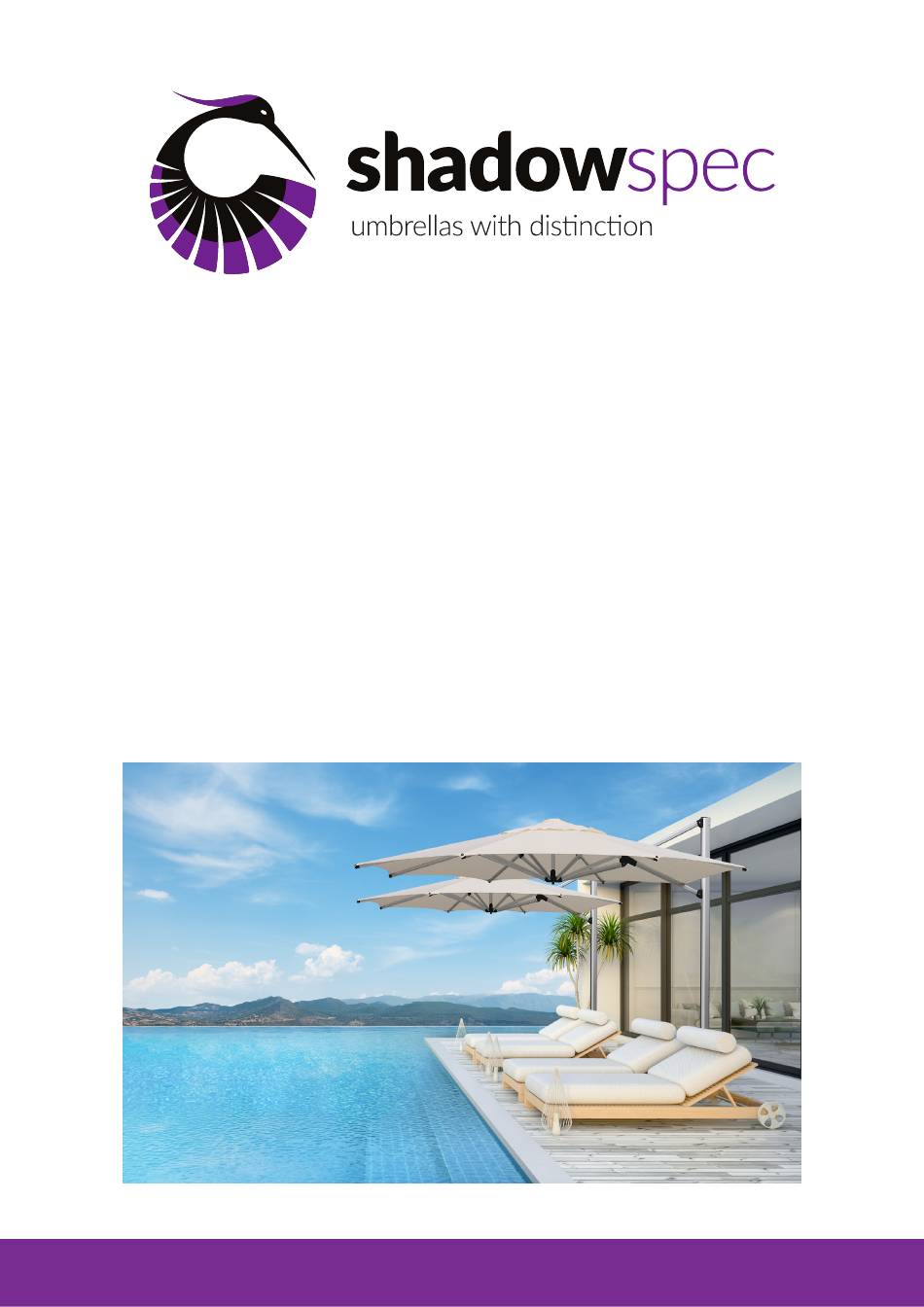

  • Page 1 Cantilever Umbrella (with 360° Rotation & Tilting functions) OWNERS MANUAL Installation, Operation, Care & Guarantee www.shadowspec.com www.shadowspec.com...
  • Page 2: Table Of Contents

    - Option 2 - Surface Plate (Concrete Mount) - Option 3 - Surface Plate (Timber Deck Mount) - Option 4 - Portable Base Stage 3 - Assembling Notes Stage 4 - Operating the Umbrella SECTION 2 - Umbrella Care & Maintenance SECTION 3 - Warranty www.shadowspec.com...
  • Page 3: Section 1 - Installation, Assembly & Operation

    • Remember the SU4 has the ability to tilt and rotate 360˚ so if you wish to utlise this function ensure that you allow the necessary space around the umbrella for this.
  • Page 4: Dimensions

    DIMENSIONS: 3.5m/11’5” 2.125m/7’0” 2.065m/6’8” 0.940m/3’1” 0.880m/4’7” 0.450m/1’5” 3.480m/11’4” 3.595m/11’8” 2.723m/8’11” Octagon NOTE: All measurements are rounded and are subject to change. www.shadowspec.com...
  • Page 5: Stage 2 - Selection & Installation Of The Umbrella Fixing

    STAGE 2 - Selection & Installation of the Umbrella Fixing Now that you have selected a location for your umbrella the next step is to ensure that you have ordered the correct fixing option for your umbrella. There are three options available: •...
  • Page 6: Option 1 - In-Ground Anchor

    fitting. REMOVAL: To remove your umbrella for seasonal storage or to move it to another surface plate/ in-ground anchor, simply undo the spigot bolts and remove the umbrella from the in-ground anchor. www.shadowspec.com...
  • Page 7: Option 2 - Surface Plate (Concrete Mount)

    OPTION 2 - Surface Plate (Concrete Mount) STEP 1 Bolt Surface Plate to Concrete Fix the surface plate to an existing Spigot concrete slab using concrete bolts Spigot Bolts (M10x100mm). Spigot Plate STEP 2 Bolt Spigot to Surface Plate Surface Plate Concrete Bolt the spigot plate to the surface plate Countersunk holes...
  • Page 8: Option 3 - Surface Plate (Timber Deck Mount)

    The spigot bolts should be left just loose enough to allow final adjustment of the orientation of the umbrella if necessary, then once correctly orientated,fully tighten the spigot bolts. You are now ready to operate your umbrella! www.shadowspec.com...
  • Page 9: Option 4 - Portable Base

    OPTION 4 - Portable Base Portable Base flange Portable Base STEP 1 Assemble Portable Base Attach all four portable base feet to base, one to each corner. Adjust each foot to get base level. STEP 2 Weight the Base Weight the base using 8/400mmx400mmx40mm concrete pavers, two layers per quarter.
  • Page 10: Stage 3 - Assembling Notes

    The finished result should look as per the image below. Two Person Install The SU4 Umbrella is supplied with the spigot already bolted in place to the umbrella mast. The spigot plate can be bolted to the In-ground Anchor/Surface Plate/Portable Base with the umbrella left fixed to the spigot if 2 people are available for the install.
  • Page 11: Stage 4 Operating The Umbrella

    STAGE 4 Operating the Umbrella Your Shadowspec SU4 Umbrella has three positions, apart from closed: (1) Tilt position 1 (2) Tilt position 2 (3) Horizontal position 3 POSITIONS Positions Closed position Tilt position 1 – blocks extremely angular sun Tilt position 2 – blocks moderately angular sun Horizontal position NOTE –...
  • Page 12 TO OPEN THE SU4 UMBRELLA CANOPY The following instructions will walk you through the sequential progression of opening the su4 umbrella as shown in the picture on the previous page. At any time, you may skip a position and open to the desired position.
  • Page 13 This technique is similar to the way a parachute is folded and is especially important when folding the SU4 Umbrella canopy for seasonal storage or when the SU4 Umbrella is to be left in the closed position for an extended period of time.
  • Page 14: Section 2 - Umbrella Care & Maintenance

    FABRIC CLEANING INSTRUCTIONS: SHADOWSPEC Umbrella canopies are manufactured from some of the most durable and state-of-the-art marine fabrics and threads available, including Sunbrella and Dickson-Constant acrylic fabrics, along with other proven high-performance, UV stable materials.
  • Page 15: Section 3 - Warranty

    • Repair costs by a third party. To avoid possible wind damage, it is recommended that your SU4 umbrella be closed in wind gusts exceeding 40km/h. This is subject to the umbrella being sufficiently anchored. This warranty does protect against the umbrella canopy fabric becoming unserviceable due to strength loss from normal usage and exposure conditions.
