Terminal Identification - Altronix eFlow102NV Installation Manual

Power Supply/Charger
Terminal Legend
L, N
– DC +
Trigger EOL
Supervised
NO, GND RESET
+ AUX –
AC Fail
NC, C, NO
Bat Fail
NC, C, NO
– BAT +
Power Distribution Module
Terminal Legend
PD8UL/PD8ULCB
1P to 8P
1N to 8N

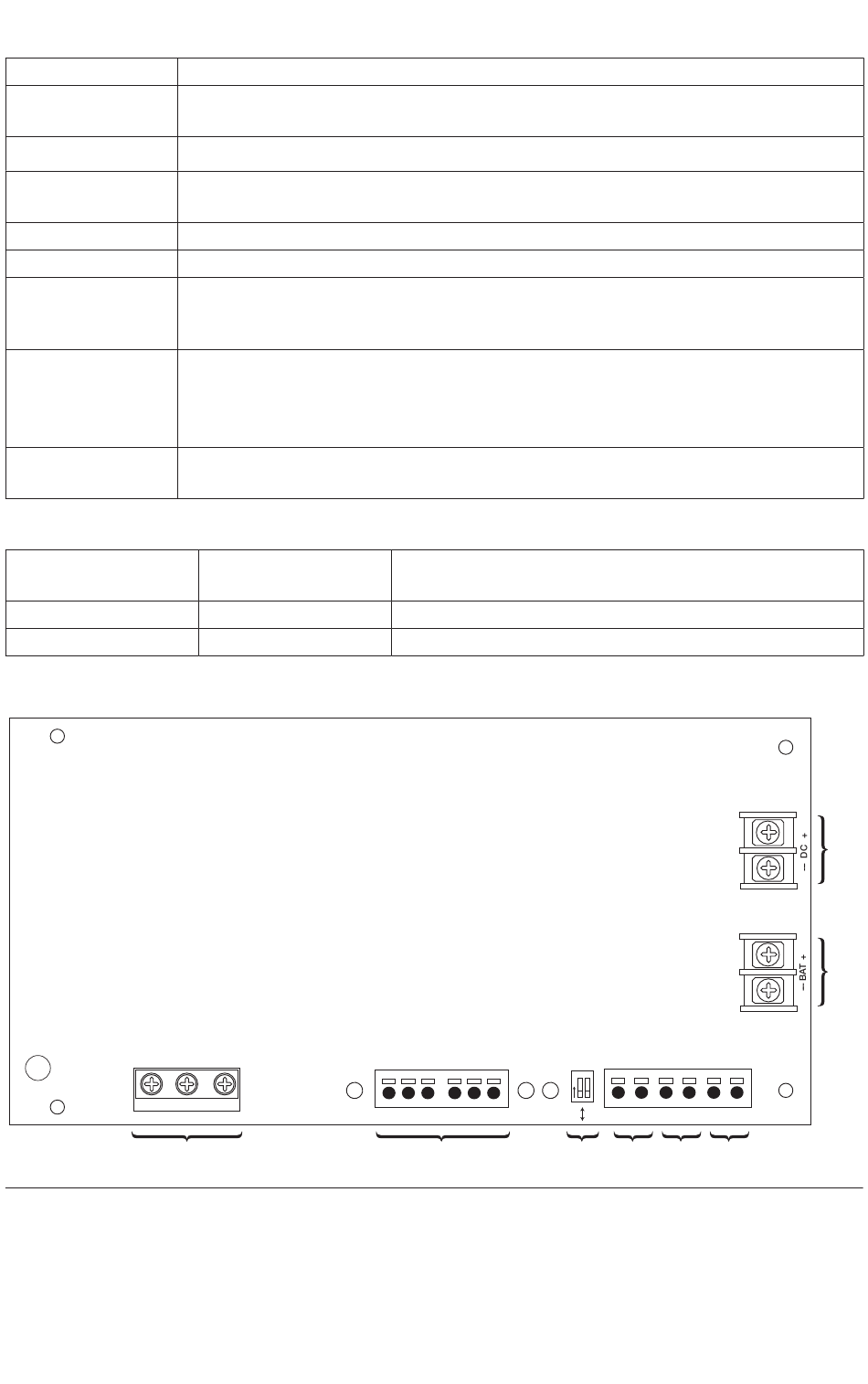

Fig. 1 - eFlow102NV Board configuration
5A 250V
L
Trouble/Time Limited Warning of Stand-by Batteries:
The Time Limited Warning circuit must be connected for local or remote annunciation with an Amber or Red
LED to indicate DC Trouble (low battery, loss of battery or when 95% of the stand-by battery has been de-
pleted). Connect the circuit to the Batt Fail relay contacts to an appropriate input of a Burglar Alarm or Access
Control Panel. The following figure shows the circuitry needed for local annunciation.
eFlow102NV Series

Terminal Identification:

Function/Description
Connect 220VAC 50/60Hz to these terminals: L to hot, N to neutral (non power-limited)
(Fig. 1a, pg. 5).
12VDC nominal @ 10A continuous output (power-limited output) (Fig. 1h, pg. 5).
Fire Alarm Interface trigger input from a short or FACP. Trigger inputs can be normally
open, normally closed from an FACP output circuit (power-limited input) (Fig. 1d, pg. 5).
FACP interface latching or non-latching (power-limited) (Fig. 1e, pg. 5).
Auxiliary power-limited output rated @ 1A (unswitched) (Fig. 1f, pg. 5).
Indicates loss of AC power, e.g. connect to audible device or alarm panel.
Relay normally energized when AC power is present.
Contact rating 1A @ 30VDC (power-limited) (Fig. 1b, pg. 5).
Indicates low battery condition, e.g. connect to alarm panel. Relay normally energized
when DC power is present. Contact rating 1A @ 30VDC.
A removed battery is reported within 5 minutes.
Battery reconnection is reported within 1 minute (power-limited) (Fig. 1b, pg. 5).
Stand-by battery connections. Maximum charge current 1.54A (non power-limited)
(Fig. 1g, pg. 5).
Terminal Legend
PD16W/PD16WCB
1P to 16P
1N to 16N
G N
1a
Function/Description
Positive DC power outputs.
Negative DC power outputs.
AC FAIL BAT FAIL
AC1
NC C NO NC C NO
1b
AC DELAY SHUTDOWN
O
N
AC DC
1 min. enable
TRIGGER EOL NO
2 hr. disable
SUPERVISED RESET
1c 1d 1e
1h
1g
GND
+ AUX –
1f
- 5 -
