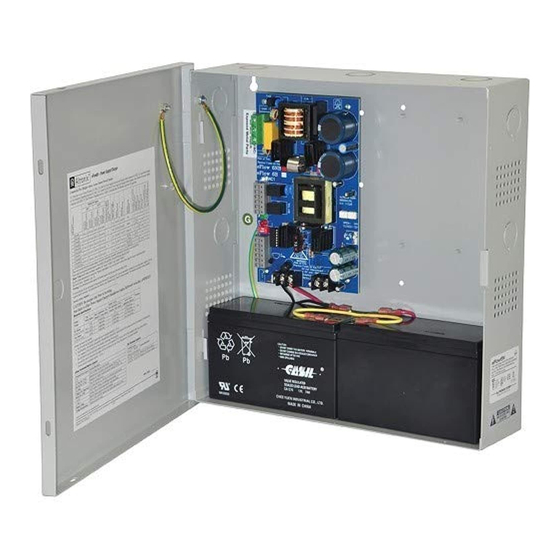

eFlow6N Series
Power Supply/Chargers
Models Include:
eFlow6N/
eFlow6NX
- 6A @ 12VDC or 24VDC
eFlow6N8/
eFlow6NX8
- 6A @ 12VDC or 24VDC
- Eight (8) Fused Outputs
eFlow6N16/
eFlow6NX16
- 6A @ 12VDC or 24VDC
- Sixteen (16) Fused Outputs
Installation Guide
Rev. 6NRP020819
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
eFlow6N8D/
eFlow6NX8D
- 6A @ 12VDC or 24VDC
- Eight (8) PTC Protected
Class 2 Power-Limited Outputs
eFlow6N16D/
eFlow6NX16D
- 6A @ 12VDC or 24VDC
- Sixteen (16) PTC Protected
Class 2 Power-Limited Outputs
Altronix Corp.
140 58th St. Brooklyn, NY
More than just power.
TM
Advertisement
Table of Contents
Related Manuals for Altronix eFlow6N Series
Summary of Contents for Altronix eFlow6N Series
- Page 1 Series Power Supply/Chargers Models Include: eFlow6N/ eFlow6NX - 6A @ 12VDC or 24VDC eFlow6N8/ eFlow6N8D/ eFlow6NX8 eFlow6NX8D - 6A @ 12VDC or 24VDC - 6A @ 12VDC or 24VDC - Eight (8) Fused Outputs - Eight (8) PTC Protected...
- Page 2 Overview: Altronix eFlow6N power supply/chargers convert a 120VAC / 60Hz input to a 12VDC or 24VDC nominal output (see Power Supply Configuration Reference Chart and Specifications). eFlow6N Series Power Supply Configuration Reference Chart: Nominal DC Outputs [DC] [AUX] eFlow6N –...
-
Page 3: Specifications
Prevents deep battery discharge. eFlow6N series Power Supply Configuration Fuse/PTC Ratings: Reference Chart, pg. 2. • Auxiliary Class 2 power-limited output • Refer to eFlow6N Series Power Supply rated @ 1A (unswitched). Configuration Reference Chart, pg. 2. • Overvoltage protection. Visual Indicators: Battery Backup: •... -
Page 4: Maintenance
[Trigger EOL Shutdown] (Fig. 1e, pg. 6). 12. For Access Control Applications: mount UL Listed tamper switch (Altronix model TS112 or equivalent) at the top of the enclosure. Slide tamper switch bracket onto the edge or the enclosure approx. 2” from the right side (Fig. -
Page 5: Led Diagnostics
(Fig. 1g, pg. 6). Power Distribution Module Terminal Legend Terminal Legend Function/Description PD8UL/PD8ULCB PD16W/PD16WCB 1P to 8P 1P to 16P Positive DC power outputs. 1N to 8N 1N to 16N Negative DC power outputs. eFlow6N Series Installation Guide - 5 -... - Page 6 Wire the second leg of the power source to the indicating lamp in series with the battery fail relay contact terminals marked [BAT FAIL - C, NO] (Fig. 2, pg. 6). AC FAIL BAT FAIL POWER NC C NO NC C NO SOURCE RED INDICATING LAMP - 6 - eFlow6N Series Installation Guide...
-
Page 7: Power Distribution Module(S)
From From Power Power Supply Supply Board Board (Factory (Factory Installed) Installed) For continuous protection against risk of fire replace fuses with same type and rating 3.5A 250V eFlow6N Series Installation Guide - 7 -... - Page 8 Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing. 7AH Rechargeable batteries are the largest batteries that can fit in this enclosure. A UL Listed external battery enclosure must be used if using 12AH, 40AH or 65AH batteries. - 8 - eFlow6N Series Installation Guide...
- Page 9 Correct Wire Handling Handling External Jacketed Shield Wire Insulation * Outputs are non power-limited: eFlow6N, eFlow6N8, eFlow6N16. Outputs are Class 2 power-limited: eFlow6N8D, eFlow6N16D. Pull back Solid Copper external jacketed Conductors shield approx. 1/2”. eFlow6N Series Installation Guide - 9 -...
- Page 10 Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing. 12AH Rechargeable batteries are the largest batteries that can fit in this enclosure. A UL listed external battery enclosure must be used if using 40AH or 65AH batteries. - 10 - eFlow6N Series Installation Guide...
- Page 11 Fig. 8a Handling Handling External Jacketed Shield Wire * Outputs are non power-limited: Insulation eFlow6NX, eFlow6NX8, eFlow6NX16. Outputs are Class 2 power-limited: eFlow6NX8D, eFlow6NX16D. Pull back Solid Copper external jacketed Conductors shield approx. 1/2”. eFlow6N Series Installation Guide - 11 -...
-
Page 12: Appendix A - Ul Listed Compatible Devices
R-20T** PR-2* R-24T** PR-3* R-10E** System Sensor System Sensor R-14E** EOLR-1 R-10T** R-20E** R-14T** R-24E** Compatible only with eFlow6N, eFlow6NX, eFlow6N8, eFlow6NX8, eFlow6N16, eFlow6NX16. ** Compatible only when unit is set for 24VDC. - 12 - eFlow6N Series Installation Guide... - Page 13 (30.5mm) 0.75” 0.75” 12.5” (317.5mm) 1.20” 1.20” (19.1mm) (19.1mm) (30.5mm) (30.5mm) 11.0” (279.4mm) 0.9375” (23.8mm) 1.40” 1.40” (35.6mm) (35.6mm) 0.9375” (23.8mm) 3.25” (82.6mm) 3.25” (82.6mm) 1.0” (25.4mm) 1.0” 1.0” 10.5” (266.7mm) (25.4mm) (25.4mm) eFlow6N Series Installation Guide - 13 -...
- Page 14 1.5” 4.615” (117.2mm) 4.615” (117.2mm) (38.1mm) (38.1mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty IIeFlow6N Series...
- Page 15 - UL Listed in the U.S. and Canada. - Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN. - Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change, output state change and unit temperature.
- Page 16 3.5A 910mV eFlow6NX, eFlow6NX8, eFlow6NX8D, eFlow6NX16, eFlow6NX16D Overview: The eFlow6N series power supply/chargers convert a 120VAC, 60Hz input to a 12VDC or 24VDC output. Stand-by Specifications: Burg. Applications Fire Applications 4 hr. Stand-by/ 24 hr. Stand-by/ Access Control Battery 15 min.
