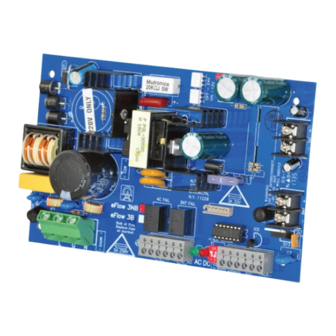

- Page 1 Series Power Supply/Charger Boards Models Include: eFlow3NBV eFlow102NBV - 12 or 24VDC @ 2A - 12VDC @ 10A eFlow4NBV eFlow104NBV - 12 or 24VDC @ 4A - 24VDC @ 10A eFlow6NBV - 12 or 24VDC @ 6A Installation Guide More than just power.
-
Page 2: Table Of Contents
Table of Contents: Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 3 Specifications . -
Page 3: Overview
Overview: Altronix eFlowNBV power supply/chargers convert a 220VAC (working range 198VAC - 256VAC), 50/60Hz input to a 12VDC or 24VDC output . Specifications: Output Voltage (Current) Maximum Altronix Input Rating Aux. Output Charge 12VDC 24VDC Model Nuber 220VAC 50/60Hz (unswitched) -
Page 4: Stand-By Specifications
Stand-by Specifications: eFlow3NBV: Burg. Applications Fire Applications Access Control Battery 4 hr. Stand-by/15 min. Alarm 24 hr. Stand-by/5 min. Alarm ApplicationsStand-by 0 .4A/2A – 1 .5 Hours/2A 12AH 1A/2A 0 .3A/2A 3 .5 Hours/2A 40AH 2A/2A 1 .2A/2A Over 4 Hours/2A 65AH 2A/2A 1 .5A/2A... -
Page 5: Installation Instructions
Installation Instructions: Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, the Canadian Electrical Code and with all local codes and authorities having jurisdiction . Product is intended for indoor use only . 1 . Mount the eFlowNBV power supply/charger in desired location/enclosure (mounting hardware included) . Use metal standoffs for the bottom mounting holes to provide sufficient grounding for the board . -
Page 6: Wiring
Wiring: Use 18 AWG or larger for all low voltage power connections . Note: Take care to keep power-limited circuits separate from non power-limited wiring (220VAC, Battery) Maintenance: Unit should be tested at least once a year for the proper operation as follows: Output Voltage Test: Under normal load conditions, the DC output voltage should be checked for proper voltage level . - Page 7 Notes: Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty MEMBER IIeFlowNBV F23U eFlowNBV Power Supply/Chargers Installation Guide...
- Page 8 - UL Listed in the U .S . and Canada . - Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN . - Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change, output state change and unit temperature .
