Altronix eFlow102NB Installation Manual

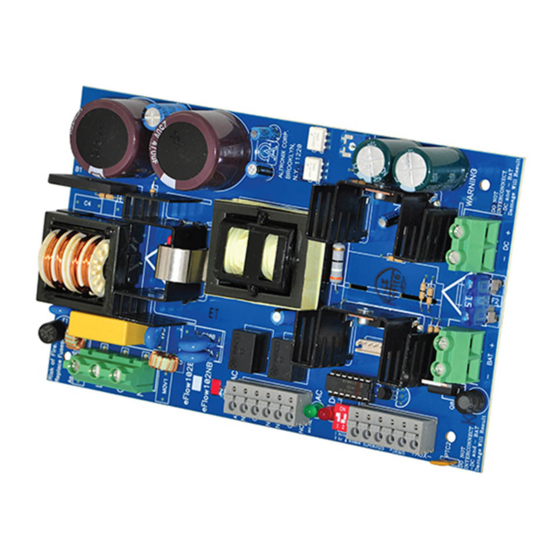

The eFlow102NB power supply/charger converts a 120VAC / 60Hz input to a 12VDC @ 10A output.
Agency Listings:
• UL Recognized component for: Access Control
System Units (UL 294), Power Supplies for use with
Burglar-Alarm Systems (UL 603), Power Supplies
for Fire Protective Signaling Systems (UL 1481).
• cUL Listed ULC-S318-96: Power Supply for Burglar
Alarm Systems.
Input Rating:
• Input 120VAC 60Hz, 3.5A.
Output:
• 12VDC output.
• 10A continuous supply current.
• Aux. Power-Limited output rated @ 1A (unswitched).
• Overvoltage protection.
• Filtered and electronically regulated outputs.
Battery Backup:
• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current 1.54A.
• Automatic switch over to stand-by battery when AC fails.
Transfer to stand-by battery power is instantaneous with
no interruption.
Battery
7AH
12AH
40AH
65AH
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, the Canadian
Electrical Code and with all local codes and authorities having jurisdiction. Product is intended for indoor use only.
1. Mount the eFlow102NB in desired location/enclosure.
2. Connect unswitched AC power (120VAC 60Hz) to terminals marked [L, G, N] (Fig. 1a, pg. 3). Use 14 AWG or
larger for all power connections. Secure green wire lead to earth ground.
Keep power-limited wiring separate from non power-limited wiring (120VAC 60Hz Input, Battery Wires).
Minimum 0.25" spacing must be provided.
CAUTION: Do not touch exposed metal parts. Shut branch circuit power before installing or servicing equipment.
There are no user serviceable parts inside. Refer installation and servicing to qualified service personnel.
3. Measure output voltage before connecting devices. This helps avoiding potential damage.
4. Connect devices to be powered to terminals marked [-- DC +] (Fig. 1h, pg. 3).
For auxiliary device connection this output will not be affected by Low Power Disconnect or Fire Alarm Interface.
Connect device to terminals marked [+ AUX -- ] (Fig. 1f, pg. 3).
eFlow102NB
Installation Guide
eFlow102NB - Power Supply/Charger
Overview:

Specifications:

Stand-by Specifications:
Burg. Applications
4 hr. Stand-by/
15 min. Alarm
0.4A/10A
1A/10A
6A/10A
6A/10A

Installation Instructions:

Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
Fire Alarm Disconnect:
• Supervised Fire Alarm disconnect (latching or
non-latching) 10K EOL resistor. Operates on a normally
open (NO) or normally closed (NC) trigger.
Supervision:
• AC fail supervision (form "C" contacts).
• Battery fail & presence supervision (form "C" contacts).
• Low power shutdown. Shuts down DC output terminals
if battery voltage drops below 80% of nominal.
Prevents deep battery discharge.
Visual Indicators:
• Green AC Power LED indicates 120VAC present.
• AC input and DC output LED indicators.
Additional Features:
• Short circuit and overload protection.
Board Dimensions (approximate L x W x H):
7.5" x 4.6" x 1.75" (190.5 mm x 116.84 mm x 44.45 mm)
Fire Applications
24 hr. Stand-by/
5 min. Alarm
N/A
0.3A/10A
1.2A/10A
1.5A/10A
Rev. EF102NB-111511
Access Control
Applications
Stand-by
5 Mins./10A
15 Mins./10A
Over 2 Hours/10A
Over 4 Hours/10A
- 1 ­
