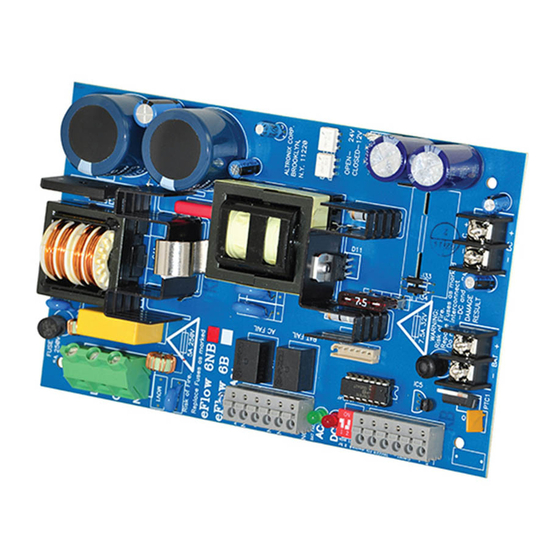

Power supply/charger boards, 12 or 24vdc 4/10/6a

Advertisement

Quick Links

Power Supply/Charger Boards

Installation Guide

Models Include:
eFlow4NB
- 12 or 24VDC @ 4A
eFlow6NB
- 12 or 24VDC @ 6A
Rev. EFNB-10182016
eFlow102NB
- 12VDC @ 10A
eFlow104NB
- 24VDC @ 10A
More than just power.
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eFlow4NB and is the answer not in the manual?

Questions and answers

Summary of Contents for Altronix eFlow4NB

  • Page 1: Installation Guide

    Power Supply/Charger Boards Installation Guide Models Include: eFlow4NB eFlow102NB - 12 or 24VDC @ 4A - 12VDC @ 10A eFlow6NB eFlow104NB - 12 or 24VDC @ 6A - 24VDC @ 10A More than just power. Rev. EFNB-10182016...
  • Page 2: Specifications

    Overview: Altronix eFlow power supply/chargers convert a 120VAC / 60Hz input to a 12VDC or 24VDC output. Specifications: Output Voltage (Current) Altronix Input Power- Aux. Power-Limited Maximum Model Rating Limited Output Charge 12VDC 24VDC Nuber 120VAC 60Hz Output (unswitched) Current eFlow4NB 3.5A...
  • Page 3 Stand-by Specifications: eFlow4NB: Burg. Applications Fire Applications Access Control Battery 4 hr. Stand-by/15 min. Alarm 24 hr. Stand-by/5 min. Alarm Applications Stand-by 0.4A/4A – 15 Mins./4A 12AH 1A/4A 0.3A/4A 35 Mins./4A 40AH 4A/4A 1.2A/4A Over 4 Hours/4A 65AH 4A/4A 1.5A/4A...
  • Page 4: Installation Instructions

    Installation Instructions: Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, the Canadian Electrical Code and with all local codes and authorities having jurisdiction. Product is intended for indoor use only. 1. Refer to Sub-Assembly Installation Instructions for mounting Rev. MS050913. 2.
  • Page 5: Terminal Identification

    Legend Connect 120VAC 60Hz to these terminals: L to hot, N to neutral, L, G, N G to ground (non power-limited) (Fig. 1a, pg. 4). eFlow4NB: 12VDC or 24VDC @ 4A continuous output (Power-Limited output). – DC + eFlow6NB: 12VDC or 24VDC @ 6A continuous output (Non Power-Limited output).
  • Page 6 UL Model Reference Chart: UL Listed Sub-Assembly Power Supply Series Enclosures Board eFlow4NB eFlow4N Maximal11F BC300, BC400, BC800 (Maximal), Trove1 and Trove2 eFlow6NB eFlow6N Maximal33F BC300, BC400, BC800 (Maximal), Trove1 and Trove2 eFlow102NB eFlow102N Maximal55F BC300, BC400, BC800 (Maximal), Trove1 and Trove2...
  • Page 7 Notes: Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIeFlowNB D24R eFlowNB - Power Supply/Chargers...
  • Page 8 - UL Listed in the U.S. and Canada. - Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN. - Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change, output state change and unit temperature.
