Altronix eFlow102NV Installation Manual page 7

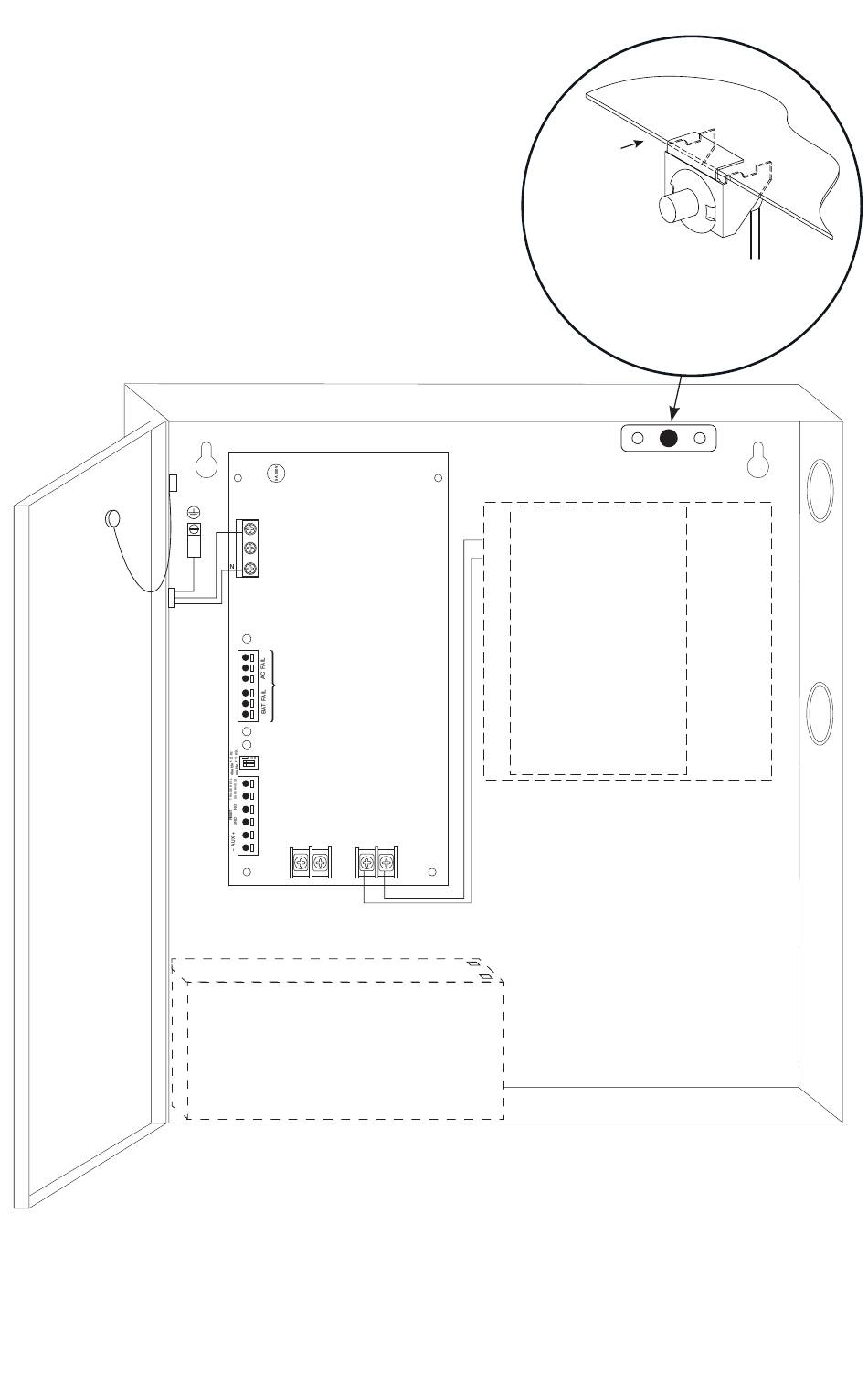

Fig. 5 - eFlow102NV configuration
Door
Wire
Strap
(from
Enclosure
to Door)
CAUTION: Power supply board is 12VDC. Use only one (1) 12VDC stand-by battery.
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
7AH Rechargeable batteries are the largest batteries that can fit in this enclosure.
An external battery enclosure must be used if using 12AH, 40AH or 65AH batteries.
* Outputs are non power-limited: eFlow102NV, eFlow102N8V, eFlow102N16V.
Outputs are power-limited: eFlow102N8DV, eFlow102N16DV.
eFlow102NV Series
Ground
Lug
L
220VAC
G
power mains
AC1
NC
C
Battery and AC
NO
Supervision
NC
Circuit
C
NO
AC
DC
AC DELAY
SHUTDOWN
Battery
Connections
--- BAT +
Optional Rechargeable
Stand-by Battery
--- DC +
Enclosure
Edge of
Enclosure
Tamper Switch
(included)
To Access Control Panel or
UL Listed Reporting Device
PD8/PD8CB
PD16WCB
DC Output to devices*
(refer to Fig. 3a, 3b, 4a or 4b
for board configuration pg. 6)
PD16W/
- 7 -
