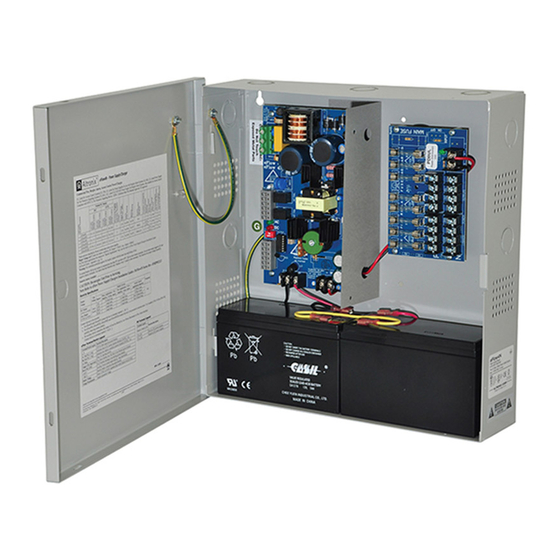

Altronix eFlow Series Installation Manual

Power supply/chargers
Hide thumbs Also See for eFlow Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Power Supply/Chargers
Installation Guide
Models Include:
eFlow4N/eFlow4NX
- 4A @ 12VDC or 24VDC Class 2 Power-Limited Output
eFlow4N8/eFlow4NX8
- 4A @ 12VDC or 24VDC
- Eight (8) Class 2 Power-Limited Fused Outputs
eFlow4N8D/eFlow4NX8D
- 4A @ 12VDC or 24VDC
- Eight (8) Class 2 Power-Limited PTC Outputs
Rev. 4NRP052213
Installing Company: ________________ Service Rep. Name: ______________________________________
Address: ___________________________________________________ Phone #: _____________________
Altronix Corp.
140 58th St. Brooklyn, NY
More than just power.
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eFlow Series and is the answer not in the manual?

Questions and answers

Related Manuals for Altronix eFlow Series

Summary of Contents for Altronix eFlow Series

  • Page 1 - Eight (8) Class 2 Power-Limited Fused Outputs eFlow4N8D/eFlow4NX8D - 4A @ 12VDC or 24VDC - Eight (8) Class 2 Power-Limited PTC Outputs Altronix Corp. 140 58th St. Brooklyn, NY Rev. 4NRP052213 More than just power. Installing Company: ________________ Service Rep. Name: ______________________________________...
  • Page 2 Overview: Altronix eFlow4N power supply/chargers convert a 120VAC / 60Hz input to a 12VDC or 24VDC nominal output (see Power Supply Configuration Reference Chart and Specifications). eFlow4N Series Power Supply Configuration Reference Chart: Nominal DC Outputs [DC] [AUX] eFlow4N –...

  • Page 3: Specifications

    Specifications: Input: Supervision: • 120VAC, 60Hz. • AC fail supervision (form “C” contacts). • Battery fail & presence supervision Output: (form “C” contacts). • For output voltage and supply current refer to • Low power shutdown. Shuts down DC output eFlow4N series Power Supply Configuration terminals if battery voltage drops below 71-73% for Reference Chart, pg.

  • Page 4: Maintenance

    8. To delay AC reporting for 2 hrs. set dip switch [AC Delay] to OFF position (Fig. 1c, pg. 5). To delay AC reporting for 1 min. set dip switch [AC Delay] to ON position (Fig. 1c, pg. 5). Note: Must be set to ON position for Burglar Alarm Applications. 9.

  • Page 5: Terminal Identification

    Terminal Identification: Power Supply/Charger Terminal Legend Function/Description Connect 120VAC 60Hz to these terminals: L to hot, N to neutral (non power-limited) L, N (Fig. 1a, pg. 5). – DC + 12VDC or 24VDC nominal @ 4A continuous output (power-limited output) (Fig. 1h, pg. 5). Trigger EOL Fire Alarm Interface trigger input from a short or FACP.

  • Page 6: Power Distribution Module(S)

    Fig. 2 - Battery trouble indication - For Canadian use, a red indicating lamp must be visible from the exterior of this enclosure. Wire one leg of a UL Listed, power-limited power source to the indicating lamp. Wire the second leg of the power source to the indicating lamp in series with the battery fail relay contact terminals marked [BAT FAIL - C, NO] (Fig.
  • Page 7 Fig. 4 - eFlow4N configuration Edge of Enclosure Enclosure to Access Control Panel or Tamper Switch U.L. Listed (Not Included) Reporting Device Door Green Wire Lead 120VAC (ground) Strap power mains (from Non Power- Enclosure limited to Door) PD8UL/PD8ULCB Switch Detail Battery &...
  • Page 8 NEC Power-Limited Wiring Requirements for eFlow4N Models: Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all power-limited circuit wiring and non power-limited circuit wiring must enter and exit the cabinet through differ- ent conduits.
  • Page 9 Fig. 6 - eFlow4NX configuration Edge of Enclosure Enclosure to Access Control Panel or Tamper Switch U.L. Listed (Not Included) Reporting Device 120VAC power mains Battery & AC Supervision (non power-limited) Power-limited Circuit (power-limited) Class 1 Green Lead (ground) TRIGGER EOL RESET 2 hr.
  • Page 10 NEC Power-Limited Wiring Requirements for eFlow4NX Models: Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all power-limited circuit wiring and non power-limited circuit wiring must enter and exit the cabinet through differ- ent conduits.
  • Page 11 Enclosure Dimensions (BC300): eFlow4N, eFlow4N8, eFlow4N8D 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.6mm) 1.40” 4.85” 4.85” 1.40” (36mm) (123mm) (123mm) (36mm) 1.20” (31mm) 3.25” (83mm) 12.5” (318mm) 1.20” 1.20” 0.75” 0.75” (31mm) 11.0” (31mm) (19mm) (19mm) (279mm) 0.9375”...
  • Page 12 Enclosure Dimensions (BC400): eFlow4NX, eFlow4NX8, eFlow4NX8D 15.5” x 12” x 4.5” (393.7mm x 304.8mm x 114.3mm) 1.5” 4.615” 4.615” 1.5” (38.1mm) (117.22mm) (117.22mm) (38.1mm) 1.75” (44.45mm) 1.375” (34.925mm) 1.125” (28.575mm) 4.5” 12.23” 4.5” (310.64mm) (114.3mm) (114.3mm) 1.25” 1.1” 1.1” 1.25” (31.75mm) (27.94mm) (27.94mm)

  • Page 13: Appendix A - Ul Listed Compatible Devices

    Appendix A - UL Listed Compatible Devices A.1 Four (4) Wire Smoke Detectors Table A-1 below lists four (4) wire smoke detectors compatible with eFlow4N output. Alarm System Sensor Smoke Stand-by Detector Type Current Detector/Base Current (mA) (mA) B112LP Base 0.12 B114LP Base...
  • Page 14 - UL Listed in the U.S. and Canada. - Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN. - Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change, output state change and unit temperature.
  • Page 15 Notes: Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIeFlow4N Series B27R eFlow4N Series...
  • Page 16 Power Supply/Chargers Operating Guide Models Include: Output Input Auxiliary Power- Ripple Model 120VAC, Power-Limited Limited Voltage 12VDC 24VDC 60Hz Output (unswitched) eFlow4N, eFlow4N8, eFlow4N8D 3.5A 730mV eFlow4NX, eFlow4NX8, eFlow4NX8D Overview: The eFlow4N series power supply/chargers convert a 120VAC, 60Hz input to a 12VDC or 24VDC output. Stand-by Specifications: Burg.
