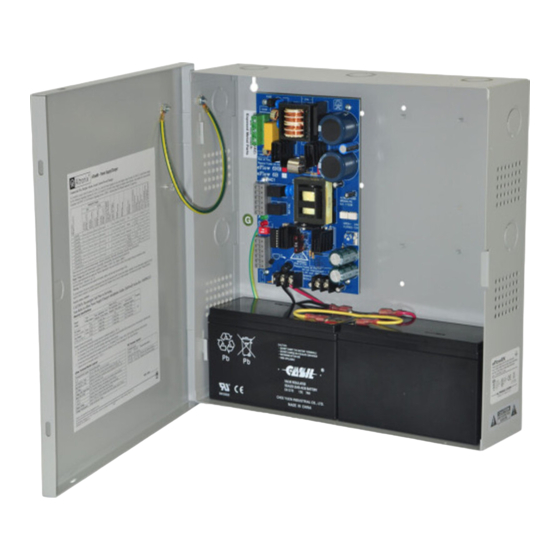

Installation Guide
Models Include:
eFlow6N/eFlow6NX
- 6 amp @ 12VDC or 24VDC
eFlow6N8/eFlow6NX8
- 6 amp @ 12VDC or 24VDC
- Eight (8) Fused Outputs
eFlow6N16/eFlow6NX16
- 6 amp @ 12VDC or 24VDC
- Sixteen (16) Fused Outputs
Rev. 6NRP052213
Installing Company: _____________________ Service Rep. Name: __________________________________________
Address: ________________________________________________________ Phone #: _________________________
eFlow6N8D/eFlow6NX8D
- 6 amp @ 12VDC or 24VDC
- Eight (8) PTC Outputs
eFlow6N16D/eFlow6NX16D
- 6 amp @ 12VDC or 24VDC
- Sixteen (16) PTC Outputs
Altronix Corp.
140 58th St. Brooklyn, NY
More than just power.™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix eFlow6N
Summary of Contents for Altronix eFlow6N
-
Page 1: Installation Guide

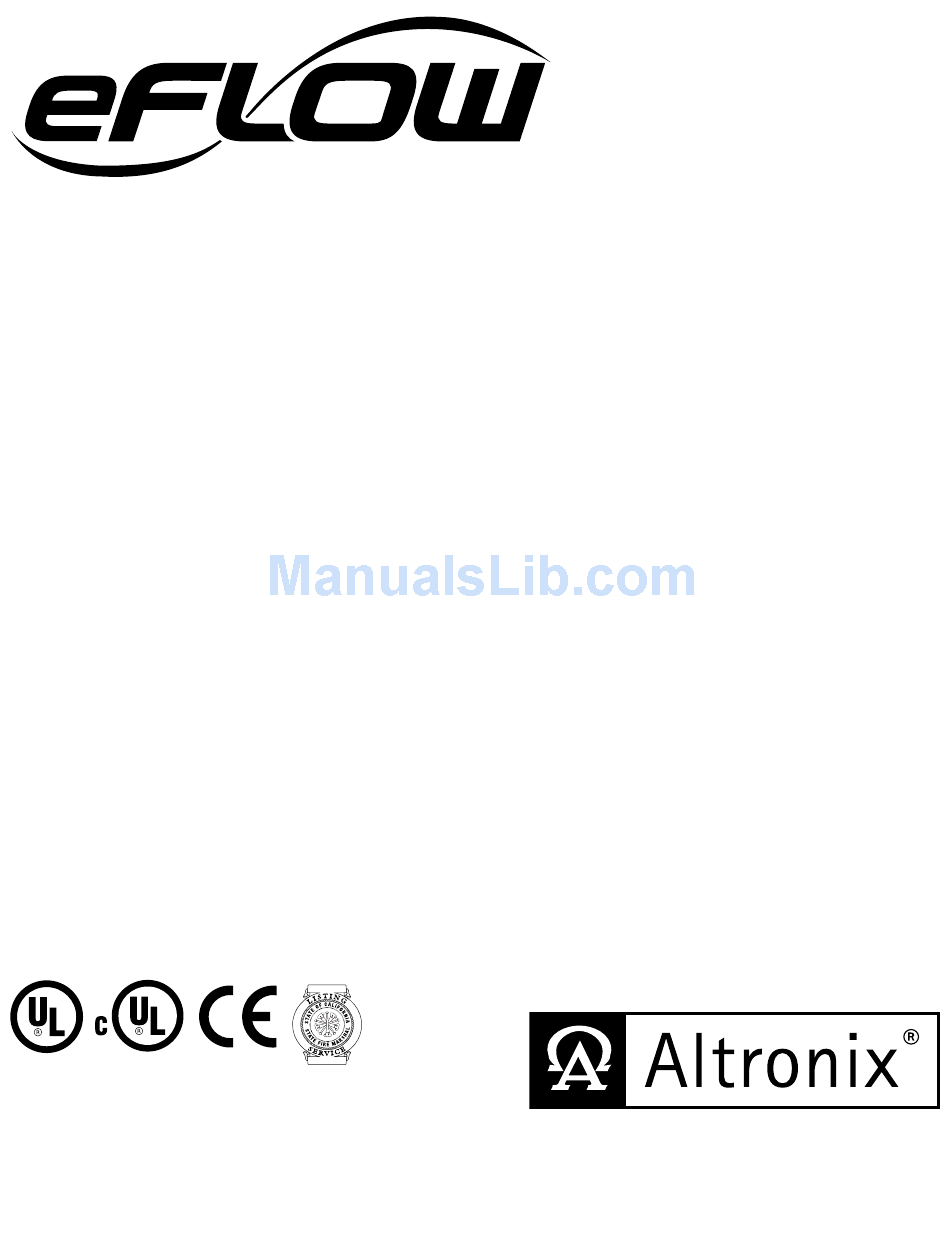

Power Supply/Chargers Installation Guide Models Include: eFlow6N/eFlow6NX - 6 amp @ 12VDC or 24VDC eFlow6N8/eFlow6NX8 eFlow6N8D/eFlow6NX8D - 6 amp @ 12VDC or 24VDC - 6 amp @ 12VDC or 24VDC - Eight (8) Fused Outputs - Eight (8) PTC Outputs... - Page 2 Overview: The eFlow6N power supply/chargers convert a 120VAC / 60Hz input, to a 12VDC or 24VDC nominal output (see Power Supply Configuration Reference Chart and Specifications). eFlow6N Series Power Supply Configuration Reference Chart: Nominal DC Outputs [DC] [AUX] eFlow6N –...
-
Page 3: Specifications
4. Measure output voltage before connecting devices. This helps avoiding potential damage. 5. Connect devices to be powered: a. For eFlow6N/eFlow6NX connect devices to terminals marked [- DC +] (Fig. 1h, pg. 3). b. For other Power Distribution Models connect devices to be powered to terminal pairs 1 to 8 marked [1P &... -
Page 4: Maintenance
Output Voltage Test: Under normal load conditions, the DC output voltage should be checked for proper voltage level eFlow6N: 12VDC or 24VDC nominal rated @ 6 amp max. Battery Test: Under normal load conditions check that the battery is fully charged, check specified voltage (12VDC @ 13.2 or 24VDC @ 26.4) both at the battery terminal and at the board terminals marked [-- BAT + ] to ensure... - Page 5 PD16W/PD16WCB 1P to 8P 1P to 16P Positive DC power outputs. 1N to 8N 1N to 16N Negative DC power outputs. Fig. 1 - eFlow6N Board configuration AC FAIL BAT FAIL AC DELAY SHUTDOWN 5A 250V 1 min. enable TRIGGER EOL...
-
Page 6: Power Distribution Module(S)
9 10 11 12 13 14 15 16 outputs outputs protected protected outputs outputs From From Power Power Supply Supply Board Board (Factory (Factory Installed) Installed) For continuous protection against risk of fire replace fuses with same type and rating. 3.5A 250V - 6 - eFlow6N Series... - Page 7 7AH Rechargeable batteries are the largest batteries that can fit in this enclosure. A UL Listed external battery enclosure must be used if using 12AH, 40AH or 65AH batteries. *Outputs are non power-limited: eFlow6N, eFlow6N8, eFlow6N16. Outputs are power-limited: eFlow6N8D, eFlow6N16D.
- Page 8 NEC Power-Limited Wiring Requirements for eFlow6N Models: Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all power-limited circuit wiring and non power-limited circuit wiring must enter and exit the cabinet through different conduits. One such example of this is shown below.
- Page 9 Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing. 12AH Rechargeable batteries are the largest batteries that can fit in this enclosure. A UL Listed external battery enclosure must be used if using the 40AH or 65AH batteries. eFlow6N Series - 9 -...
- Page 10 Fig. 9a Incorrect Wire Correct Wire Handling Handling External Jacketed Shield Wire Insulation Pull back Solid Copper external jacketed Conductors shield approx. 1/2”. *Outputs are non power-limited: eFlow6NX, eFlow6NX8, eFlow6NX16. Outputs are power-limited: eFlow6NX8D, eFlow6NX16D. - 10 - eFlow6N Series...
- Page 11 Enclosure Dimensions (BC300) (approximate H x W x D): eFlow6N, eFlow6N8, eFlow6N8D, eFlow6N16, eFlow6N16D 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.55mm) 1.40” 4.85” 4.85” 1.40” (36mm) (123mm) (123mm) (36mm) 1.20” (31mm) 3.25” (83mm) 12.5” (318mm) 1.20” 1.20”...
- Page 12 0.91” (23.114mm) (23.114mm) 1.5” 1.5” (38.1mm) (38.1mm) 2.0” 15.5” (50.8mm) (393.7mm) 2.0” (50.8mm) 5.0” 5.0” (127.0mm) (127.0mm) 0.79” 1.1” (20.06mm) 1.25” 1.25” (27.94mm) (31.75mm) (31.75mm) 1.75” (44.45mm) 1.5” 4.615” 4.615” 1.5” (38.1mm) (117.22mm) (117.22mm) (38.1mm) - 12 - eFlow6N Series...
-
Page 13: Appendix A - Ul Listed Compatible Devices
Appendix A - UL Listed Compatible Devices A.1 Four (4) Wire Smoke Detectors Table A-1 below lists four (4) wire smoke detectors compatible with eFlow6N output. System Sensor Max Stand-by Alarm Detector Type Smoke Detector/Base Current (mA) Current (mA) B112LP Base 0.12... - Page 14 Notes: - 14 - eFlow6N Series...
- Page 15 Notes: Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com, Made in U.S.A. MEMBER IIeFlow6N Series F06N eFlow6N Series...
- Page 16 6 amp 1 amp 910mV eFlow6NX, eFlow6NX8, eFlow6NX8D, eFlow6NX16, eFlow6NX16D Overview: The eFlow6N series power supply/chargers convert a 120VAC, 60Hz input, to a 12VDC or 24VDC output. Stand-by Specifications: Fire Applications Access Control Burg. Applications Battery 24 hr. Stand-by/5 min. Alarm Applications Stand-by 4 hr.
