Configuration
6.3
Repeater/Star Coupler Configuration
The CANbridge NT 200 can be configured as Repeater and the CANbridge NT 420 as Star Coupler.
In the Repeater/Star Coupler mode all messages are transmitted unchanged to the other ports in
Classic CAN mode. Filters, CAN-ID modifications and CAN-FD mode are not possible.

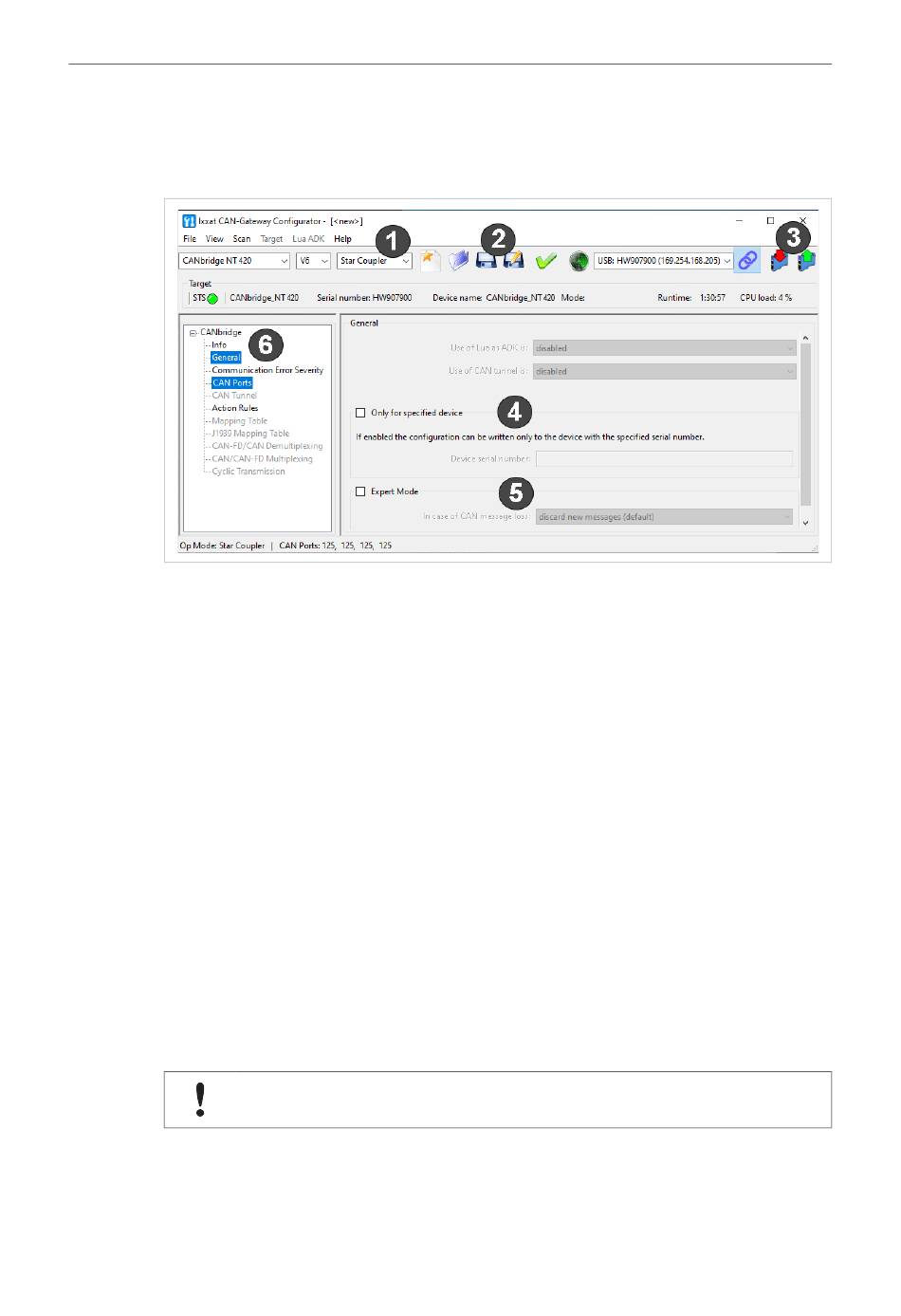

Fig. 4
Repeater configuration
►
Make sure, that the basic configuration is set and that the correct device type and version
are selected (see
►
With CANbridge NT 200 make sure that operational mode Repeater (1) is selected.
►
With CANbridge NT 420 make sure that operational mode Star Coupler (1) is selected.
→
In Repeater/Star Coupler mode the mapping table is deactivated.
→
All messages are transmitted unchanged.
In the configuration tree (6) select General.
►
►
If checkbox Only for specified device (4) is enabled, enter the serial number of the device to
which the configuration can be written.
►
If checkbox Expert Mode (5) is enabled, select the desired settings (for more information
see User Manual CAN-Gateway Configurator).
►
Configure the baud rate for all active CAN ports (6) (see User Manual CAN-Gateway
Configurator for more information).
►
For description of further configuration possibilities see User Manual CAN-Gateway
Configurator.
►
To write the configuration to the device, click button Write to (3).
►
Click button Save or Save As (2) to save the configuration.
CANbridge NT User Manual
Basic Configuration, p.
Observe the bus load when setting the baud rates. If the bus load is high on a port with
high baudrate but the other port has a low baud rate, a bus overload can occur.
13).
15 (26)
4.01.0331.20000 1.8 en-US
