Configuration
Make sure, that the latest CAN-Gateway Configurator is installed (check within product
►
support pages on www.ixxat.com/support-bridges-gateways).
Start the Ixxat CAN-Gateway Configurator.
►
►
Open menu Scan and select All Ixxat devices.
→
Connected devices and firmware version of the devices are shown.
►
Select the type of CANbridge NT in use in drop-down list Select device type (2).
Select the firmware version of the device in drop-down list Select device version (3).
►
Select the desired operational mode for the device in use in drop-down list Select
►
operational mode (4).
Select the device in combo box Target device (11).
►
►
Click button Connect (12) to connect the selected device.
→
If device is connected, STS (1) is green flashing.
→
Information about the target (1) device is shown.
Make sure, that the CANbridge is updated to the latest firmware.
►
To create a new project file, click button New (5).
►
►
To change the current configuration of the device, click button Read from (14) and save the
configuration.
or
►
Configure the device in the desired mode (see
Bridge Configuration, p.
6.2
Configuring the Device Name
The displayed name of a connected device can be chosen freely.
►
Open menu Target and select Change device name.
→
Window Device Name Configuration is opened.

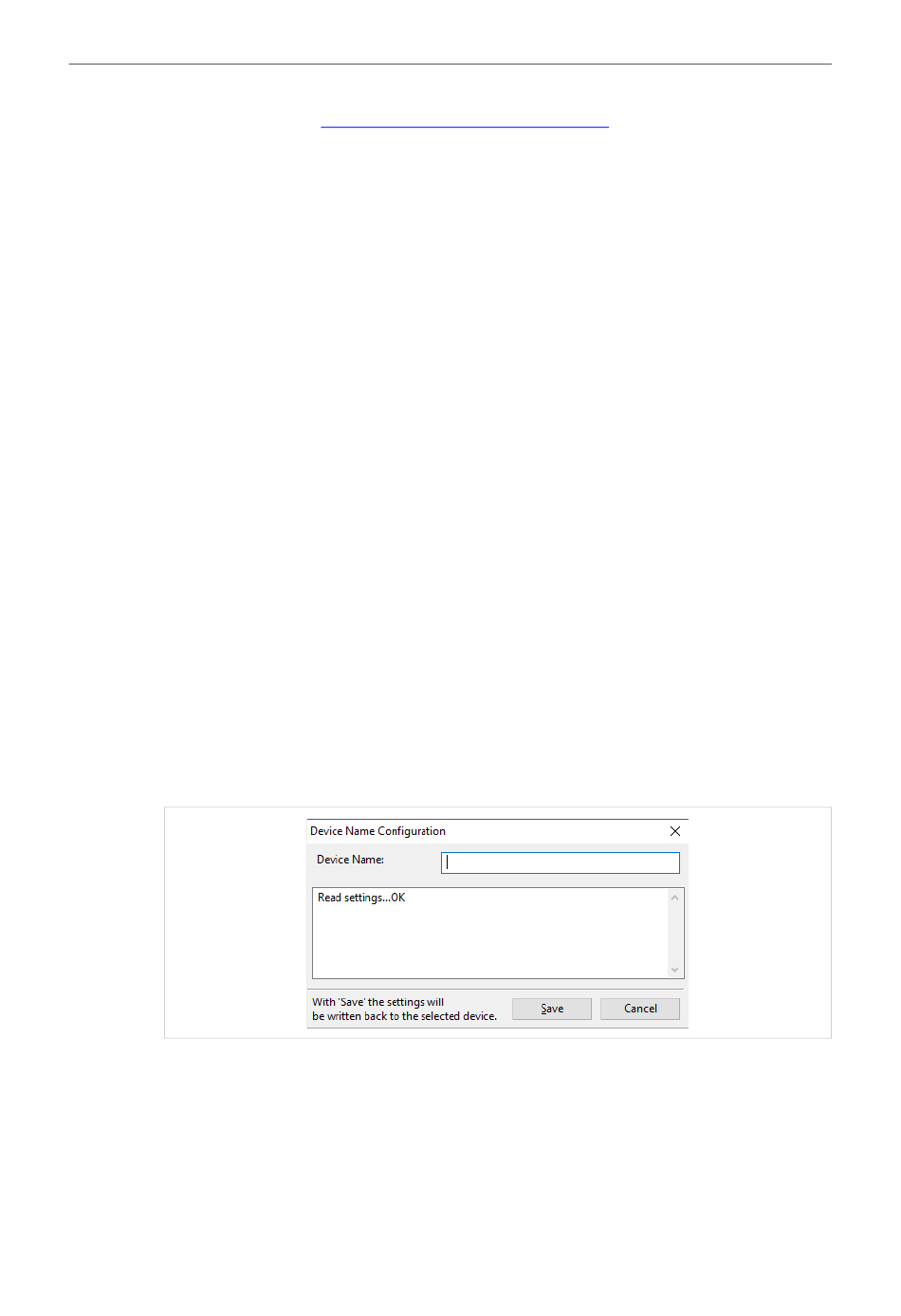

Fig. 3
Window Device Name Configuration
Enter desired name in field Device Name and click button Save.
►
→
Name is written to the device.
CANbridge NT User Manual
Repeater/Star Coupler Configuration, p. 15
16).
14 (26)
