When a physical console line (between a standard I/O module and the terminal
server) is removed, do the following to remove it from the software
configuration:
1. Remove the console from the system group (see Section 3.3.8).
2. In the left navigation panel select Operations. From the selection links
select Consoles. The Show Consoles screen opens.
3. At the top of the Show Consoles screen select Delete Console. The Delete
Console screen opens (Figure 3–17).
4. From the Delete dropdown menu select the console to be deleted.
5. Determine if the log files and information files for the console will be
deleted. To delete them, select the checkboxes labeled Delete logfiles and
Delete information files.
6. Click the Delete Console button. A verification message displays (Figure 3–
18).
7. Click OK to delete the console. The Show Consoles screen opens; the deleted
console is no longer listed.
8. Run the Console Group Validator utility. See Chapter 11 of the System
Management Console Installation Guide.

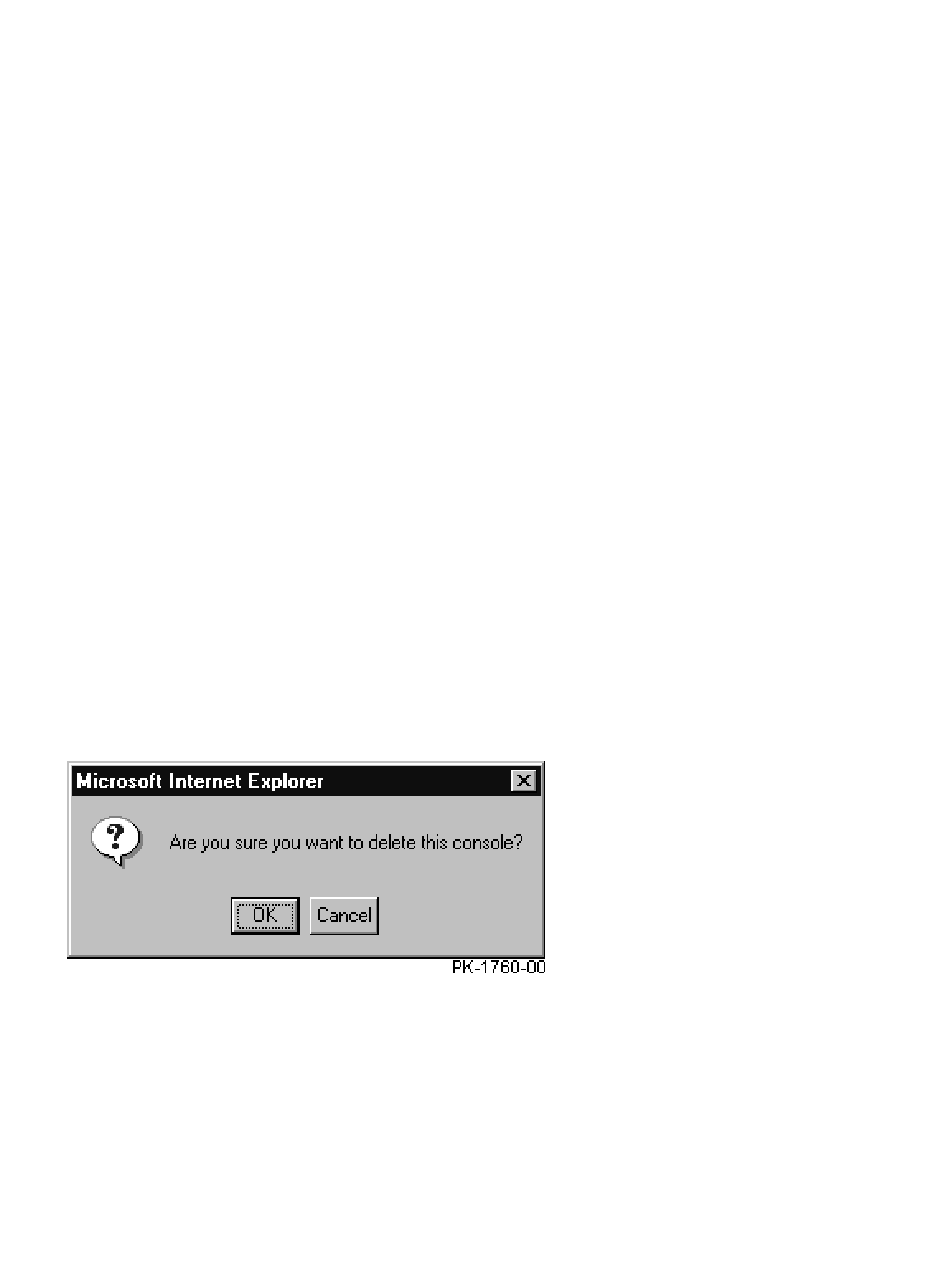

Figure 3–18 Delete Console Verification Message
ConsoleWorks 3-31
