ConsoleWorks has a built-in terminal emulator function. To use it to connect to
a specific console, do one of the following:
•
Go to the Show Consoles screen (in the left navigation panel select
Operations, then Consoles; see Figure 3–6) and click the icon to the left of
the console name (see Table 3–3 for the meanings of these icons), or
•
Go to the console_name Configuration screen (Figure 3–7) for the console
(from the Show Consoles screen click the link for the console) and click the
Connect link at the top of the screen.
When prompted for a username and password, enter those of a valid
ConsoleWorks account.

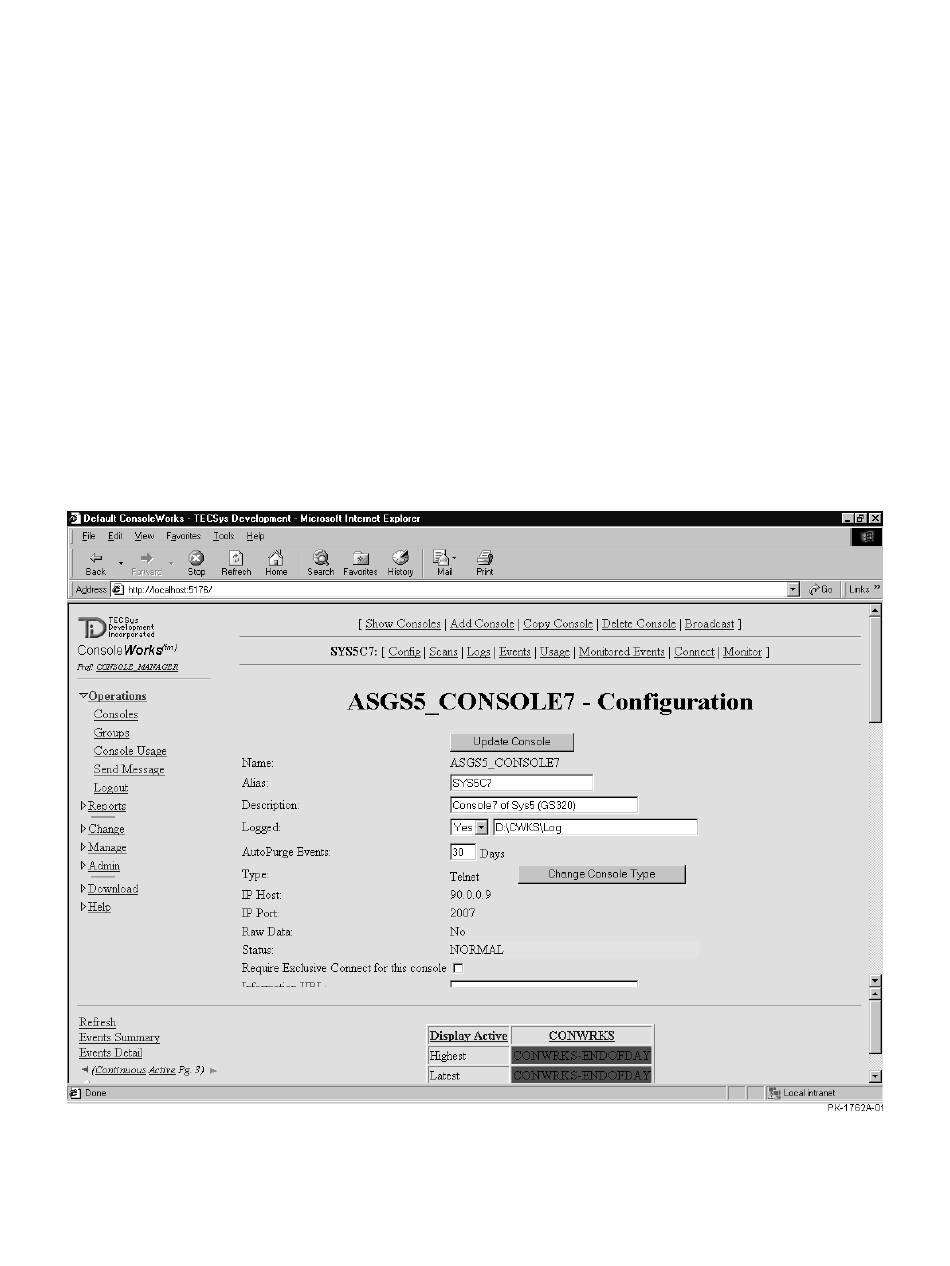

Figure 3–7

console_name Configuration Screen

Continued on page 3-17
ConsoleWorks 3-15
