Settings For Com1 Dialog Box - Compaq AlphaServer GS80 User Manual

1. From the Start button select Settings|Control Panel.
2. In the control panel, double click the Ports icon. The Ports dialog box
displays (Figure 6–6).
3. Select COM1 and click the Settings... button. The Settings for COM1 dialog
box displays (Figure 6–7).
4. Change the baud rate, and check that the other settings are correct for your
environment. Click OK.

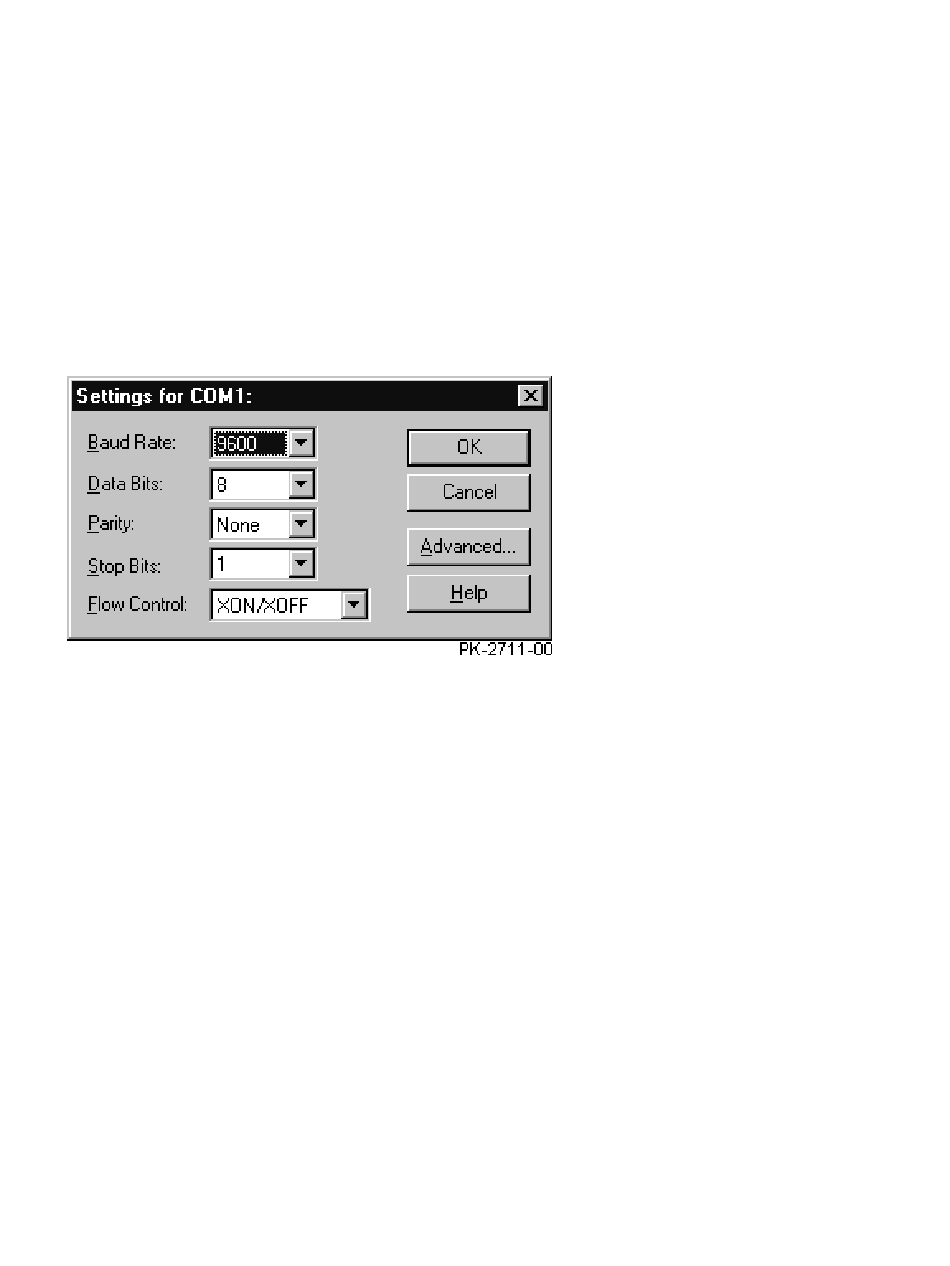

Figure 6–7 Settings for COM1 Dialog Box
Troubleshooting 6-17
