Routing and drilling device

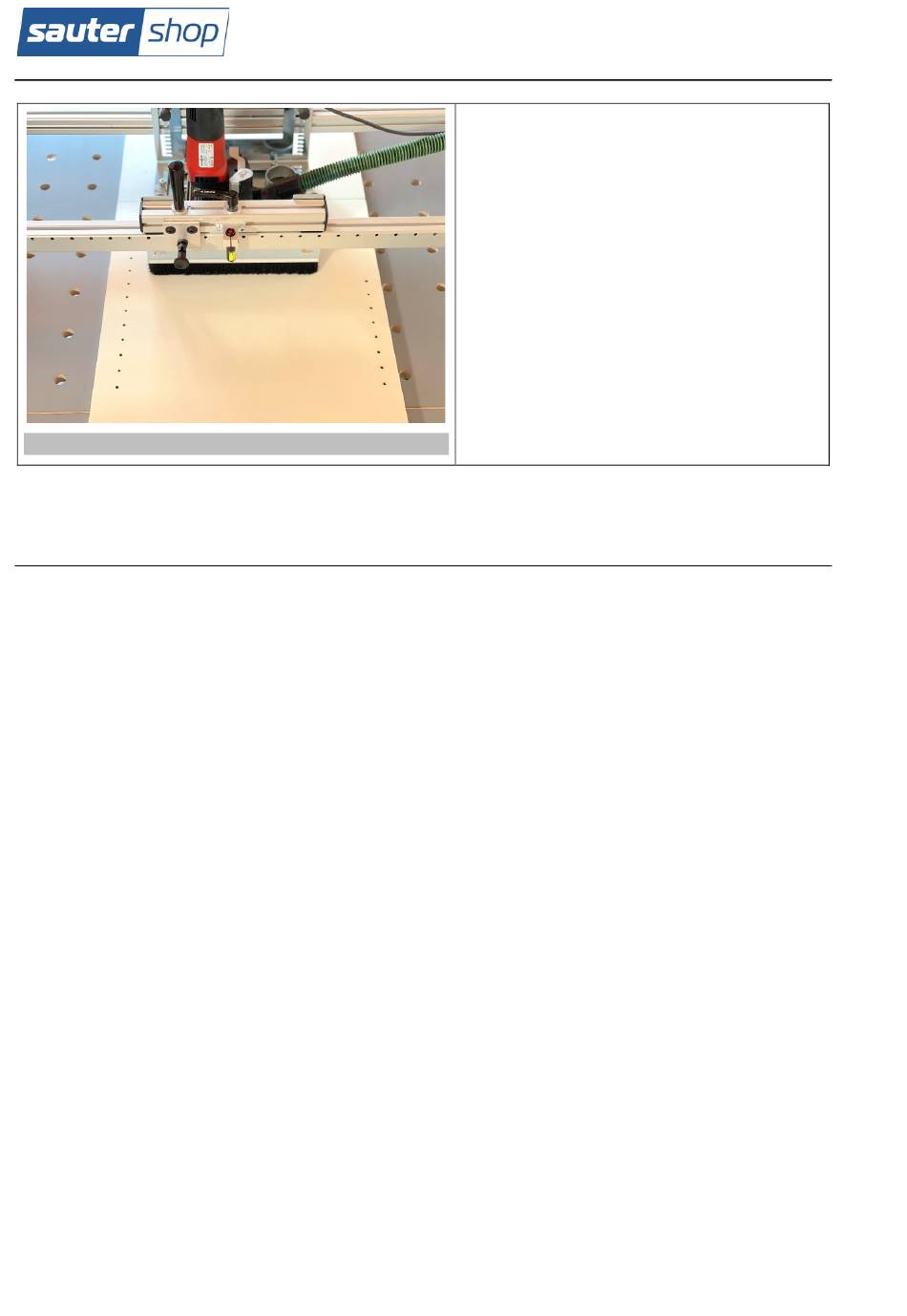

Figure 107: Row of holes, e.g., for shelf holders
24

Options for the routing and drilling device

The following options are available for the routing and drilling device:
• Extension set for SlabMatrix Pro 1.0: longitudinal rails for extending the Y-axis, also with hole
matrix board (Art. No. SA-SM-EXT-KIT).
• Adapter plate for the laser (Art. No. SA-SM-LASER)
• Laser unit sideways (Art. No. SA-SM-LASER-SIDE)
•
Wall mount (Art. No. SA-SM-RACK)
• Hole matrix boards with the dimensions of 1200 x 800 mm
• Clamping and stop set for SlabMatrix Basic 1.0 (Art. No. SA-SM-FIX-KIT-BASIC)
• Clamping and stop set for SlabMatrix Pro 1.0 (Art. No. SA-SM-FIX-KIT-PRO)
• Stop bolt (Art. No. SA-SM-PIN)
• Hose bar (Art. Nr. SA-SM-HOSE-BAR)
• Brush kit (Art. Nr. SA-SM-BRUSH-KIT)
78
The 32 mm hole distance of the milling and
drilling device is identical to the spindle
spacing of the Duodübler.
The workpiece is fixed for machining at a
distance (downwards) from the hole matrix
board (here with non-slip supports).
In addition to the row of holes in the Y-di-
rection, rows of holes in the X-direction are
also possible.
For further machining options, please refer
to the operating instructions of the Duo-
dübler.
