Summary of Contents for sauter CP 50-3P8

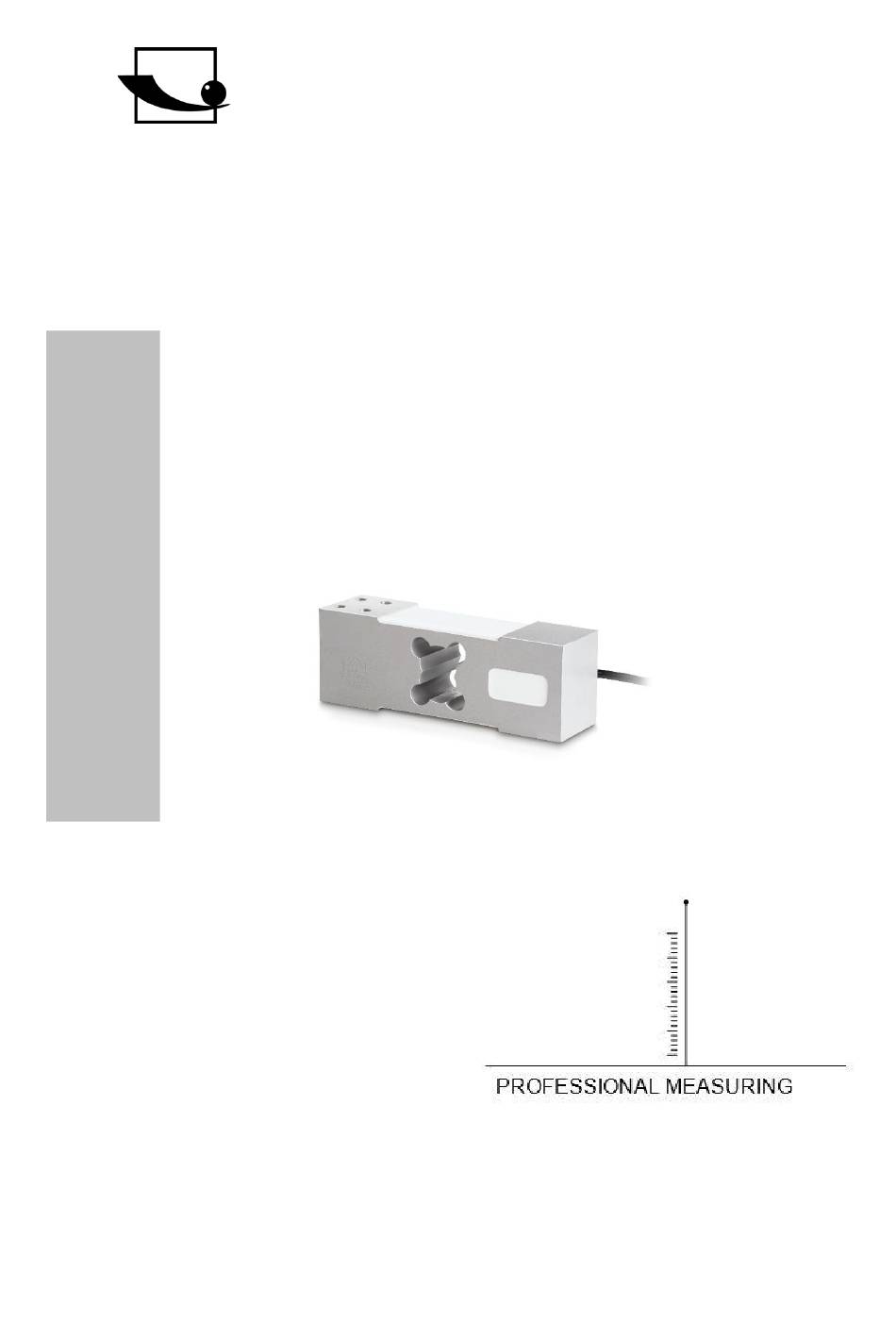

- Page 1 Sauter GmbH Ziegelei 1 Tel.: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.sauter.eu User manual / Data sheet SAUTER CP P8 V. 1.0 10/2022 CP P8-BA-en-2210.docx...
- Page 2 SAUTER CP P8 V. 1.0 10/2022 User manual / Data sheet Summarize: Introduction ....................3 Brief description .................... 3 Available models.................... 3 Introduction ....................3 Warnings ......................3 Warranty ......................4 Technical data ....................4 Electrical connection ..................5 Dimensions in mm ..................5 CE declaration ....................
- Page 3 After receipt of the measuring cell, it should be checked in advance whether there has been any transport damage, whether the outer packaging or other parts or even the item itself have been damaged. If any damage is apparent, please notify SAUTER GmbH immediately.
- Page 4 Always fit overload or breakage protection to your system. Always observe the permissible static and dynamic loads of the accessories you are using. Have measuring cells calibrated at regular intervals. Load the measuring cell only in its specified loading direction. Avoid transverse forces. Check measuring cells regularly for deformations and cracks.
- Page 5 7 Electrical connection Shielded PVC cable, shield connected to element, cable diameter , standard Ø5.9mm cable length: 3m 6-wire connection diagram 8 Dimensions in mm CP P8-BA-en-2210.docx...
- Page 6 9 CE declaration The CE declaration can be downloaded from the website www.sauter.eu CP P8-BA-en-2210.docx...
