3. Step:

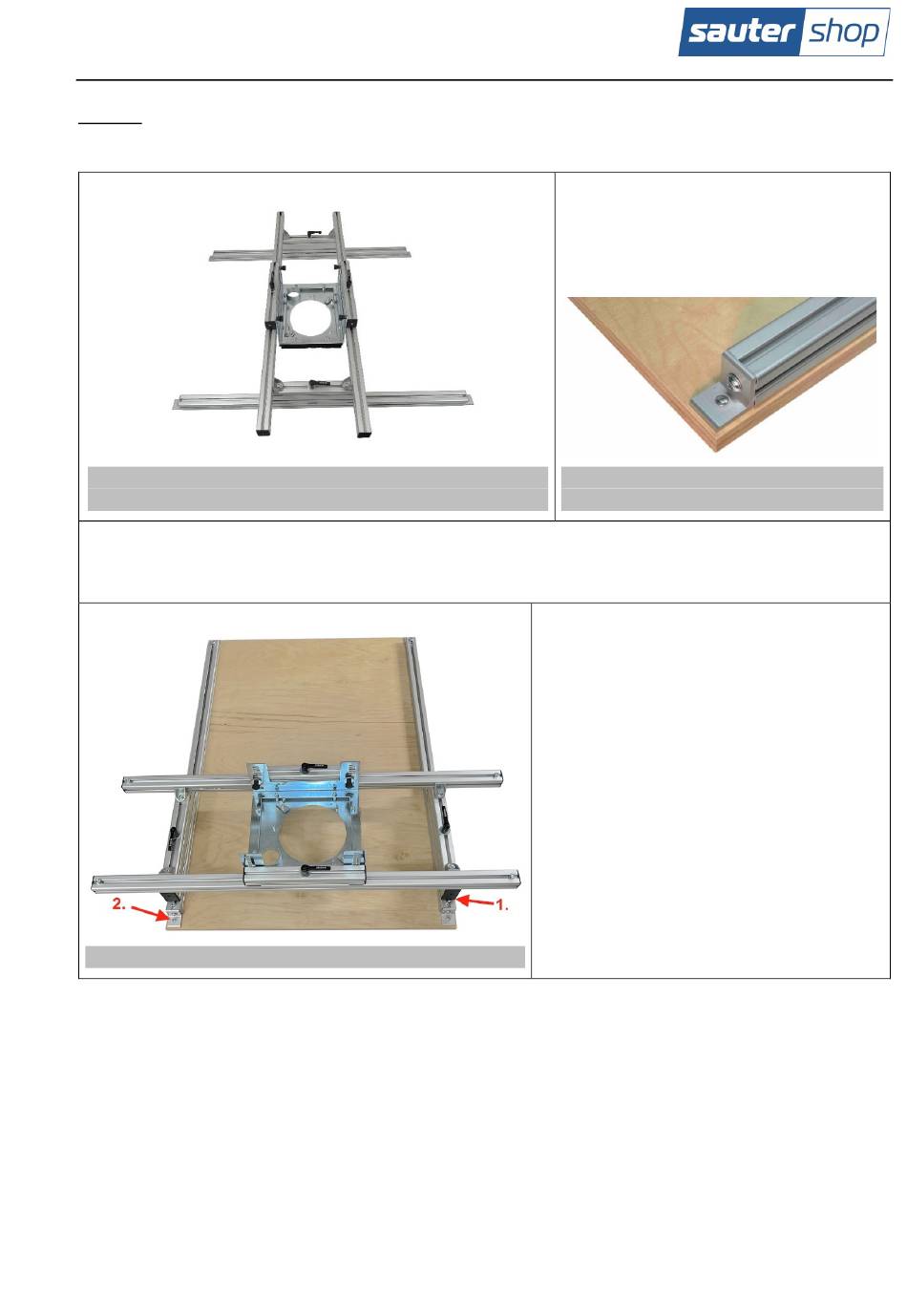

Mounting the routing and drilling device on the work plate
Figure 74: Routing and drilling device for mounting
on the work plate
Position the routing and drilling device as desired on the work plate and first fasten only the left
longitudinal rail at the front with one of the supplied brackets. Use the plastic washer supplied
with the screw.
Figure 76: Mounting frame in front position
Routing and drilling device
Figure 75: Fastening the right longitu-
dinal rail to the worktop
Loosen the clamping of the beams on the
longitudinal rails and move the pick-up
frame with the transverse rails forwards
(towards you) until it stops against the
right (firmly screwed) longitudinal rail
(1.).
Now move the left longitudinal rail back-
wards (away from you) until it also rests
against the support of the left longitudinal
rail. Now attach the left longitudinal rail to
the front of the worktop (2.).
