5. Step:
Mounting your router in the routing and drilling device

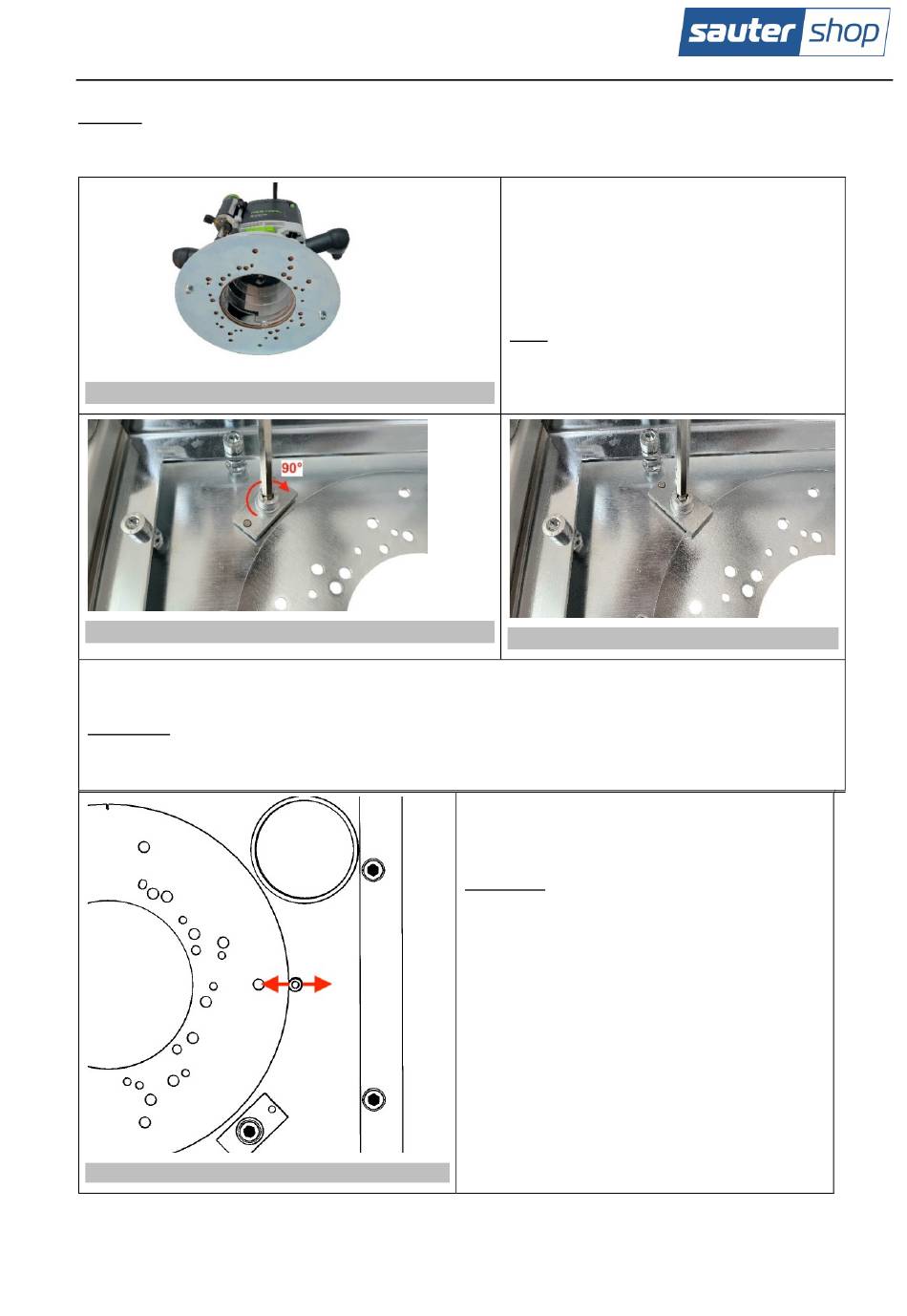

Figure 79: Fixed adapter plate
Figure 80: Fixing of the adapter plate
Insert the adapter plate with the router into the mounting frame and clamp the adapter
plate to the base plate with the 2 clamping screws.
Expert Tip:
Before inserting the router, adjust the mounting frame to the required working height. The
mounting frame must be set parallel to the cross rails.
Figure 82: Adjustable bolt of the base plate
Select the appropriate hole pattern for
your router according to Table 3 or Table
4 and screw the corresponding adapter
plate onto the sole of your router.
Note: If your router comes with flat head
screws, you can use these screws, other-
wise use the screws supplied with the
routing and drilling device.
Figure 81: Fixed adapter plate
Specificity: If, due to manufacturing toler-
ances, the adapter plate does not fit be-
tween the 3 bolts of the base plate, you can
adjust the bolt located near the suction
socket so that the adapter plate fits.
Proceed as follows:
• - Loosen the fastening screw of the
bolt (underside of the base plate).
• - Place the adapter plate between the
bolts.
• - Guide the loosened bolt to the
adapter plate until it is in contact
and tighten the fastening screw of
the bolt again.
Routing and drilling device
61
