Assembly
instructions:
FT-DW-7492-20
Router table for DeWalt7492
table saw

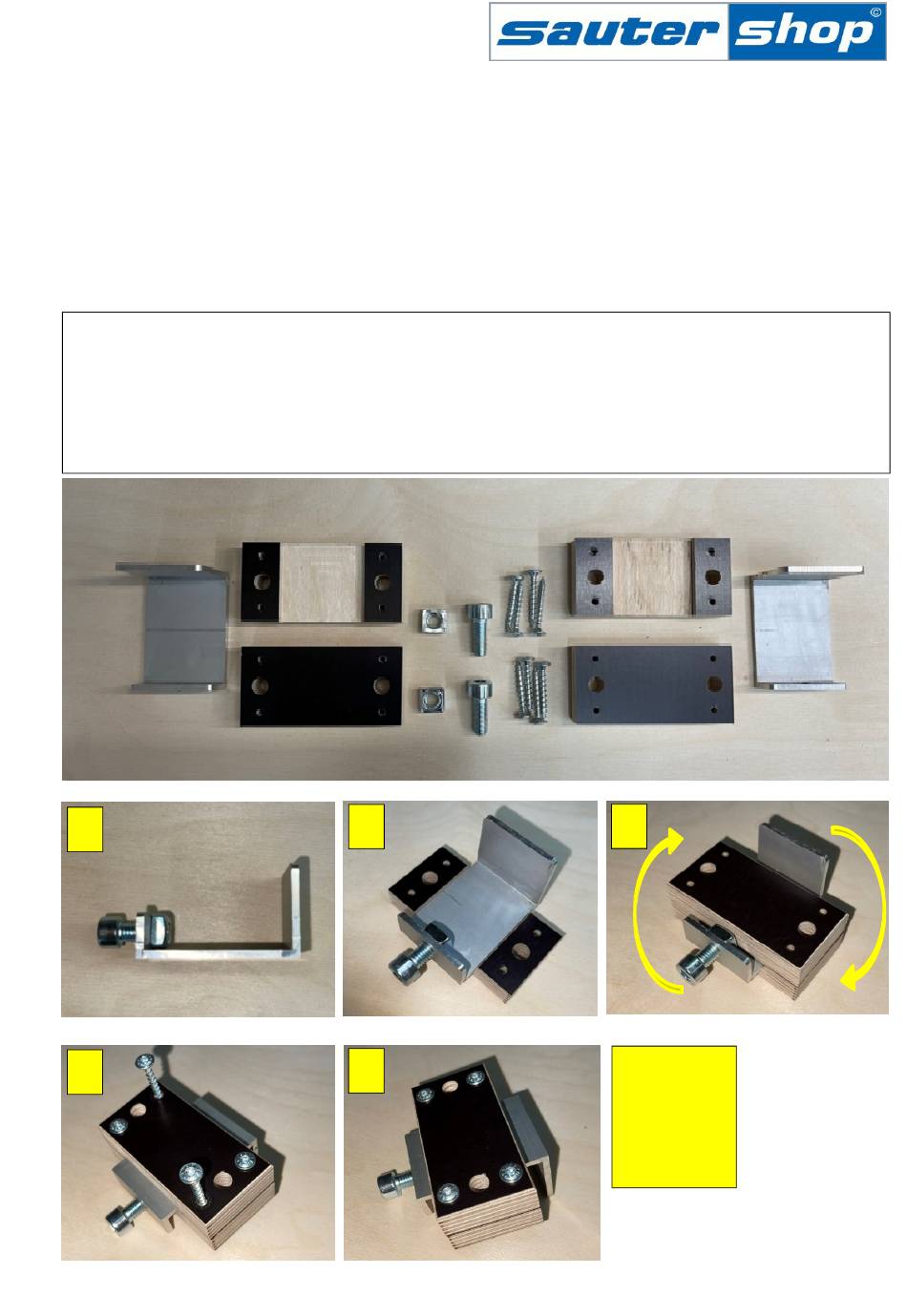

Pre-assembly of the underside clamping brackets:
1. Screw the M8x20 cylindrical head screw with the hexagon nut into the bracket.
2. Insert the angle bracket as shown into the milled guide block
3. Open the control panel and press the entire unit around it.
4. Screw the guide block and contcr plate with the 4x30 flat head screws
1
4
2
5
Sauter GmbH Arzbergerstraße 4
82211 Herrsching
TEL [+49] 08152 92898-0
e-mail:
info@sautershop.com
www.sautershop.com
3
2x
Advertisement
Related Manuals for sauter FT-DW-7492-20
Summary of Contents for sauter FT-DW-7492-20
- Page 1 Assembly instructions: Sauter GmbH Arzbergerstraße 4 82211 Herrsching FT-DW-7492-20 TEL [+49] 08152 92898-0 e-mail: Router table for DeWalt7492 info@sautershop.com www.sautershop.com table saw Pre-assembly of the underside clamping brackets: 1. Screw the M8x20 cylindrical head screw with the hexagon nut into the bracket.
- Page 2 Open the pipe clamps (1) as Place the router table (2) on the machine structure. and tighten with the M6x50 flat head screws. (3) Do not shown and swing them forwards and downwards tighten the screws yet! Now mount the pre-assembled clamps (4) on the left and right side with the M8x60 cylinder screws (5) and connect them from below with the M8 nuts.
- Page 3 Use the front (5) and rear (6) knurled screws to level the router table (2) to the saw table. This allows the router table to be adjusted in height and inclination. Make sure that the router table (2) rests flat on the mounting structure, but that the screws are not yet fully tightened! The centered M6x50 flat head screws with the...
