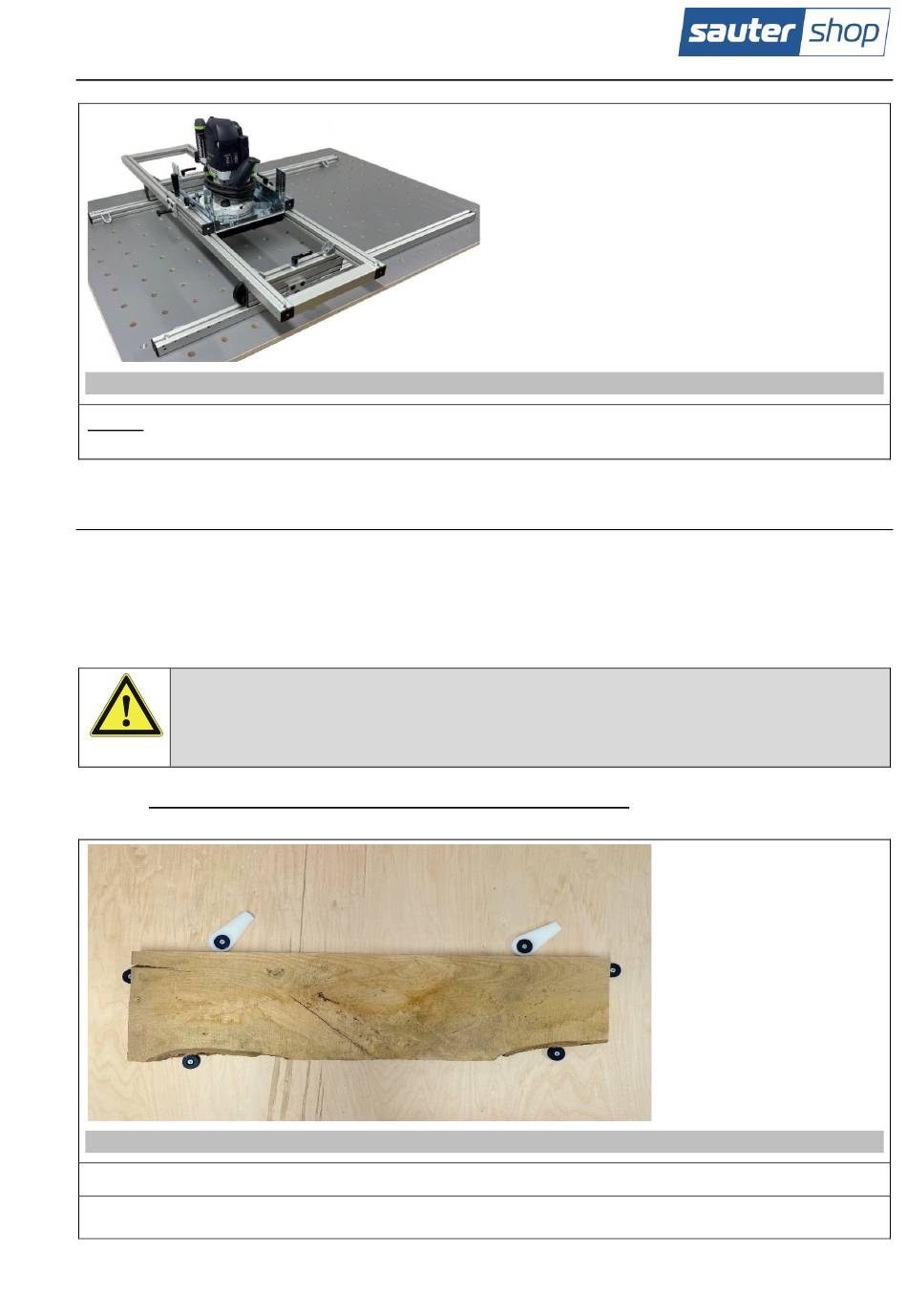

Figure 88: The ready-to-use routing and drilling device SlabMatrix Pro 1.0
Result: The SlabMatrix Pro 1.0 routing and drilling device is now ready to perform the intended
routing and drilling work.
21

Workpiece attachment

For machining, the workpiece must be safely fastened to the work plate / hole matrix board. Pro-
ceed with great care when doing this.
When fastening the workpiece, it must also be noted that the fasteners, if they are made of metal or
other non-machinable materials, must not come into contact with the router bit during machining.
If the workpiece comes loose during machining or the router bit comes into contact
with fasteners, such as screws, etc., which are made of metal or non-machinable ma-
terial, this may result in injury or damage to the routing and drilling device, the router,
the bit or the workpiece.
21.1

Example of a safe workpiece fixing on the worktable

Figure 89: Fixing a wooden board to the work plate (as an example)
The clamping and stop set for SlabMatrix Basic 1.0 (option) were used.
Intended machining: Flattening
Routing and drilling device
67
