SlabMatrix Basic 1.0

19.1

Overview and scope of delivery

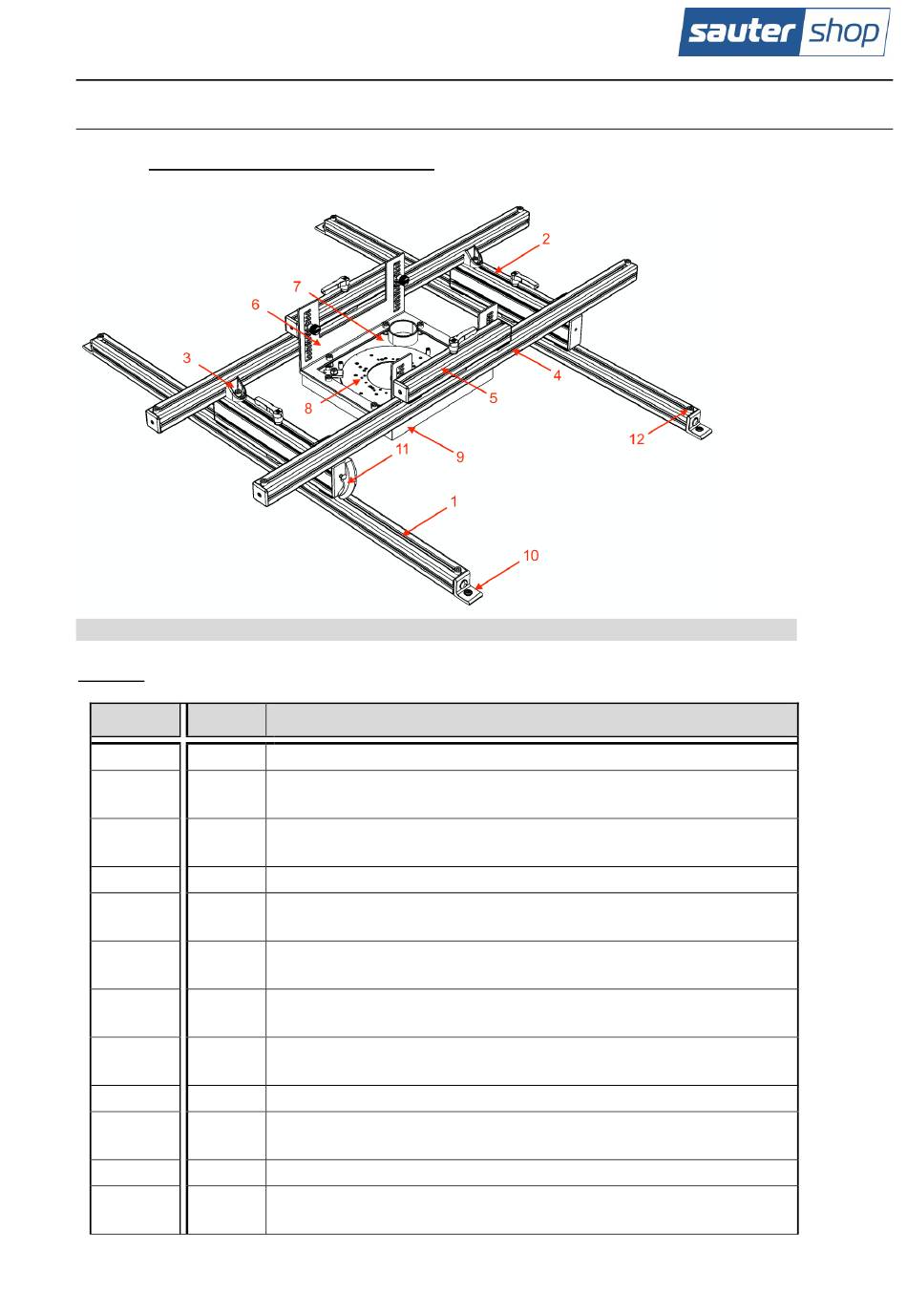

Figure 62: Components SlabMatrix Basic 1.0
Table 7: Scope of delivery SlabMatrix Basic 1.0
Item no. Number Designation
1 2
2 2
3 4
4 2
5 2
6 1
7 1
8 1
9 1 set
10 4
11 1
12 8
Longitudinal rails (Y-axis): Total length: 1100 mm
Cross rail support, pre-assembled on the longitudinal rails with
clamping device
Mounting brackets for fixing the cross rails to the longitudinal
rails, pre-assembled on the cross rail supports
Cross rails (X-axis): Total length: 1100 mm
Support for fastening the mounting frame for the router, pre-
assembled on the cross rails with clamping device.
Mounting frame for the router with height adjustment (Z-axis)
in 10 mm increments
Base plate, pre-assembled on the mounting frame with suction
connection
Adapter plate OF 55 (Art. No. SA-SM-PLATE-S) or OF 100 (Art.
No. SA-SM-PLATE-L)
Dust and chip brushes
Mounting bracket for fastening the routing and drilling device
to the work plate (e.g. wooden panel) with fastening screws
Allen key
End stops for infinitely variable limitation of the movements in
the X- and Y- axes
Routing and drilling device
