sauter EY-RU110 Quick Reference

EY-modulo 5
Room operating unit ecoUnit110...146 uni-directional
Contents:
1. General information
2. First steps
2.1 Uni-directional operating mode
2.2 Description of EEP radio telegram: A5 -10 -01
1 General information
This document is not a comprehensive technical data sheet; rather, it describes the main steps to be taken in order to operate a Sauter ecoUnit1
room operating unit as a uni-directional unit.
The profile in this operating mode is EPP*: A5 -10 -01
In addition, two PTM buttons are available on the EY-RU146 (EEP*: F6 -02 -01).
*EEP V2.61
The ecoUint110 room sensor is pre-set to uni-directional operating mode and the default values cannot be changed because
there is no LCD.
2 First steps
2.1 Uni-directional operating mode
The ecoUnit1 room operating unit has to be configured appropriately to set it to uni-directional operating mode,
i.e. configuration identifier 5 must be set to a value of 01...04.
Configuration display
digit 1: Configuration identifier
digit 2: Prefixed sign(-)
digit 3 und 4: Settings
www.sauter-controls.com
en Quick reference

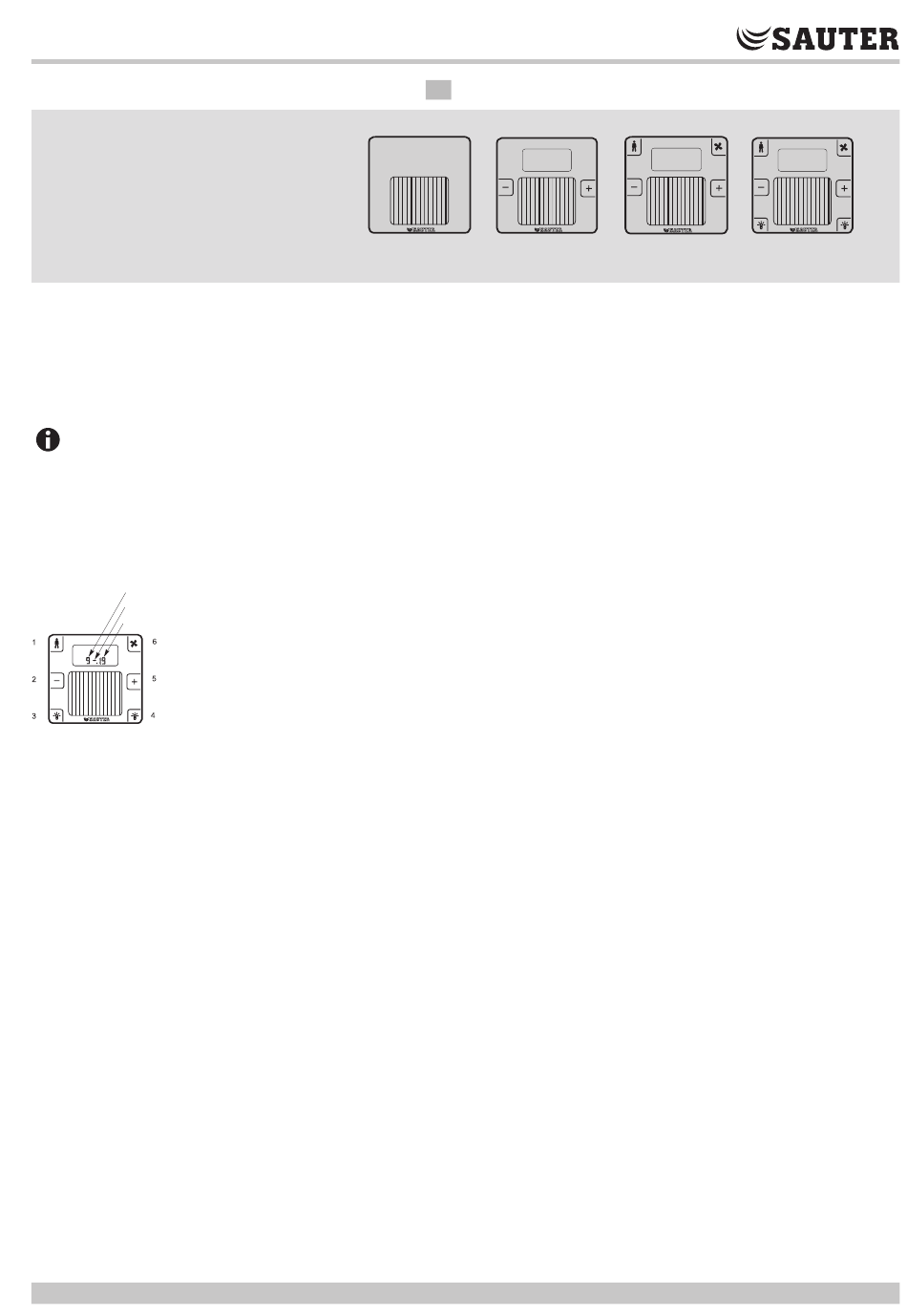

EY-RU110 EY-RU141
SAUTER EY-RU 141...146
EY-RU144 EY-RU146
1/4
