SmartLocker AX
(Manual)

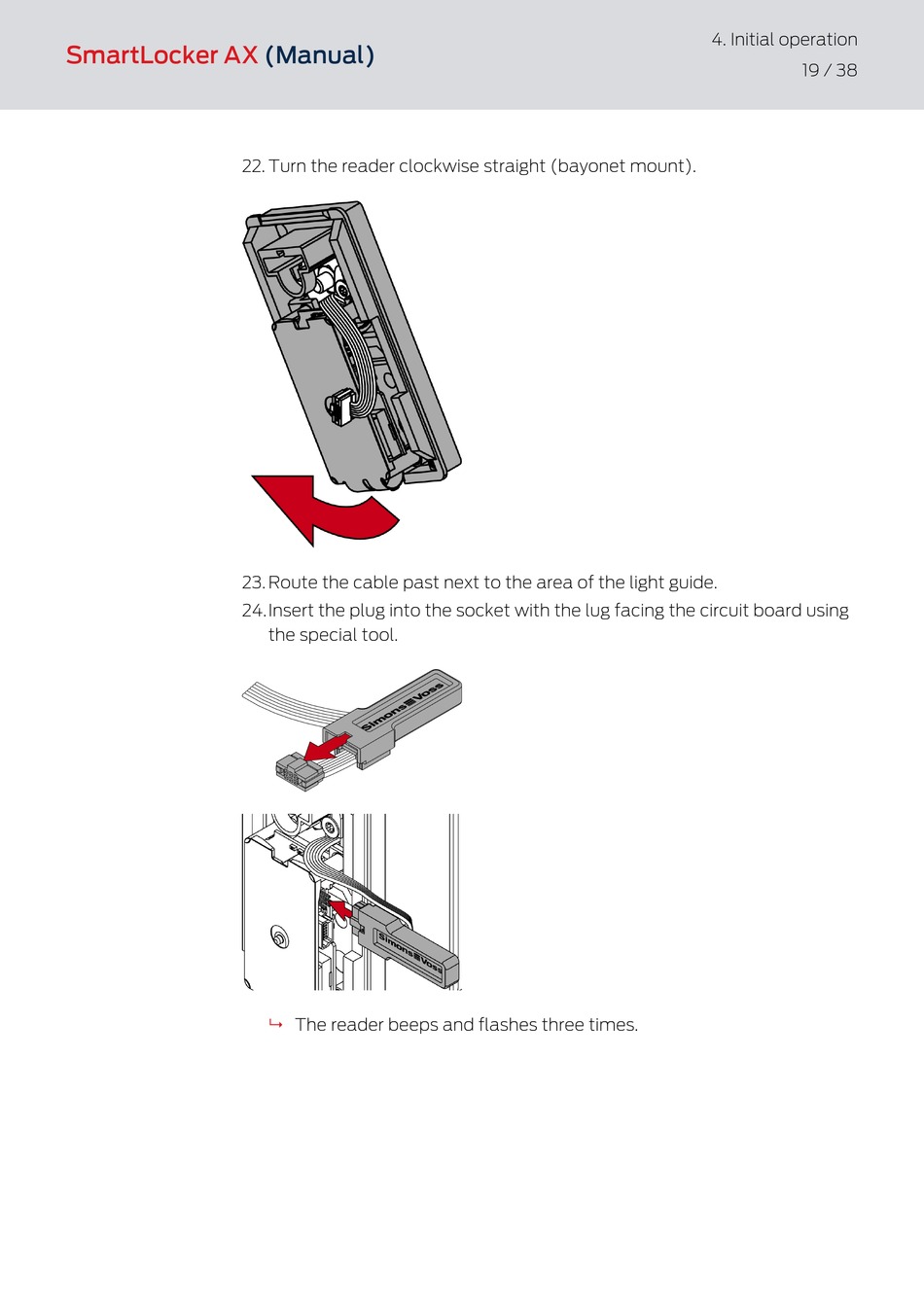

22. Turn the reader clockwise straight (bayonet mount).
23. Route the cable past next to the area of the light guide.
24.Insert the plug into the socket with the lug facing the circuit board using
the special tool.
9
The reader beeps and flashes three times.
4. Initial operation
19 / 38
