SmartLocker AX

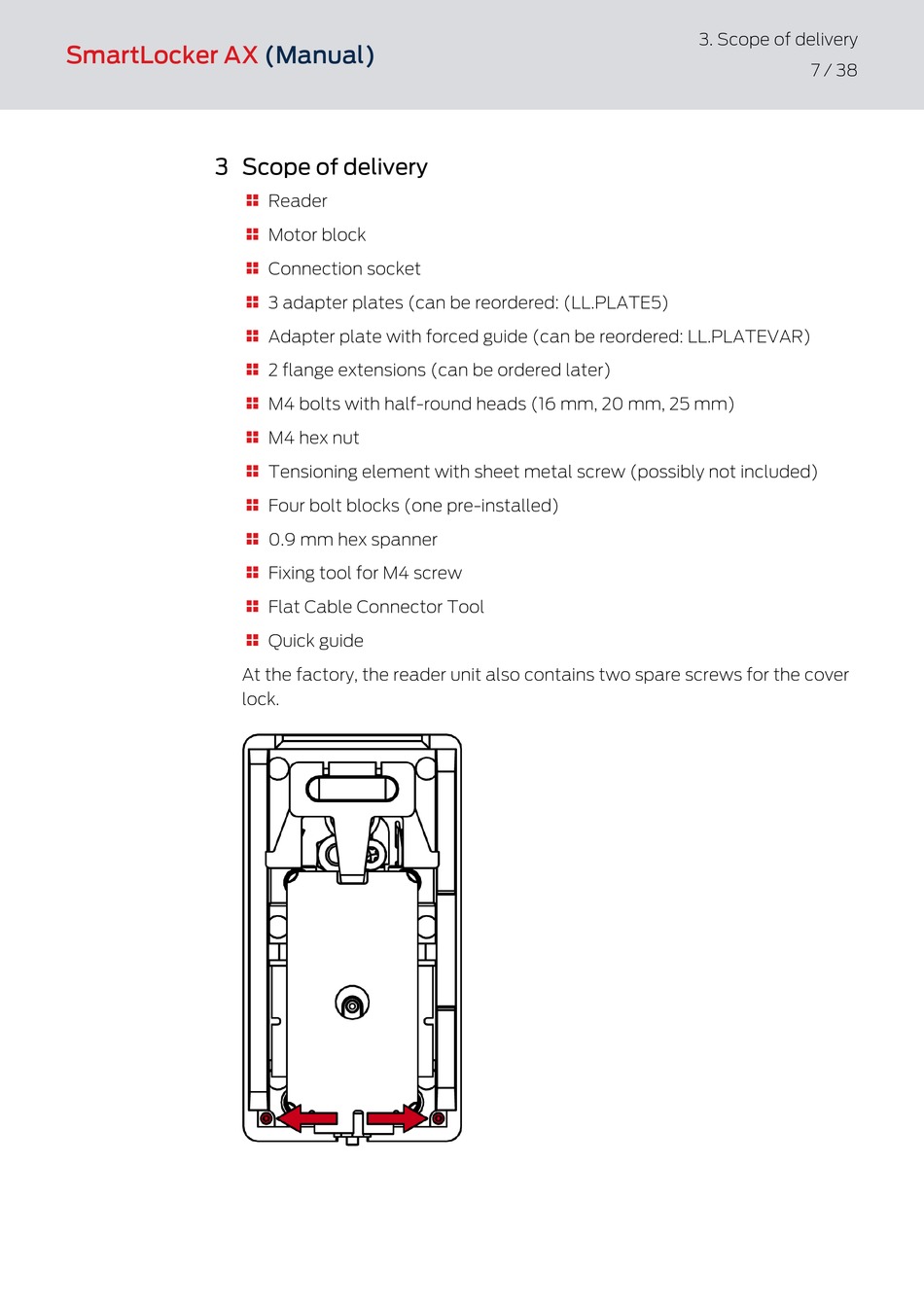

3 Scope of delivery
(Manual)
Reader
Motor block
Connection socket
3 adapter plates (can be reordered: (LL.PLATE5)
Adapter plate with forced guide (can be reordered: LL.PLATEVAR)
2 flange extensions (can be ordered later)
M4 bolts with half-round heads (16 mm, 20 mm, 25 mm)
M4 hex nut
Tensioning element with sheet metal screw (possibly not included)
Four bolt blocks (one pre-installed)
0.9 mm hex spanner
Fixing tool for M4 screw
Flat Cable Connector Tool
Quick guide
At the factory, the reader unit also contains two spare screws for the cover
lock.
3. Scope of delivery
7 / 38
