SmartLocker AX (Manual)
ü SmartLocker AX closed ex factory (= dead-bolt extended), programme
if necessary (see Programming [
ü Door and parts calculated (see

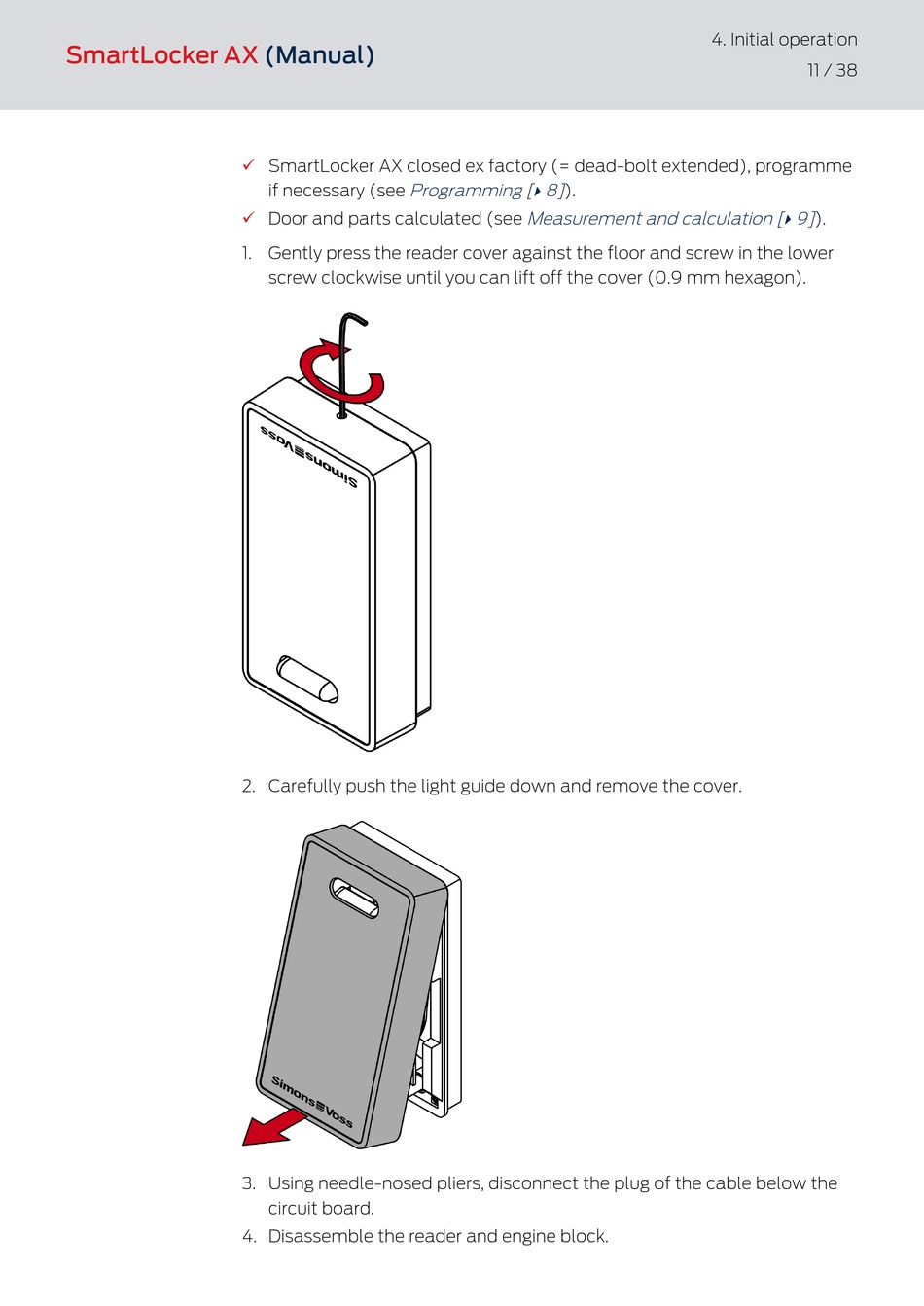

1. Gently press the reader cover against the floor and screw in the lower
screw clockwise until you can lift off the cover (0.9 mm hexagon).
2. Carefully push the light guide down and remove the cover.
3. Using needle-nosed pliers, disconnect the plug of the cable below the
circuit board.
4. Disassemble the reader and engine block.
8] ).
}
Measurement and calculation [
4. Initial operation
11 / 38
9]
).
}
