SmartLocker AX (Manual)

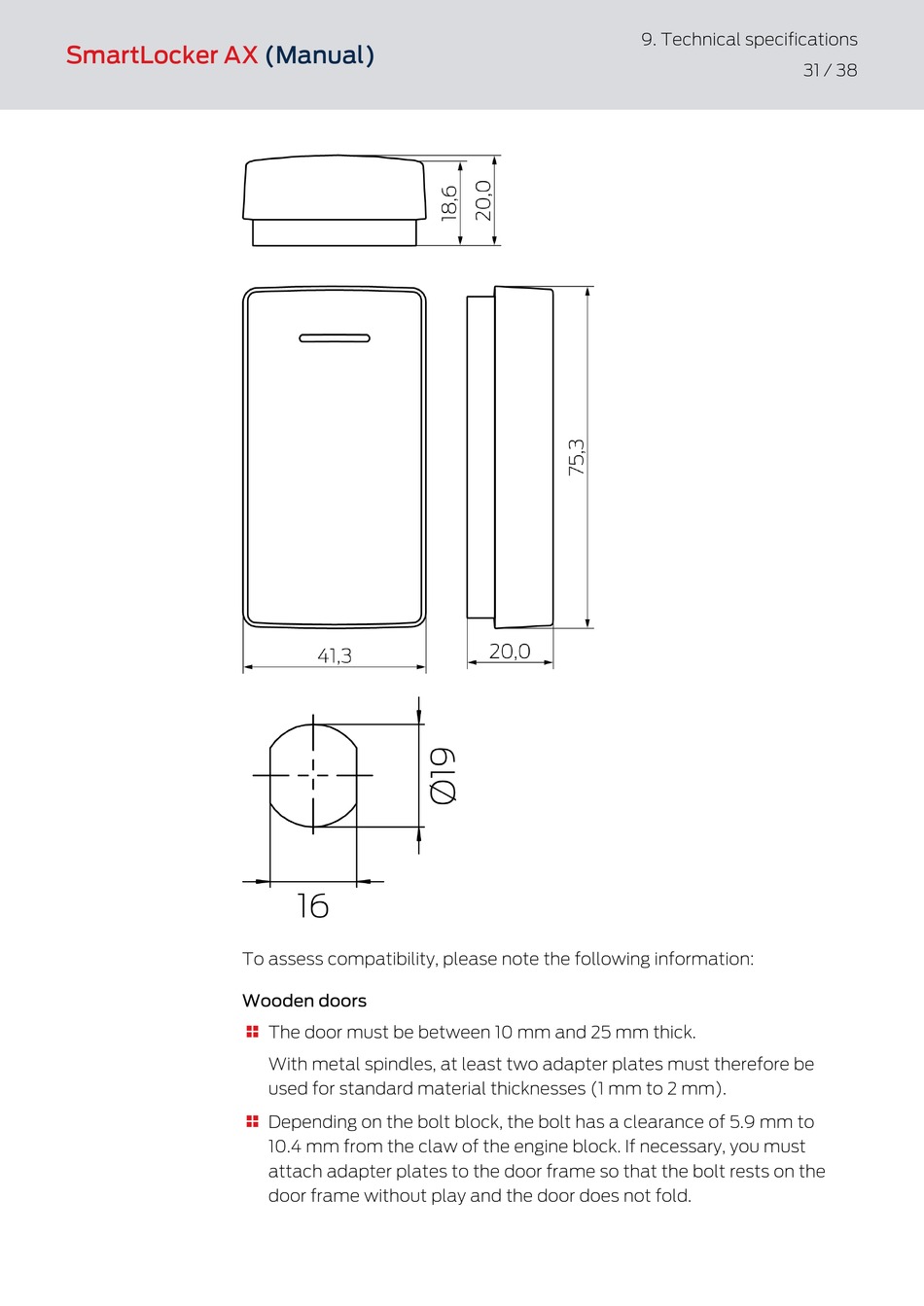

To assess compatibility, please note the following information:
Wooden doors
The door must be between 10 mm and 25 mm thick.

With metal spindles, at least two adapter plates must therefore be
used for standard material thicknesses (1 mm to 2 mm).
Depending on the bolt block, the bolt has a clearance of 5.9 mm to

10.4 mm from the claw of the engine block. If necessary, you must
attach adapter plates to the door frame so that the bolt rests on the
door frame without play and the door does not fold.
9. Technical specifications
31 / 38
