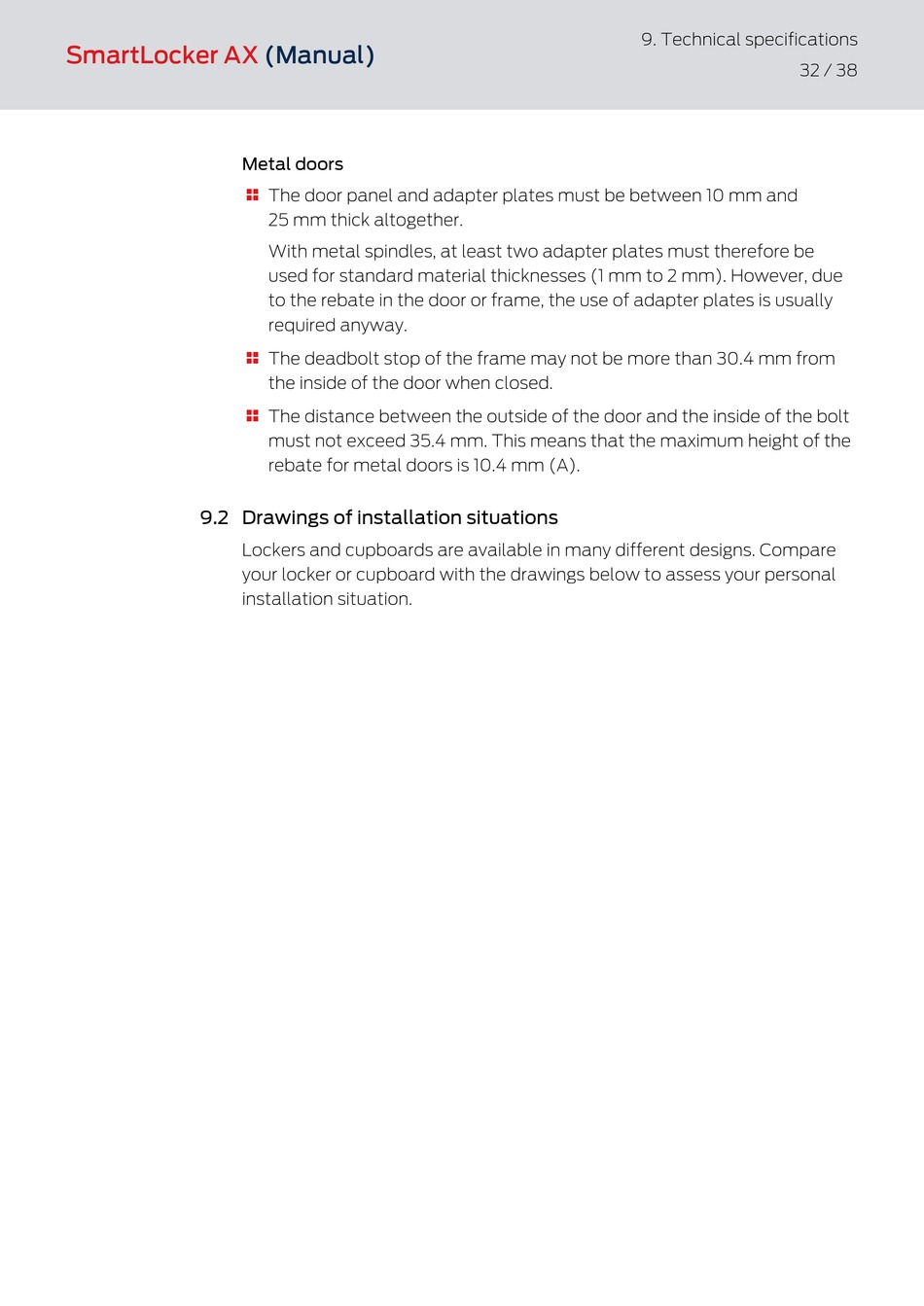

9.2 Drawings of installation situations

(Manual)

Metal doors

The door panel and adapter plates must be between 10 mm and



25 mm thick altogether.

With metal spindles, at least two adapter plates must therefore be

used for standard material thicknesses (1 mm to 2 mm). However, due

to the rebate in the door or frame, the use of adapter plates is usually

required anyway.

The deadbolt stop of the frame may not be more than 30.4 mm from



the inside of the door when closed.

The distance between the outside of the door and the inside of the bolt



must not exceed 35.4 mm. This means that the maximum height of the

rebate for metal doors is 10.4 mm (A).

Lockers and cupboards are available in many different designs. Compare

your locker or cupboard with the drawings below to assess your personal

installation situation.
