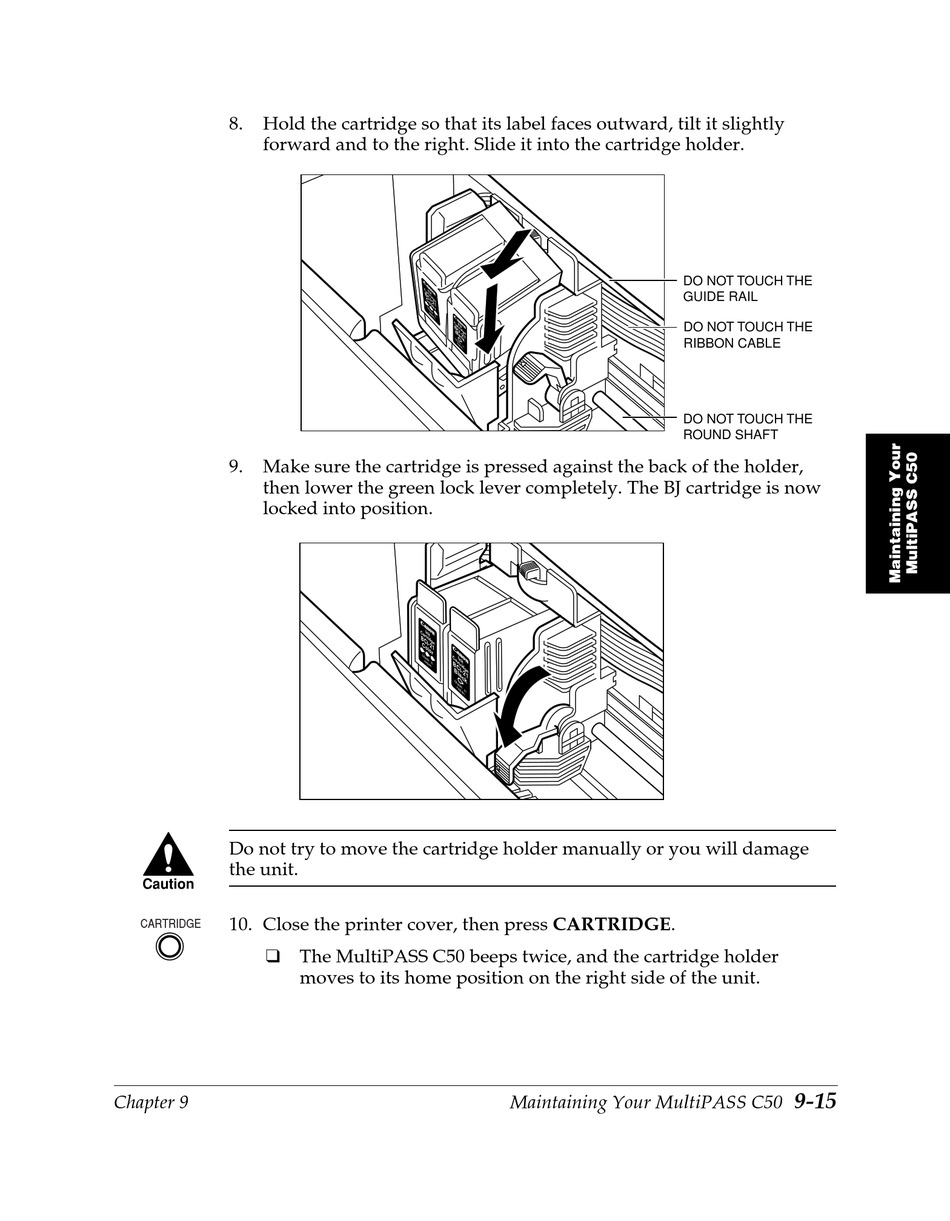

8. Hold the cartridge so that its label faces outward, tilt it slightly
forward and to the right. Slide it into the cartridge holder.
9. Make sure the cartridge is pressed against the back of the holder,
then lower the green lock lever completely. The BJ cartridge is now
locked into position.
C
Do not try to move the cartridge holder manually or you will damage
the unit.
10. Close the printer cover, then press CARTRIDGE.
CARTRIDGE
Chapter 9
C a I n
k
r t r
B C
i d
g e
l - 2
C o
1
l o
r
M a
C
I n
d e
a r
J a k
B
p a i n t r
i d
n C
g e
B l - 2
l a
1
c k
M
a d
J a e
p a i n
n
The MultiPASS C50 beeps twice, and the cartridge holder
moves to its home position on the right side of the unit.
DO NOT TOUCH THE
GUIDE RAIL
DO NOT TOUCH THE
RIBBON CABLE
DO NOT TOUCH THE
ROUND SHAFT
Maintaining Your MultiPASS C50
9-15
