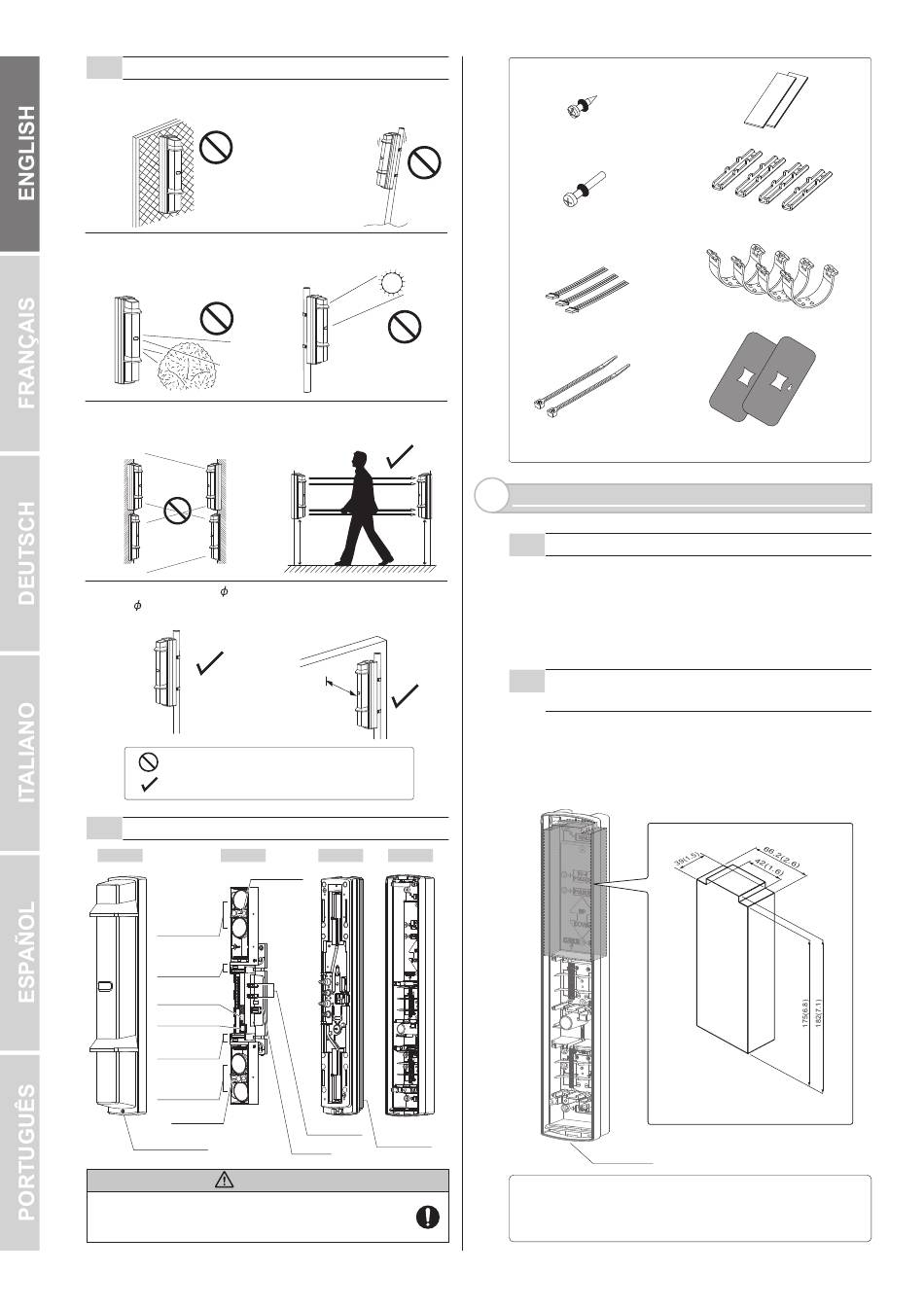

1-2 PRECAUTIONS

Do not install the unit on an
unstable surface.
Do not install the unit in trees,
leaves, or other objects that
may swing in the wind and
block the beam.
Do not allow the infrared beam
from a different model to reach
the receiver.
Receiver
Transmitter
Receiver Transmitter
(another (another
detector) detector)
The pole size should be 34 -
48 mm ( 1.34" - 1.89").
This symbol indicates prohibition.
This symbol indicates recommendation.

1-3 PARTS IDENTIFICATION

Cover Main unit
Viewfinder
Optical lens
Optical
alignment dial
Tamper
lock plate
Tamper button
Optical
alignment dial
Optical lens
Viewfinder
Cover lock screw
Caution
• Be sure to install the chassis, waterproof packing and
back box altogether. Not doing so may compromise
IP rate of this product.
Do not install the pole in a
location where sufficient stability
can not be ensured.
Do not install the receiver in a
location where it is exposed to
direct sunlight.
Install the unit at a height where
an object can be detected
without fail.
Install the unit at least 1 m (3.3
ft.) away from the wall or fence
that may be running parallel to
the beam.
1 m (3.3 ft.)
Chassis Back box
Monitor jack
Waterproof
packing
Dip SW
EN-2
Accessories>>
4×20 self tapping for wall mounting
(with rubber washer): 12
M4×30 screws for pole mounting
(with rubber washer): 8
Cables: 3
Banding bands: 2
2

PREPARATIONS

2-1 ORDERING DETECTOR BATTERIES

Recommended batteries: Two LSH20 batteries manufactured by
SAFT (can be added up to four batteries.)
For information about batteries, visit the following website and
contact your local SAFT sales representative.
http://www.saftbatteries.com/Contacts/tabid/72/FP/9/FROM/PROD
UIT/Default.aspx
2-2 CHECKING THE WIRELESS
TRANSMITTER SIZE
Use two wireless transmitters for each receivers and transmitters of
the detector. When wireless transmitters with two or more inputs are
available, use one in each transmitter and receiver of tne detector.
The following figure shows the dimensions of the enclosure that will
house the wireless transmitter.
Back box
Note>>
• Be sure to monitor the alarm and low battery outputs.
• To monitor the tamper output, include a wireless transmitter
supporting three or more inputs into the system.
Velcro tape: 2 sets
Pole brackets
(with double-sided tape): 4
U-brackets: 4
Beam blocking plate: 2
(attached on the back of the cover)
Unit: mm (inch)
