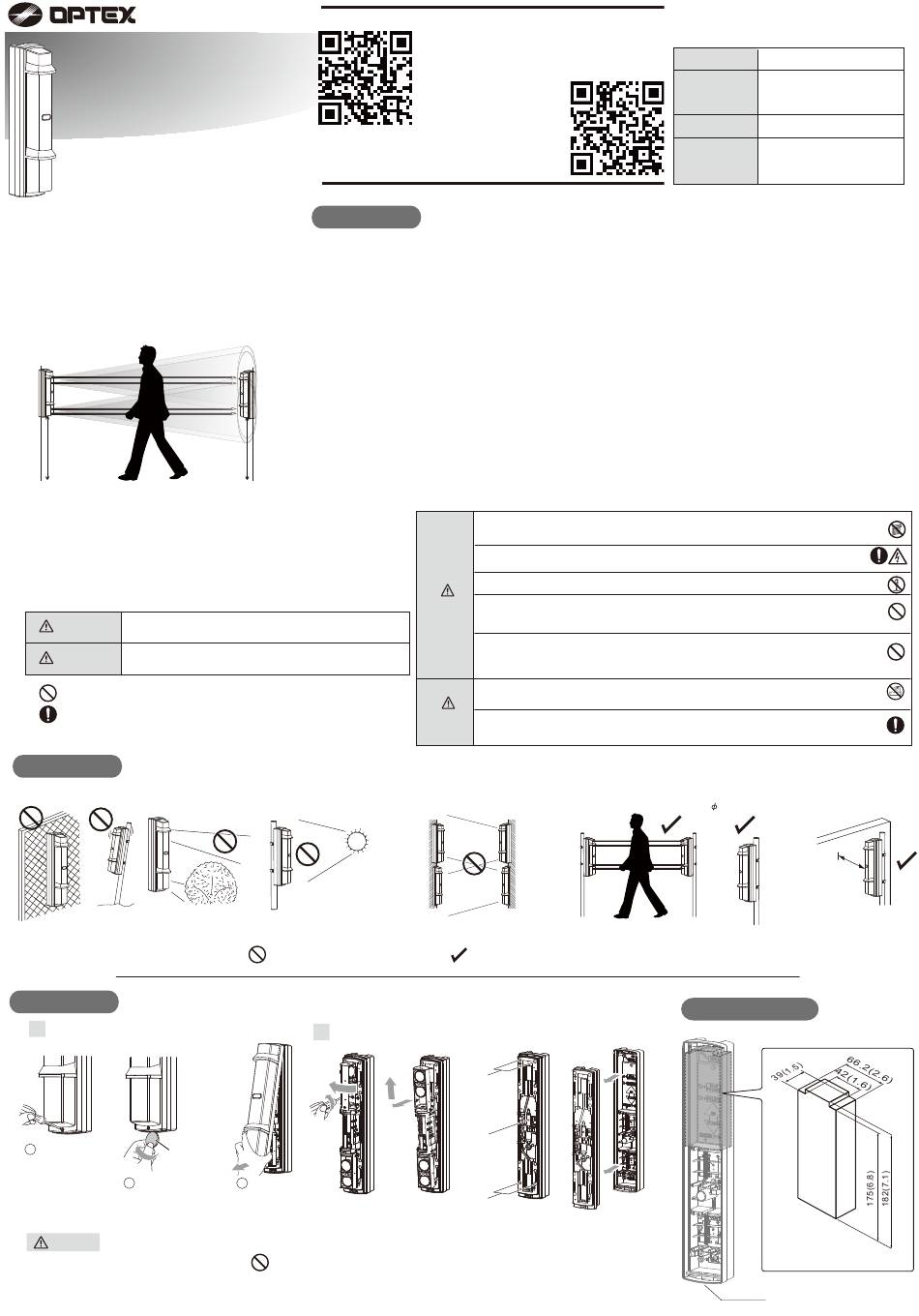

BATTERY OPERATED
BATTERY OPERATED
PHOTOELECTRIC DETECTOR
PHOTOELECTRIC DETECTOR
Smart Line series
Smart Line series
A photoelectric detector consists of an infrared light
source that generates IR(Infrared) beams, and an IR
receiver that detects the IR beams. The transmitter
and receiver are installed on opposite sides of the
area to be monitored. The receiver detects when the
IR beams are physically interrupted by an intruder,
and sends an alarm signal to a control panel.
Transmitter
• Read this instruction manual carefully prior to installation.
• After reading, store this manual carefully in an easily accessible place for reference.
• This manual uses the following warning indications for correct use of the product, harm to
you or other people and damage to your assets, which are described below. Be sure to
understand the description before reading the rest of this manual.
Failure to follow the instructions provided with this indication and
Warning
improper handling may cause death or serious injury.
Failure to follow the instructions provided with this indication and
Caution
improper handling may cause injury and/or property damage.
This symbol indicates prohibition.
The specific prohibited action is provided in and/or around the figure.
This symbol requires an action or gives an instruction.
Precautions
Unstable installation
Swing/block the beam
Preparation
1
Remove the cover.
1
Loosen the
A coin
cover lock screw.
(Not included)
Twist it lightly.
2
Caution
Do not expose to direct sunlight that may damage
the optics during installation.
Fully detailed and alternative language versions available online
SL-350QFRi
https://navi.optex.net/manual/08925/
Features
• Battery-operated detector
- Battery life: Transmitter Approx. 4 years (2 in the transmitter)
(when using LSH20 (3.6V, 13Ah) batteries manufactures by SAFT)
- Up to 8 batteries (4 in the transmitter, 4 in the receiver)
(normal operation requires 2 batteries)
- Battery saving function
- Intermittent output function
- Spacious back box for numerous wireless transmitters
• Quad high power beams
• D.Q. circuit (environmental disqualification)
[ SL-350QFRi ]
• Prewiring ; Battery operated photoelectric detector & wireless transmitter
- You need to prepare just batteries, and easy to layout you wireless system
Receiver
Direct sunlight
Crosstalk
Receiver
Receiver
(different
[Receiver]
model)
This symbol indicates prohibition.
2
Remove the main unit and the chassis from the backbox.
1.
3.
2.
3
Pull
[1] [2] Turn the optical unit 90 degrees and loosen the screws (both sides).
[3] [4] Pull the upper part of main unit, and raise it to remove.
[5] [6] Loosen the screws and remove the chassis.
SL-350QFR/SL-350QNR
(various language)
https://navi.optex.net/manual/08806/
Visit the Web site to find
full detailed instructions.
(English)
Receiver Approx. 5 years (2 in the receiver)
Do not use the product for purposes other than the detection of moving objects such as people
and vehicles. Do not use the product to activate a shutter, etc., which may cause an accident.
Do not touch the unit base or power terminals of the product with a wet hand (do not touch
when the product is wet with rain, etc.). It may cause electric shock.
Never attempt to disassemble or repair the product. It may cause fire or damage to the devices.
Do not use batteries that have different levels of power remaining (i.e., new and used batteries).
Warning
Not observing the above may result in an explosion, leakage of electrolyte, emission of toxic
gases or other outcomes that may be harmful to people and property.
[Handling of Batteries]
Do not recharge, short circuit, crush, disassemble, exceed heat above 100°C (212°F),
incinerate, or expose contents to water. Do not solder directly to the cell.
Not observing the above may result in fire, explosion or severe burn hazard.
Do not pour water over the product with a bucket, hose, etc. The water may enter, which may
cause damage to the devices.
Caution
Clean and check the product periodically for safe use. If any problem is found, do not
attempt to use the product as it is and have the product repaired by a professional
engineer or electrician.
Transmitter
Transmitter
(different
model)
This symbol indicates recommendation.
loosen
5.
4.
loosen
loosen
- 1 -
INSTALLATION INSTRUCTIONS
Model
SL-350QFR
SL-350QNR
SL-350QFRi SL-350QFR + EN1941
• Smart design
- Slim body design
- Easy-to-see vivid interior color for optical alignment
- IP65 waterproof structure
• Viewfinder with 2X magnification
• Beam interruption adjustment function
• 4 channel beam frequency selector
(SL-350QFR/SL-350QFRi)
• Tamper function
• LED indicator for an easy alignment
• Various options
( ABC-4, BC-4, BCU-5, PSC-4, EC-4 )
Pole size
Appropriate height
34 - 48 mm
Transmitter
Receiver
Transmitter size
6.
Back box
No.59-3426-0 2307-25
Detection range
100 m/350 ft.
4 selectable beam frequencies.
100 m/350 ft.
with wireless transmitter
pre-wiring in the factory.
Distance
At least 1 m
Unit: mm (inch)
