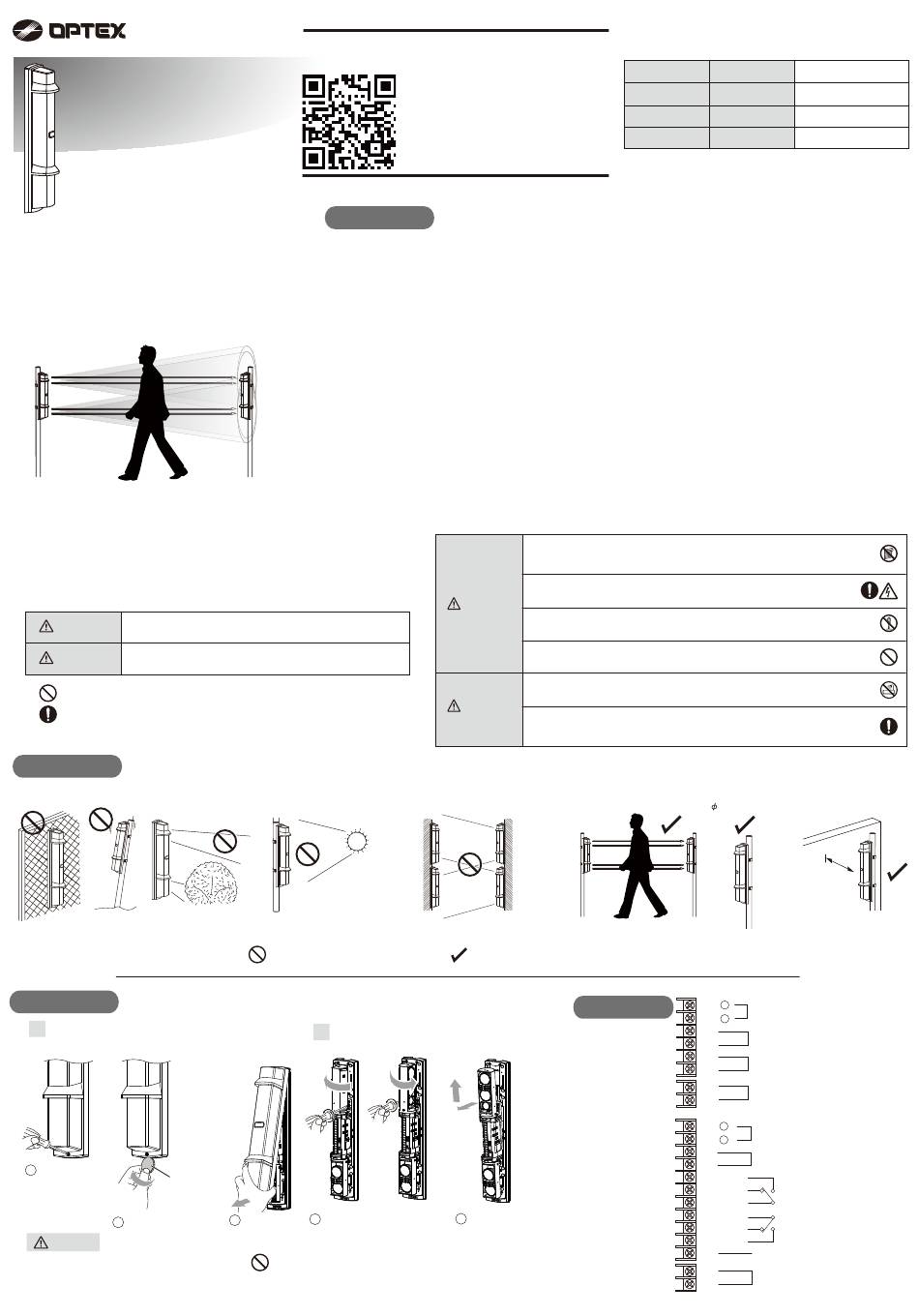

Optex Smart Line Series Installation Instructions

PHOTOELECTRIC DETECTOR
PHOTOELECTRIC DETECTOR

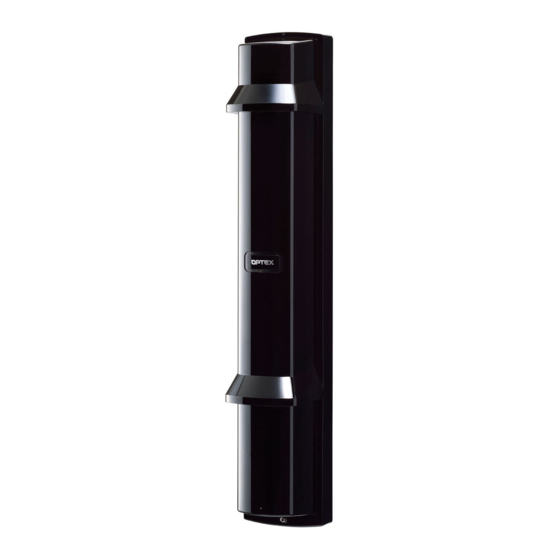

Smart Line series
Smart Line series
A photoelectric detector consists of an infrared light
source that generates IR(Infrared) beams, and an IR
receiver that detects the IR beams. The transmitter
and receiver are installed on opposite sides of the
area to be monitored. The receiver detects when the
IR beams are physically interrupted by an intruder,
and sends an alarm signal to a control panel.
Transmitter
• Read this instruction manual carefully prior to installation.
• After reading, store this manual carefully in an easily accessible place for reference.
• This manual uses the following warning indications for correct use of the product, harm to
you or other people and damage to your assets, which are described below. Be sure to
understand the description before reading the rest of this manual.
Failure to follow the instructions provided with this indication and
Warning
improper handling may cause death or serious injury.
Failure to follow the instructions provided with this indication and
Caution
improper handling may cause injury and/or property damage.
This symbol indicates prohibition.
The specific prohibited action is provided in and/or around the figure.
This symbol requires an action or gives an instruction.
Precautions
Unstable installation
Swing/block the beam
Preparation
1
Remove the cover.
1
Loosen the
cover lock screw.
A coin
(Not included)
Twist it lightly.
2
Caution
Do not expose to direct sunlight that may damage
the optics during installation.
Fully detailed and alternative language versions
available online
™
™
Features
• Quad high power beams
• Double modulated beam
• 4 channel beam frequency selector
• Smart design
- Slim body design
- Easy-to-see vivid interior color for optical alignment
- IP65*
• Alignment level indicator
• Viewfinder with 2X magnification
• Various options
( HU-3*
[ SL-QDM only ]
• Auto Transmit Power Control (A.T.P.C*
• Integrated Alignment Status Communication (I.A.S.C*
Receiver
• Re-transmitting circuit function
Direct sunlight
[Receiver]
This symbol indicates prohibition.
2
Remove the main unit from the chassis.
1
2
1 Turn the optical unit 90
3 Pull
degrees and loosen the
screws (both sides).
https://navi.optex.net/manual/08811/
Visit the Web site to find various language
versions with full detailed instructions.
waterproof structure
1
, ABC-4* , BC-4* , CBR-4, PSC-4*
1 1 1
) to optimize the beam power
2
Do not use the product for purposes other than the detection of moving
objects such as people and vehicles. Do not use the product to activate
a shutter, etc., which may cause an accident.
Do not touch the unit base or power terminals of the product with a wet
hand (do not touch when the product is wet with rain, etc.). It may cause
Warning
electric shock.
Never attempt to disassemble or repair the product. It may cause fire or
damage to the devices.
Do not exceed the voltage or current rating specified for any of the terminals
during installation, doing so may cause fire or damage to the devices.
Do not pour water over the product with a bucket, hose, etc. The water
may enter, which may cause damage to the devices.
Caution
Clean and check the product periodically for safe use. If any problem is
found, do not attempt to use the product as it is and have the product
repaired by a professional engineer or electrician.
Crosstalk
Receiver
Transmitter
Receiver Transmitter
(different (different
model) model)
This symbol indicates recommendation.
3
6
4
5
Pull the upper part of
2
main unit, and raise it
to remove.
- 1 -
INSTALLATION INSTRUCTIONS
Advanced
SL-200QDP
SL-200QDM
SL-350QDP
SL-350QDM
SL-650QDM SL-650QDP
• Beam interruption adjustment function
• D.Q. circuit (environmental disqualification)
• Tamper function
• Beam power control selector
• Alarm memory
• Sound assist function
- Optical alignment
- Beam reception status
- Walk test
• UL/c-UL Listed
)
1
) to communicate the transmitter and receiver
2
*1 not evaluated by UL
*2 not require any additional tool
Pole size
Appropriate height
Transmitter
Receiver
Terminal
(1) +
(2) -
(3)
(4)
<Transmitter>
(5)
(6)
(7)
(8)
(1) +
(2) -
(3)
(4)
<Receiver>
(5) N.O.
(6) N.C.
(7) COM.
(8) COM.
(9) N.C.
(10) N.O.
(11)
(12)
(13)
No.59-3424-0 2307-25
Detection range
Standard
60 m/200 ft.
100 m/350 ft.
200 m/650 ft.
Distance
34 - 48 mm
At least 1 m
POWER INPUT
10.5 - 30 V DC [ Normal ]
SPARE
ALARM INPUT (SL-QDM only)
TAMPER OUTPUT (N.C.)
POWER INPUT
10.5 - 30 V DC [ Normal ]
SPARE
D.Q. OUTPUT
ALARM OUTPUT
ALARM MEMORY INPUT
TAMPER OUTPUT (N.C.)
