Optex Smart Line SL-100 TNR Installation Instructions

BATTERY OPERATED BATTERY OPERATED
PHOTOELECTRIC DETECTOR
PHOTOELECTRIC DETECTOR
Smart Line series
Smart Line series
FEATURES
• Battery operated detector
- D size lithium battery or CR123A lithium battery (OPTION CRH-5)
• Simplified optical adjustment
- Sniper View Finder with ×2 magnification
• Avoids having to install a wireless transmitter in the photoelectric transmitter.
- IR signal transmission technology transfers the low battery signal to the receiver
• Possible to connect the power and alarm cables to both the receiver and the transmitter or either of them
- OPTION PCU-5
1
INTRODUCTION
1-1 BEFORE YOUR OPERATION
• Read this instruction manual carefully prior to installation.
• After reading, store this manual carefully in an easily accessible place for reference.
• This manual uses the following warning indications for correct use of the product, harm to you
or other people and damage to your assets, which are described below. Be sure to understand
the description before reading the rest of this manual.
Indicates a potentially hazardous situation which, if not avoided, will result
Warning
in minor or moderate injury, or may result in serious injury or death.
Additionally there may be significant property damage.
Indicates a potentially hazardous situation which, if not avoided, may result
Caution
in minor or moderate injury or in property damage.
This symbol indicates prohibition. The specific prohibited action is provided in and/or
around the figure.
This symbol requires an action or gives an instruction.
This symbol indicates recommendation.
1-2 PRECAUTIONS
.
Do not install the Do not install the pole
unit on an unstable in a location where
surface. sufficient stability can
not be ensured.

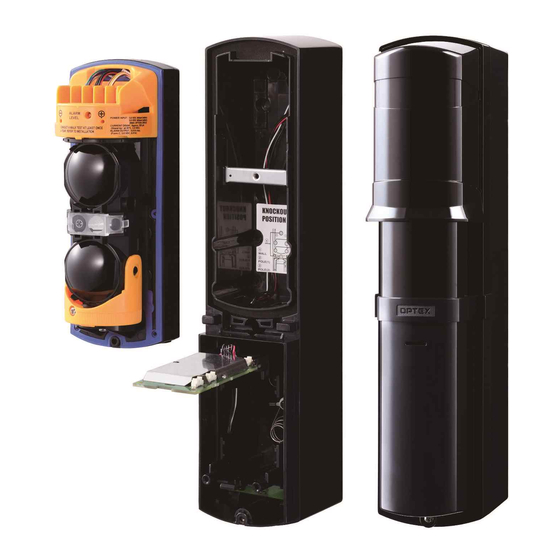

1-3 PARTS IDENTIFICATION
Main unit cover
Main unit cover
lock screw
Battery cover
lock screw
Battery cover
2
PREPARATIONS
Detector power source
Wireless
Either Transmitter or
Receiver
Wired
Both Transmitter and
Receiver
* Refer to "9 OPTIONS" on page 4.
™
™
Do not install the unit in Do not install the
trees, leaves, or other receiver in a
objects that may swing location where it is
in the wind and block exposed to direct
the beam. sunlight.
Main unit
Viewfinder
Optical lens
Optical
alignment dial
Dip SW
(Receiver only)
Battery type Wireless transmitter power source
D size
From independence battery
CR123A
From independence battery
D size
From independence battery
CR123A
From independence battery
–
From independence battery
• Long battery life
• Battery saving function
• Intermittent output function
• Slim body design
• Easy to see vivid interior color
for optical alignment
Do not use the product for purposes other than the detection of moving objects such as people and vehicles.
Do not use the product to activate a shutter, etc., which may cause an accident.
Do not touch the unit base or power terminals of the product with a wet hand (do not touch
when the product is wet with rain, etc.). It may cause electric shock.
Never attempt to disassemble or repair the product. It may cause fire or damage to the devices.
Do not use batteries that have different levels of power remaining (i.e., new and used batteries).
Not observing the above may result in an explosion, leakage of electrolyte, emission of toxic
gases or other outcomes that may be harmful to people and property.
[Handling of Batteries] Do not recharge, short circuit, crush, disassemble, exceed heat above
100°C (212°F), incinerate, or expose contents to water. Do not solder directly to the cell.
Do not pour water over the product with a bucket, hose, etc. The water may enter, which may
cause damage to the devices.
Clean and check the product periodically for safe use. If any problem is found, do not attempt to
use the product as it is and have the product repaired by a professional engineer or electrician.
Do not allow the infrared
beam from a another detector
to reach the receiver.
Receiver Transmitter
Receiver Transmitter
(another (another
detector) detector)
Back box
Main unit mounting
bracket
Wireless transmitter size
Unit: mm (inch)
D-size
From detector battery 4 pcs.
4 pcs.
From detector battery
–
–
From detector battery
2 pcs.
2 pcs.
From detector battery
–
–
From detector battery
–
–
- 1 -
INSTALLATION INSTRUCTIONS
MODEL
SL-100 TNR
SL-200 TNR
• IP65 waterproof structure
• Tamper function
• Indicator LED for an easy alignment
• Various options (Refer to page 4.)
(BCU-5, CRH-5, PCU-5)
Warning
Caution
The pole size should be
Install the unit at a height
43 to 48 mm dia.
where an object can be
(1.69 to 1.89 inch dia.).
detected without fail.
Accessories>>
4×20 self tapping for wall mounting Velcro tape: 1 set
(with rubber washer): 4
M4×16 screws for pole mounting
(with rubber washer): 4
Pole brackets: 2
BATTERY
CR123A For Wireless transmitter
– No
– Need
16 pcs. No
16 pcs. Need
– No
– Need
8 pcs. No
8 pcs. Need
– No
–
Need
No. 59-2032-2
DETECTION RANGE
30m/100ft.
60m/200ft.
Install the unit at least 1
m (3.3 ft.) away from the
wall or fence that may be
running parallel to the
beam.
1 m (3.3 ft.)
Cables: 3
U-brackets: 2
OPTION*
CRH-5 BCU-5 PCU-5
– 1 set –
– – –
2 sets 1 set –
2 sets – –
– 1 set 1 set
– – 1 set
1 set 1 set 1 set
1 set – 1 set
– 1 set 2 sets
–
– 2 sets
